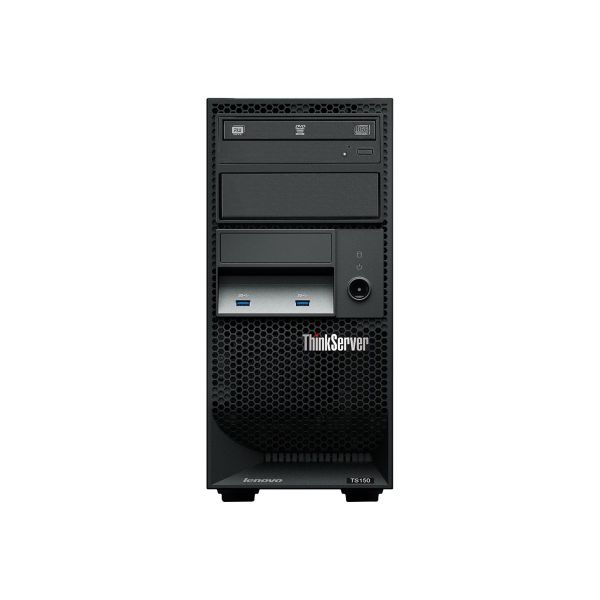

Lenovo ThinkServer TS150 70LW

Be the first to review this product

Availability: Out of stock

SKU

70LWS00F00

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkServer TS150 is the perfect first server for small and medium businesses, remote or branch offices, and retail environments. Its features enable you to run larger workloads up to 20% faster than before, and even virtual machines (VMs) for more efficient server usage. Intel Active Management Technology (AMT) built into the TS150 offers easy-to-use, industry-standard management tools for remote monitoring, updates, and repairs. The TS150 saves you money and helps the environment with energy-efficient processors and DDR4 memory, and 65% recyclable materials. The office-friendly chassis is small, whisper-quiet and fits under or beside a desk.

Specifications

General Information
Category	Servers
Description	Lenovo ThinkServer TS150 70LW - Server - tower 4U - 1-way - 1 x Xeon E3-1280V5 / up to 4 GHz - RAM 64 GB - SSD 2 x 480 GB, HDD 2 x 1 TB - DVD - NVS 315 - Gigabit Ethernet - monitor: none
Manufacturer	Lenovo
UNSPSC	43211501
Main Specifications
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	43.1 cm
Dimensions & Weight / Height	37.5 cm
Dimensions & Weight / Weight	12.5 kg
Dimensions & Weight / Width	17.5 cm
Display / Type	None.
Hard Drive / Capacity	480 GB
Header / Brand	Lenovo
Mainboard / Chipset Type	Intel C236
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	DVD
Optical Storage / Type	DVD-ROM
Packaged Quantity	1
Processor / Clock Speed	3.7 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	Quad-Core
Processor / Processor Number	E3-1280V5
Processor / Type	Xeon
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	2133 MHz
RAM / Technology	DDR4 SDRAM
System / Hard Drive Capacity	2.96 TB
System / Type	Server
Video Output / Graphics Processor	NVIDIA NVS 315
Cache Memory
Cache Per Processor	8 MB
Installed Size	8 MB
Dimensions & Weight
Depth	43.1 cm
Height	37.5 cm
Weight	12.5 kg
Width	17.5 cm
Environmental Parameters
Humidity Range Operating	8 - 80% (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	2 external 5.25" 2 internal 3.5"
Interfaces	8 x USB 3.0 (2 in front) 1 x microphone 1 x serial 2 x LAN (Gigabit Ethernet) 1 x audio line-in 1 x audio line-out 1 x DMS-59
Slots	1 (total) / 0 (free) x CPU 4 (total) / 0 (free) x DIMM 288-pin 1 (total) / 0 (free) x PCIe 3.0 x16 - half-length, full-height 2 (total) / 2 (free) x PCIe 3.0 x1 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x4 mode)
General
Embedded Security	Trusted Platform Module (TPM 1.2) Security Chip
Product Form Factor	Tower - 4U
Server Scalability	1-way
Type	Server
Graphics Controller
Graphics Processor	NVIDIA NVS 315
Video Interfaces	VGA, DVI
Video Memory	1 GB
Hard Drive
Capacity	2 x 480 GB
Interface Type	SATA
Type	SSD
Hard Drive (2nd)
Capacity	2 x 1 TB
Interface Class	Serial ATA
Spindle Speed	7200 rpm
Type	HDD
Miscellaneous
Cables Included	DMS-59 to 2 x DVI adapter DMS-59 to 2 x VGA adapter
Compliant Standards	RoHS, FCC Part 15 A, VCCI Class A, Directive 2004/104/EC, EN 55022 Class A
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
Monitor
Monitor Type	None.
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM, I210-T1
Features	Wake on LAN (WoL)
Optical Storage
Type	DVD-ROM DVD
Power
Device Type	Power supply
Power Provided	400 Watt
Voltage Required	AC 120/230 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel C236
Clock Speed	3.7 GHz
CPU	Intel Xeon E3-1280V5
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	4 GHz
Number of Cores	Quad-Core
Processor Main Features	Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2
RAM
Configuration Features	4 x 16 GB
Effective Memory Speed	2133 MT/s
Features	Unbuffered, dual channel memory architecture
Form Factor	DIMM 288-pin
Installed Size	64 GB (installed) / 64 GB (max)
Slots	4 (total) / 0 (empty)
Technology	DDR4 SDRAM - ECC
Storage Controller
Controller Interface Type	SATA 6Gb/s / SAS 6Gb/s
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10
Storage Controller Name	LSI 9340-8i
Type	RAID
