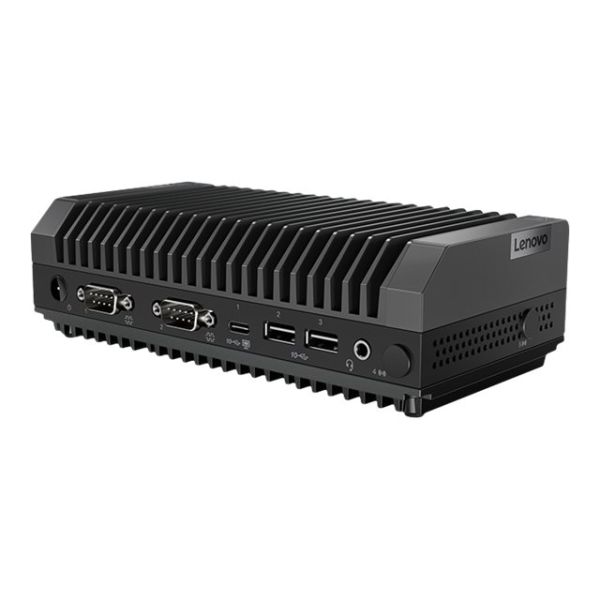

Lenovo ThinkEdge SE30 11NA

Be the first to review this product

Availability: Out of stock

SKU

11NA000HUS

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

ThinkEdge SE30, Intel Core i5-1145GRE vPro (1.50GHz, 8MB), Windows 10 IoT Enterprise 64, 16.0GB, 1x1TB SSD M.2 2230 PCIe Gen3 Opal, Intel Iris Xe Graphics,BT 5.1 or above,Intel 9260 AC, 3 Year On-site, Wireless, Calliope, Black with Mouse-English (US).

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkEdge SE30 11NA - USFF Core i5 1145GRE / up to 4.1 GHz - vPro - RAM 16 GB - SSD 1 TB - NVMe - Intel Iris Xe Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet - Win 10 IoT Enterprise - monitor: none - keyboard: US - black - Lenovo TopSeller - with External I/O Box
Manufacturer	Lenovo
MSRP	$1,639.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Ultra small form factor
Dimensions & Weight / Depth	8.8 cm
Dimensions & Weight / Height	5.15 cm
Dimensions & Weight / Weight	1.02 kg
Dimensions & Weight / Width	17.9 cm
Display / Type	None.
Hard Drive / Capacity	1 TB
Hard Drive / Interface	PCI Express 3.0
Hard Drive / Interface Type	PCI Express 3.0
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	2.5 Gigabit Ethernet Bluetooth 5.1 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac Bluetooth 5.1
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 10 IoT Enterprise
Packaged Quantity	1
Processor / Clock Speed	1.5 GHz
Processor / Generation	11
Processor / Manufacturer	Intel
Processor / Number of Cores	Quad-Core
Processor / Processor Number	I5-1145GRE
Processor / Type	Core i5
RAM / Data Integrity Check	IB-ECC
RAM / Memory Speed	3200 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	1 TB
System / Platform Technology	Intel vPro Platform
System / Type	Personal computer
Video Output / Graphics Processor	Intel Iris Xe Graphics
Cache Memory
Cache Per Processor	8 MB
Installed Size	8 MB
Dimensions & Weight
Depth	8.8 cm
Dimensions & Weight Details	17.9 cm - 8.8 cm - 5.15 cm - 1.02 kg - PC 17.8 cm - 8.8 cm - 2.56 cm - 499 g - I/O box
Height	5.15 cm
Weight	1.02 kg
Width	17.9 cm
Environmental Parameters
Max Operating Temperature	60 °C
Min Operating Temperature	-20 °C
Expansion / Connectivity
Interfaces	1 x USB-C 3.2 Gen 2 (1 in front) 2 x serial 3 x USB 3.2 Gen 2 (2 front, 1 rear) 1 x headphones/microphone (1 in front) 1 x HDMI (with adapter) 1 x Thunderbolt 4/USB4 1 x LAN (Gigabit Ethernet) 1 x LAN (2.5Gigabit Ethernet) 2 x serial (on expansion box) 2 x LAN (Gigabit Ethernet) (on expansion box) 1 x USB-C 3.2 Gen 1 (on expansion box) 1 x DIO (on expansion box) 1 x DisplayPort 1.4a
Slots	2 (total) / 1 (free) x M.2 Card - 2230
General
Bundled with	External I/O Box
Color	Black
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Platform Technology	Intel vPro Platform
Product Form Factor	USFF
Type	Personal computer
Graphics Controller
Graphics Processor	Intel Iris Xe Graphics shared video memory (UMA)
Max Monitors Supported	3
Video Interfaces	DisplayPort, USB-C, Thunderbolt
Hard Drive
Capacity	1 x 1 TB
Features	NVM Express (NVMe)
Interface Type	PCI Express 3.0
Type	SSD - M.2 2230
Input Device
Type	Keyboard, no mouse
Keyboard
Connectivity	Wireless
Keyboard Name	Lenovo Calliope Keyboard
Localization & Layout	US
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site
Miscellaneous
Cables Included	USB-C to HDMI cable
Compliant Standards	FCC Class B certified, UL, BSMI, CB, EMC, RoHS, ETL, WEEE, Energy-Related Products (ErP) Lot 6, REACH, PCF, low halogen, TED
Included Accessories	DIN-rail bracket
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
Monitor
Monitor Type	None.
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.1
Ethernet Controller	Realtek RTL8111KI-CG, Intel I225-IT
Features	Wake on LAN (WoL), dual stream (2x2), Intel Active Management Technology (AMT) 15
Wireless LAN Supported	Yes
Wireless NIC	Intel Wireless-AC 9260
Operating System / Software
OS Provided	Windows 10 IoT Enterprise English
Optical Storage
Type	No optical drive
Power
Device Type	Power adapter
Efficiency	89%
Power Provided	65 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Clock Speed	1.5 GHz
CPU	Intel Core i5 (11th Gen) 1145GRE
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	4.1 GHz
Number of Cores	Quad-Core
RAM
Configuration Features	Provided memory is soldered
Effective Memory Speed	3200 MT/s
Features	Dual channel memory architecture
Installed Size	16 GB
Technology	DDR4 SDRAM - IB-ECC
Storage Controller
RAID Level	RAID 0, RAID 1
