Lenovo ThinkEdge SE10 12NH

Be the first to review this product

Availability: Out of stock

SKU

12NH000KUT

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

This next-level AI-edge platform is a powerful addition to an organization's IoT Ecosystem and can modernize its surveillance system. It's designed to empower enterprises and transform your normal IP camera into a computervision (CV)-enabled surveillance system. There are plenty of ports and wireless connectivity options to connect everything from sensors, IoT endpoints, and legacy devices to cloud-based servers.

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkEdge SE10 12NH - USFF Atom x6214RE - RAM 32 GB - SSD 1 TB - TCG Opal Encryption 2, NVMe - UHD Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet - Win 10 IoT Enterprise 2021 LTSC - monitor: none - black - Lenovo TopSeller
Manufacturer	Lenovo
MSRP	$1,839.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Ultra small form factor
Dimensions & Weight / Depth	13.5 cm
Dimensions & Weight / Height	3.45 cm
Dimensions & Weight / Weight	1.5 kg
Dimensions & Weight / Width	17.9 cm
Display / Type	None.
Hard Drive / Capacity	1 TB
Hard Drive / Interface	PCI Express 4.0 x4
Hard Drive / Interface Type	PCI Express 4.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	2.5 Gigabit Ethernet 802.11ax Bluetooth 5.1 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax Bluetooth 5.1
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 10 IoT Enterprise 2021 LTSC
Packaged Quantity	1
Processor / Clock Speed	1.4 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	Dual-Core
Processor / Processor Number	x6214RE
Processor / Type	Atom
RAM / Data Integrity Check	IB-ECC
RAM / Form Factor	SO-DIMM 260-pin
RAM / Memory Speed	3200 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	1 TB
System / Type	Personal computer
Video Output / Graphics Processor	Intel UHD Graphics
Cache Memory
Cache Per Processor	1.5 MB
Installed Size	1.5 MB
Card Reader
Supported Flash Memory Cards	SD Memory Card
Type	Card reader
Dimensions & Weight
Depth	13.5 cm
Height	3.45 cm
Weight	1.5 kg
Width	17.9 cm
Environmental Parameters
Humidity Range Operating	95% (non-condensing)
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
Expansion / Connectivity

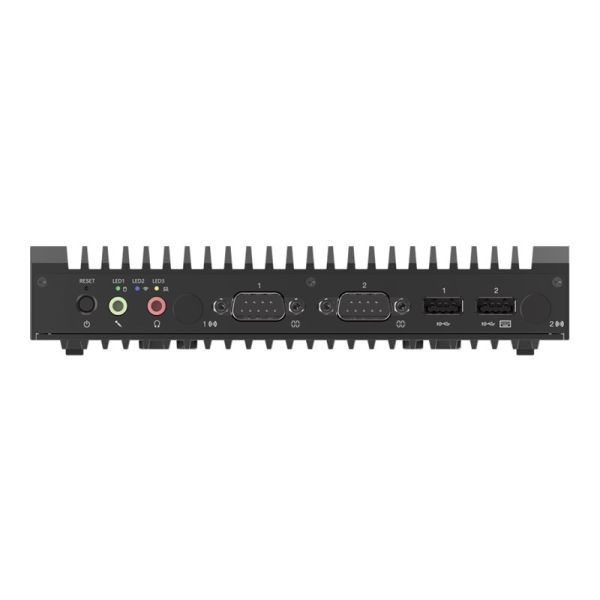

Interfaces	2 x serial (2 in front) 2 x USB 3.2 Gen 2 (2 in front) 1 x audio line-out (1 in front) 1 x microphone (1 in front) 1 x HDMI (1 rear) 1 x DisplayPort 1.4 (1 rear) 2 x USB 2.0 (2 rear) 2 x LAN (2.5Gigabit Ethernet) (2 rear) 2 x Wi-Fi antenna - RP-SMA
Slots	1 (total) / 0 (free) x M.2 Card (for SSD) 1 (total) / 0 (free) x M.2 Card (for WLAN)
General
Color	Black
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Region: United States
Product Form Factor	USFF
Type	Personal computer
Graphics Controller
Graphics Processor	Intel UHD Graphics shared video memory (UMA)
Max Monitors Supported	2
Video Interfaces	HDMI, DisplayPort
Hard Drive
Capacity	1 x 1 TB
Features	TCG Opal Encryption 2, NVM Express (NVMe)
Interface Type	PCI Express 4.0 x4
Type	SSD - M.2 2280
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site
Miscellaneous
Compliant Standards	RoHS, WEEE, Energy-Related Products (ErP) Lot 6, REACH, low halogen, Energy-Related Products (ErP) Lot 26, TED
Included Accessories	DIN-rail bracket, IP50 dust cover kit
Manufacturer Selling Program	Lenovo TopSeller
VESA Mounting Interface	100 x 100 mm, 75 x 75 mm
Monitor
Monitor Type	None.
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.1
Ethernet Controller	Intel I225-IT
Ethernet Ports	2 x 2.5 Gigabit Ethernet
Features	Wake on LAN (WoL), dual stream (2x2)
Interface (Bus) Type	M.2 Card
Wireless LAN Supported	Yes
Wireless NIC	Intel Wi-Fi 6E AX 210
Operating System / Software
OS Provided	Windows 10 IoT Enterprise 2021 LTSC English
Optical Storage
Type	No optical drive
Power
Device Type	Power adapter
Efficiency	88%
Power Provided	65 Watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Clock Speed	1.4 GHz
CPU	Intel Atom x6214RE
CPU Qty	1
Max CPU Qty	1
Number of Cores	Dual-Core
RAM
Configuration Features	2 x 16 GB
Effective Memory Speed	3200 MT/s
Form Factor	SO-DIMM 260-pin
Installed Size	32 GB (installed) / 32 GB (max)
Slots	2 (total) / 0 (empty)
Technology	DDR4 SDRAM - IB-ECC
