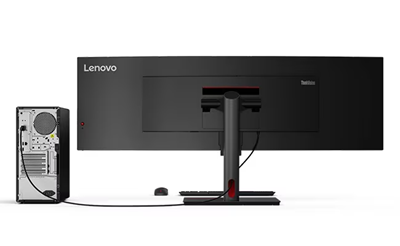

Lenovo ThinkCentre M90t Gen 5 12V2
The Lenovo ThinkCentre M90t Gen 5 desktop is engineered for professionals seeking a powerful and secure computing solution. At its core, a 20-core Intel Core i7 processor and DDR5 SDRAM technology provide the horsepower needed for demanding applications, while the PCI Express 4.0 x4 NVMe SSD offers swift storage access and boot times. Security is paramount, with features like a discrete TPM 2.0 chip and Intel vPro Enterprise technology ensuring data protection and remote management capabilities. Connectivity options are abundant, including USB-C 3.2 Gen 2, USB 3.2 Gen 1 and Gen 2 ports, and dual DisplayPort 1.4a and HDMI outputs, facilitating easy connection to peripherals and multiple displays. Additionally, its commitment to sustainability is evident through ENERGY STAR 8.0 certification and an EPEAT Gold rating, making it an eco-friendly choice for environmentally conscious users. Whether for intensive computing tasks, secure business operations, or multimedia projects, the Lenovo ThinkCentre M90t Gen 5 stands ready to meet the challenge.
- Lenovo ThinkCentre M90t Gen 5 (Intel) Tower: Cutting-edge tech solutions for today’s business challenges | Built-in AI features for data analysis, project management tasks | Customizable to boost reliability now and in the future | Unleash creativity with graphics upgrade support | Improved connectivity to help you stay productive
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Lenovo ThinkCentre M90t Gen 5 12V2 - Tower Core i7 i7-14700 / up to 5.4 GHz - vPro Enterprise - RAM 32 GB - SSD 512 GB - TCG Opal Encryption 2, NVMe - DVD-Writer - UHD Graphics 770 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: English - black - Lenovo TopSeller |
| Manufacturer | Lenovo |
| MSRP | $2,449.00 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Tower |
| Dimensions & Weight / Depth | 29.8 cm |
| Dimensions & Weight / Height | 37.6 cm |
| Dimensions & Weight / Weight | 6.5 kg |
| Dimensions & Weight / Width | 17 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Interface | PCI Express 4.0 x4 |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Header / Brand | Lenovo |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel Q670 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | DVD-Writer |
| Optical Storage / Type | DVD±RW |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.1 GHz |
| Processor / Generation | 14 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 20-core |
| Processor / Processor Number | I7-14700 |
| Processor / Type | Core i7 |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 4400 MHz |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Platform Technology | Intel vPro Enterprise |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel UHD Graphics 770 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 33 MB |
| Installed Size | 33 MB |
| Dimensions & Weight | |
| Depth | 29.8 cm |
| Height | 37.6 cm |
| Weight | 6.5 kg |
| Width | 17 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 39.5 cm |
| JTFpping Height | 54 cm |
| JTFpping Weight | 9.8 kg |
| JTFpping Width | 27.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Speaker |
| Color | Black |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Platform Technology | Intel vPro Enterprise |
| Product Form Factor | Tower |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 shared video memory (UMA) |
| Max Monitors Supported | 4 |
| Video Interfaces | HDMI, DisplayPort |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | TCG Opal Encryption 2, NVM Express (NVMe) |
| Interface Type | PCI Express 4.0 x4 |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | Lenovo Traditional Keyboard |
| Localization & Layout | English |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | RoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TCG Certified |
| Manufacturer Selling Program | Lenovo TopSeller |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Mouse Name | Lenovo Calliope Mouse |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), dual stream (2x2) |
| Interface (Bus) Type | M.2 Card |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Optical Storage | |
| Type | DVD±RW DVD-Writer - SATA |
| Power | |
| Device Type | Power supply |
| Efficiency | 90% |
| Power Provided | 300 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel Q670 |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| CPU | Intel Core i7 (14th Gen) i7-14700 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.4 GHz (P-core) / 4.2 GHz (E-core) |
| Number of Cores | 20-core |
| RAM | |
| Configuration Features | 2 x 16 GB |
| Effective Memory Speed | 4400 MT/s |
| Features | Unbuffered, dual channel memory architecture |
| Form Factor | DIMM 288-pin |
| Installed Size | 32 GB (installed) / 128 GB (max) |
| Slots | 4 (total) / 2 (empty) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Storage Controller (2nd) | |
| Controller Interface Type | PCI Express 4.0 x4 (NVMe) |
| Type | 1 x NVMe |
| Sustainability Information | |
| Carbon Footprint | 669 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| EPEAT Compliant | EPEAT Gold |
| PAIA Version | 1.4.0 |
| TCO Certified | TCO Certified Desktops 9 |
| Total CF/unit Standard Deviation (kg CO2e) | 102 |
