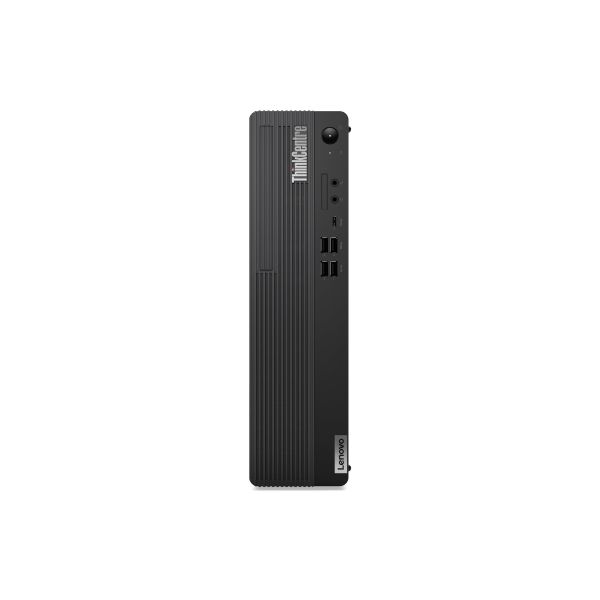

Lenovo ThinkCentre M90s Gen 5 12V4

Be the first to review this product

Availability: Out of stock

SKU

12V4000TUS

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkCentre M90s Gen 5 is designed to meet the demands of modern professionals, offering a blend of performance, connectivity, and security. At its core, a 20-core Intel Core i7 processor and DDR5 memory ensure smooth multitasking and efficient operation. Connectivity is a breeze with Bluetooth 5.3, Wi-Fi 6E, and multiple USB 3.2 ports, facilitating easy data transfer and peripheral connection. Security is paramount, with features like a discrete TPM 2.0 chip and Intel vPro technology providing robust data protection. Additionally, its energy-efficient design, certified by ENERGY STAR 8.0 and EPEAT Gold, demonstrates a commitment to environmental sustainability. Compact yet expandable, this PC is equipped with various expansion slots and bays, making it a versatile choice for any workspace.

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkCentre M90s Gen 5 12V4 - SFF Core i7 i7-14700 / up to 5.4 GHz - vPro Enterprise - RAM 32 GB - SSD 512 GB - TCG Opal Encryption 2, NVMe - DVD-Writer - Arc A310 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: English - black - Lenovo TopSeller
Manufacturer	Lenovo
MSRP	$1,699.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Small form factor
Dimensions & Weight / Depth	29.77 cm
Dimensions & Weight / Height	33.95 cm
Dimensions & Weight / Weight	5.3 kg
Dimensions & Weight / Width	9.25 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Hard Drive / Interface	PCI Express 4.0 x4
Hard Drive / Interface Type	PCI Express 4.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel Q670
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth 5.3 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6E) IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax (Wi-Fi 6E) Bluetooth 5.3
Optical Storage / Drive Type	DVD-Writer
Optical Storage / Type	DVD±RW
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.1 GHz
Processor / Generation	14
Processor / Manufacturer	Intel
Processor / Number of Cores	20-core
Processor / Processor Number	I7-14700
Processor / Type	Core i7
RAM / Form Factor	DIMM 288-pin
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	512 GB
System / Platform Technology	Intel vPro Enterprise
System / Type	Personal computer
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	Intel Arc A310 / Intel UHD Graphics 770
Audio Output
Compliant Standards	High Definition Audio
Speakers Included	1 x tweeter
Cache Memory
Cache Per Processor	33 MB
Installed Size	33 MB
Dimensions & Weight
Depth	29.77 cm
Height	33.95 cm
Weight	5.3 kg
Width	9.25 cm
Environmental Parameters
Humidity Range Operating	20 - 80%
Max Operating Temperature	35 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Bays	1 (total) / 0 (free) x external 5.25" Slim Line 1 (total) / 1 (free) x internal 3.5" 1 (total) / 1 (free) x internal 2.5"
Interfaces	6 x USB 3.2 Gen 1 (2 front, 4 rear) 1 x HDMI (1 rear) (TMDS compatible) 2 x DisplayPort 1.4a (2 rear) 1 x LAN - RJ-45 (1 rear) 1 x audio line-out (1 rear) 1 x USB-C 3.2 Gen 2 (1 front) (15 Watt charging) 2 x USB 3.2 Gen 2 (2 front) 1 x headphones/microphone (1 front) 1 x microphone (1 front)
Slots	1 PCIe 4.0 x16 - low-profile (PCIe 4.0 x4 mode) 1 PCIe 4.0 x16 - low-profile 1 PCIe 3.0 x1 - low-profile 2 M.2 Card (for SSD) 1 M.2 Card (for WLAN)
General
Built-in Devices	Speaker
Color	Black
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Platform Technology	Intel vPro Enterprise
Product Form Factor	SFF
Type	Personal computer
Graphics Controller
Graphics Processor	Intel Arc A310 / Intel UHD Graphics 770
Multi-GPU Configuration	1 single GPU card / integrated GPU
Video Memory	4 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 512 GB
Features	TCG Opal Encryption 2, NVM Express (NVMe)
Interface Type	PCI Express 4.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Traditional Keyboard
Localization & Layout	English
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site
Miscellaneous
Compliant Standards	RoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TCG Certified
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop
Monitor
Monitor Type	None.
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Features	Dual stream (2x2)
Wireless LAN Supported	Yes
Wireless NIC	Intel Wi-Fi 6E AX 211
Operating System / Software
OS Provided	Windows 11 Pro English
Optical Storage
Type	DVD±RW DVD-Writer - SATA
Power
Device Type	Power supply
Efficiency	92%
Power Provided	310 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel Q670
Clock Speed	2.1 GHz (P-core) / 1.5 GHz (E-core)
CPU	Intel Core i7 (14th Gen) i7-14700
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	5.4 GHz (P-core) / 4.2 GHz (E-core)
Number of Cores	20-core
RAM
Configuration Features	2 x 16 GB
Features	Unbuffered, dual channel memory architecture
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 128 GB (max)
Rated Memory Speed	4400 MHz
Slots	4 (total) / 2 (empty)
Technology	DDR5 SDRAM
Sustainability Information
ENERGY STAR Certified	Yes
ENERGY STAR Version	8.0
EPEAT Compliant	EPEAT Gold
TCO Certified	TCO Certified Desktops 9
