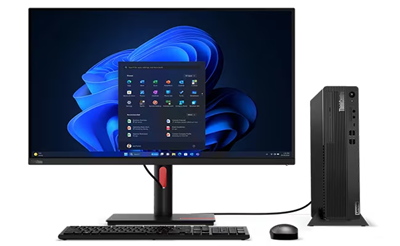

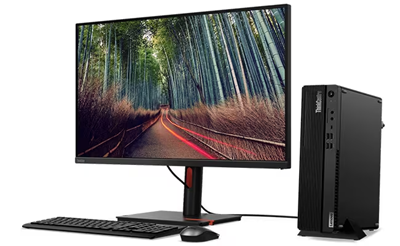

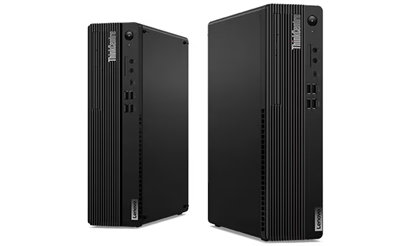

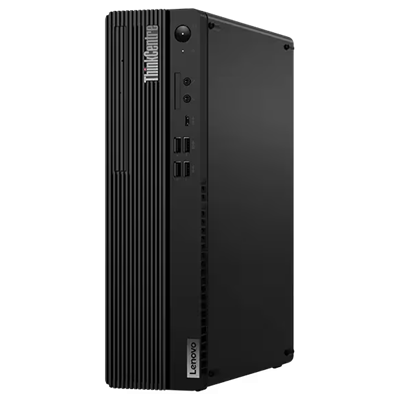

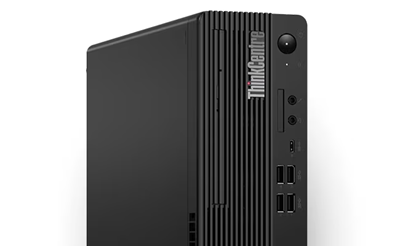

Lenovo ThinkCentre M75s Gen 5 12TA
- Lenovo ThinkCentre M75s Gen 5 (AMD) Small Form Factor: Step Up Your Business Productivity With Smart Computing | Ultra-fast and scalable small form factor PC | AI-accelerated features to optimize business productivity, CPU performance, and more | Tough ThinkShield security | Supports multiple monitors
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Lenovo ThinkCentre M75s Gen 5 12TA - SFF Ryzen 7 8700G / up to 5.1 GHz - RAM 16 GB - SSD 512 GB - DVD-Writer - Radeon 780M - Gigabit Ethernet, Bluetooth 5.3, IEEE 802.11ax (Wi-Fi 6) - Win 11 Pro - monitor: none - keyboard: English - black - Lenovo TopSeller |
| Manufacturer | Lenovo |
| MSRP | $1,379.00 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 29.77 cm |
| Dimensions & Weight / Height | 33.95 cm |
| Dimensions & Weight / Weight | 4.6 kg |
| Dimensions & Weight / Width | 9.25 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Interface | PCI Express 4.0 x4 |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Header / Brand | Lenovo |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | AMD PRO 665 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | DVD-Writer |
| Optical Storage / Type | DVD±RW |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 4.2 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | 8-core |
| Processor / Processor Number | 8700G |
| Processor / Type | Ryzen 7 |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | AMD Radeon 780M |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Speakers Included | 1 x tweeter |
| Cache Memory | |
| Cache Per Processor | 16 MB |
| Installed Size | L3 cache - 16 MB |
| Dimensions & Weight | |
| Depth | 29.77 cm |
| Height | 33.95 cm |
| Weight | 4.6 kg |
| Width | 9.25 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Speaker |
| Color | Black |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | SFF |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | AMD Radeon 780M shared video memory (UMA) |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | TCG Opal Encryption 2.0, NVM Express (NVMe) |
| Interface Type | PCI Express 4.0 x4 |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | Lenovo Traditional Keyboard |
| Localization & Layout | English |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | RoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TCG Certified |
| Manufacturer Selling Program | Lenovo TopSeller |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Mouse Name | Lenovo Calliope Mouse |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.3, IEEE 802.11ax (Wi-Fi 6) |
| Features | Dual stream (2x2) |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8852BE |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | AMD Ryzen AI |
| NPU Performance Up To (TOPS) | 16 TOPS |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Optical Storage | |
| Type | DVD±RW DVD-Writer - SATA |
| Power | |
| Device Type | Power supply |
| Efficiency | 90% |
| Power Provided | 260 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | AMD PRO 665 |
| Clock Speed | 4.2 GHz |
| CPU | AMD Ryzen 7 8700G |
| CPU Qty | 1 |
| L2 cache | 8 MB |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.1 GHz |
| Number of Cores | 8-core |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Features | Unbuffered, dual channel memory architecture |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Rated Memory Speed | 5200 MHz |
| Slots | 2 (total) / 1 (empty) |
| Technology | DDR5 SDRAM |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| EPEAT Compliant | EPEAT Gold |
| TCO Certified | TCO Certified Desktops 9 |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$199.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- SFF Ryzen 7 8700G / up to 5.1 GHz
- RAM 16 GB
- SSD 512 GB
- DVD-Writer
- Radeon 780M
