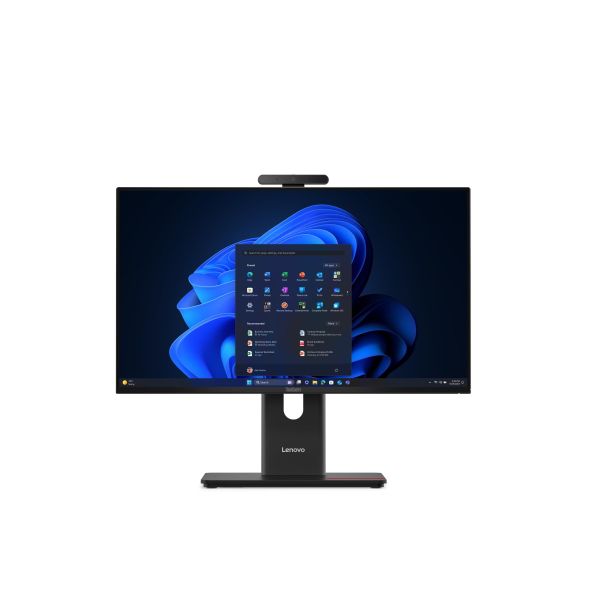

Lenovo ThinkCentre M70a Gen 6 13AY

Be the first to review this product

Availability: Out of stock

SKU

13AY0009US

UPC Code

198157007772

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Experience powerful performance with the Lenovo ThinkCentre M70a Gen 6 all-in-one computer. Featuring a 23.8-inch Full HD display, this PC delivers visuals at a native resolution of 1920 x 1080. The IPS display technology ensures color reproduction, while anti-glare and low blue light technologies enhance viewing comfort, making it ideal for extended use. Enhanced by a dual-array microphone and integrated stereo speakers, the Lenovo ThinkCentre offers an audio experience perfect for video conferencing or multimedia entertainment. Powered by the Intel Core Ultra 5 processor with 14 cores and a maximum turbo speed of 5 GHz, this device handles multiple tasks simultaneously. With 16 GB of DDR5 RAM and a 512 GB PCIe SSD, users can expect swift data access and ample storage. The inclusion of Intel Wi-Fi 6E and Bluetooth 5.3 ensures fast and reliable connectivity, keeping you connected at all times. Designed with security in mind, it features a discrete Trusted Platform Module (TPM 2.0) security chip, prioritizing data protection.

Lenovo ThinkCentre M70a Gen 6 (24" Intel): Superior AI performance with powerful processors | 23.8-inch AIO PC delivering a personalized experience with intelligent AI features | Strong security, advanced connectivity, and ample storage for multitasking

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkCentre M70a Gen 6 13AY - All-in-one with UltraFlex V Stand - Core Ultra 5 225T / up to 4.9 GHz - RAM 8 GB - SSD 256 GB - TCG Opal Encryption 2, NVMe - DVD-Writer - Intel Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: LED 23.8" 1920 x 1080 (Full HD) @ 120 Hz touchscreen - keyboard: US English - black - Lenovo TopSeller
Manufacturer	Lenovo
MSRP	$1,589.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	All-in-one
Dimensions & Weight / Depth	26.491 cm
Dimensions & Weight / Height	45.594 cm
Dimensions & Weight / Weight	7.16 kg
Dimensions & Weight / Width	53.96 cm
Display / Diagonal Size	23.8 in
Display / Diagonal Size (metric)	60.5 cm
Display / Native Resolution	1920 x 1080
Display / Type	LED
Display / Widescreen Display	Yes
Hard Drive / Capacity	256 GB
Hard Drive / Interface	PCI Express 4.0 x4
Hard Drive / Interface Type	PCI Express 4.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel Q870
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth 5.3 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6E) IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax (Wi-Fi 6E) Bluetooth 5.3
Optical Storage / Drive Type	DVD-Writer
Optical Storage / Type	DVD±RW
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Generation	Series 2
Processor / Manufacturer	Intel
Processor / Number of Cores	10-core
Processor / Processor Number	225T
Processor / Type	Core Ultra 5
RAM / Form Factor	SO-DIMM 262-pin
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	256 GB
System / Type	Personal computer
Video Output / Graphics Processor	Intel Graphics
Audio Input
Type	Dual array microphone
Audio Output
Compliant Standards	High Definition Audio
Speakers Included	2 x right / left channel
Cache Memory
Cache Per Processor	20 MB
Installed Size	20 MB
Camera
Camera	Yes
Features	Hybrid IR camera, ThinkShutter camera cover
Resolution (MP)	5 Megapixel
Dimensions & Weight
Depth	26.491 cm
Dimensions & Weight Details	53.96 cm - 26.491 cm - 45.594 cm - 7.16 kg - with stand (highest position in vertical mode) 53.96 cm - 33.345 cm - 22.41 cm - with stand (lowest position in flat mode)
Height	45.594 cm
Weight	7.16 kg
Width	53.96 cm
Expansion / Connectivity
Interfaces	3 x USB 3.2 Gen 2 (1 side, 2 rear) 1 x USB 3.2 Gen 1 (1 rear) (supports SmartPower On) 1 x USB 3.2 Gen 1 (1 rear) 1 x HDMI (1 rear) (TMDS compatible) 1 x DisplayPort 1.4a (1 rear) 1 x LAN (1 rear) 1 x USB-C 3.2 Gen 2 (1 side) (data transfer, 5V 3A charging) 1 x headphones/microphone (1 side)
Slots	2 (total) / 1 (free) x M.2 Card - 2280 (for SSD)
General
Built-in Devices	Stereo speakers
Color	Black
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	All-in-one - with UltraFlex V Stand
Type	Personal computer
Graphics Controller
Graphics Processor	Intel Graphics shared video memory (UMA) - up to 4 TOPS
Hard Drive
Capacity	1 x 256 GB
Features	TCG Opal Encryption 2, NVM Express (NVMe)
Interface Type	PCI Express 4.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Calliope Keyboard
Localization & Layout	US English
Miscellaneous
Compliant Standards	IEC 60601-1-2, RoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TUV Rheinland Flicker Free Certification, TCG Certified, TUV Rheinland Low Blue Light (Hardware Solution), UL Anti-dust, Eyesafe Certified 2.0, MIL-STD 810H, IP55 front
Included Accessories	VESA mounting kit
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
VESA Mounting Interface	VESA
Monitor
Color Gamut	99% sRGB
Diagonal Size	23.8"
Image Aspect Ratio	16:9
Image Brightness	250 cd/m²
Monitor Features	Flicker Free technology, Low Blue Light technology, Eyesafe technology
Monitor Type	LED - IPS
Native Resolution	1920 x 1080 (Full HD)
Touchscreen	Yes (10-point multi-touch)
V-Sync Rate at Max Res.	120 Hz
Widescreen Display	Yes
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Features	Dual stream (2x2)
Wireless LAN Supported	Yes
Wireless NIC	Intel Wi-Fi 6E AX 211
Neural Processor Unit (NPU)
AI Datatype Support on NPU	INT8
AI Software Frameworks Supported by NPU	DirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)	Intel AI Boost
NPU Performance Up To (TOPS)	13 TOPS
Sparsity Support	Yes
Total Processor Performance Up To (TOPS)	23 TOPS
Windows Studio Effects Support	Yes
Operating System / Software
OS Provided	Windows 11 Pro English
Optical Storage
Type	DVD±RW DVD-Writer - USB
Power
Device Type	Power adapter
Efficiency	89%
Power Provided	90 Watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel Q870
CPU	Intel Core Ultra 5 (Series 2) 225T
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	4.9 GHz
Number of Cores	10-core
RAM
Configuration Features	1 x 8 GB
Effective Memory Speed	5600 MT/s
Features	Dual channel memory architecture
Form Factor	SO-DIMM 262-pin
Installed Size	8 GB (installed) / 64 GB (max)
Slots	2 (total) / 1 (empty)
Technology	DDR5 SDRAM
Sustainability Information
ENERGY STAR Certified	Yes
ENERGY STAR Version	9.0
EPEAT Compliant	EPEAT Gold
TCO Certified	TCO Certified Edge All-in-one computers, TCO Certified, generation 10, for all-in-one PCs
