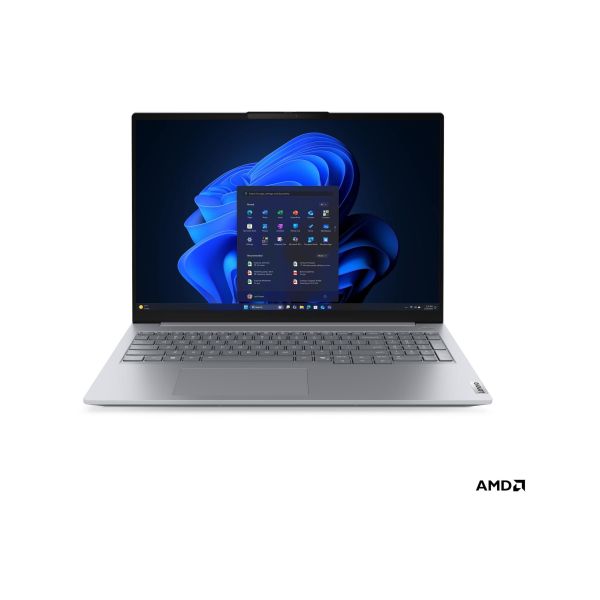

Lenovo ThinkBook 16 G9 AHP 21UT

Be the first to review this product

Availability: Out of stock

SKU

21UT0004US

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkBook 16 G9 AHP is designed to enhance productivity and creativity for professionals on the go. With a large 16-inch display featuring a resolution of 1920 x 1200 and anti-glare technology, users can enjoy bright and clear visuals even in challenging lighting conditions. The smart noise-canceling dual-array microphone combined with high-definition audio capabilities ensures sound quality for video calls and multimedia playback. Equipped with an AMD Ryzen 7 processor and 16 GB of DDR5 RAM, this notebook provides robust performance for multitasking and demanding applications. The 512 GB NVMe SSD offers ample storage and rapid data access. Additional features like the hybrid FHD/IR camera with a privacy shutter and Windows Hello enhance security while providing a convenient user experience. The MIL-STD-810H-tested build ensures durability, making it ideal for professionals seeking reliability and efficiency in their work environment.

Specifications

General Information
Category	Notebook computers
Description	Lenovo ThinkBook 16 G9 AHP 21UT - AI PC - AMD Ryzen 7 - 250 / up to 5.1 GHz - Win 11 Pro - Radeon 780M - 16 GB RAM - 512 GB SSD NVMe - 16" IPS 1920 x 1200 - Gigabit Ethernet - Wi-Fi 7, Bluetooth - dual tone arctic gray - kbd: English
Manufacturer	Lenovo
MSRP	$1,249.00
UNSPSC	43211503
Main Specifications
Audio Input / Type	Dual array microphone
Dimensions & Weight / Depth	25.35 cm
Dimensions & Weight / Height	1.75 cm
Dimensions & Weight / Weight	1.7 kg
Dimensions & Weight / Width	35.6 cm
Display / Diagonal Size	16 in
Display / Diagonal Size (metric)	40.6 cm
Display / Native Resolution	1920 x 1200
Display / Type	LED
Display / Widescreen Display	Yes
Hard Drive / Capacity	512 GB
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Input Device / Type	Keyboard Touchpad
Miscellaneous / Product Color	Gray
Networking / Data Link Protocol	Bluetooth 5.4 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6) IEEE 802.11b IEEE 802.11be (Wi-Fi 7) IEEE 802.11g IEEE 802.11n
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax/be Bluetooth 5.4
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Manufacturer	AMD
Processor / Number of Cores	8-core
Processor / Processor Number	250
Processor / Type	Ryzen 7
RAM / Form Factor	SO-DIMM 262-pin
RAM / Technology	DDR5 SDRAM
Service & Support / Type	1-year warranty
System / Hard Drive Capacity	512 GB
System / Notebook Type	Notebook
System / Security Devices	Fingerprint reader
Video Output / Graphics Processor	AMD Radeon 780M
AC Adapter
Input	AC 100-240 V (50/60 Hz)
Output	65 Watt
Audio & Video
Audio Features	Input: smart noise-cancelling
Camera	Yes - 1080p
Camera Features	Privacy shutter, Windows Hello, fixed focus, hybrid FHD/IR camera
Codec	Realtek ALC3287
Compliant Standards	High Definition Audio, Dolby Audio
Graphics Processor	AMD Radeon 780M
Max Monitors Supported	3 external monitor(s)
Sound	Stereo speakers, dual array microphone
Video System Features	Direct X 12
Battery
Capacity	48 Wh
Technology	Lithium polymer
Communications
Features	Wake-on-LAN (WOL), dual stream (2x2)
Network Interface	Gigabit Ethernet
Wireless	802.11a/b/g/n/ac/ax/be, Bluetooth 5.4
Wireless Controller	M.2 Card
Connections & Expansion
Interfaces Details	USB 3.2 Gen 1 USB 3.2 Gen 1 (Always On) 2 x USB4 (supports DisplayPort 1.4a Alt Mode) (Power Delivery) HDMI (4K support) LAN Headphone/microphone combo jack (3.5 mm)
Memory Card Reader	Yes (SD Card)
Slots	1 x M.2 (PCI Express 4.0 x4) (1 available)
Dimensions & Weight
Dimensions (WxDxH)	35.6 cm x 25.35 cm x 1.75 cm
Weight	1.7 kg
Display
Color Gamut	45% NTSC
Features	Anti-glare, Low Blue Light technology, 90% screen-to-body ratio
Horizontal Viewing Angle	+89 / -89
Image Aspect Ratio	16:10
Image Brightness	400 cd/m²
Resolution	1920 x 1200 (WUXGA)
Type	16" - IPS
V-Sync Rate at Max Res.	60 Hz
Vertical Viewing Angle	+89 / -89
Widescreen	Yes
Environmental Parameters
Humidity Range Operating	8 - 95%
Max Operating Temperature	35 °C
Min Operating Temperature	5 °C
General
AI Level	AI PC
Operating System	Windows 11 Pro - English
Product Type	Notebook
Input
Features	Multimedia control, spill-resistant, multi-touch touchpad, buttonless touchpad, precision touchpad, Copilot key
Keyboard Backlight	Yes
Keyboard Layout	English
Numeric Keypad	Yes
Type	Keyboard, touchpad
Manufacturer Warranty
Service & Support	Limited warranty - 1 year - pick-up and return
Memory
Empty Slots	1
Form Factor	SO-DIMM 262-pin
Max RAM Supported	64 GB
RAM	16 GB (1 x 16 GB)
Rated Speed	5600 MT/s
Slots Qty	2
Speed	5600 MT/s
Technology	DDR5 SDRAM
Miscellaneous
Case Material	Aluminum (top), polycarbonate ABS (bottom)
Color	Dual tone arctic gray
Compliant Standards	RoHS, Energy-Related Products (ErP) Lot 6, Energy-Related Products (ErP) Lot 26, TUV Rheinland Low Blue Light (Software Solution), TCG Certified, FIPS 140-3, FSC
Features	Administrator password, hard drive password, power-on password, MIL-STD-810H tested, Rapid Charge Pro, self-healing BIOS
Included Accessories	USB-C slim wall mount power adapter
Localization	Language: English / region: United States
Manufacturer Selling Program	Lenovo TopSeller
Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip, fingerprint reader
Security Slot Type	Kensington nano security slot
Specific Absorption Rate (SAR)	0.424 W/kg (body) 0.424 W/kg (limb)
Surface Finish	Anodizing sandblasting (top), texture (bottom)
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
Neural Processor Unit (NPU)
Neural Processor Unit (NPU)	AMD Ryzen AI
NPU Performance Up To (TOPS)	16 TOPS
Total Processor Performance Up To (TOPS)	38 TOPS
Processor / Chipset
Cache	L3 - 16 MB
CPU	AMD Ryzen 7 250 / 3.3 GHz
Features	Integrated memory controller
Max Turbo Speed	5.1 GHz
Number of Cores	8-core
Software
Software Included	Microsoft Office (Trial)
Storage
Main Storage	512 GB SSD M.2 2242 PCIe 4.0 x4 - NVM Express (NVMe)
Sustainability Information
Carbon Footprint	288 kg carbon emissions
ENERGY STAR Certified	Yes
EPEAT Compliant	EPEAT Gold
Packaging Recycled Content	Plastic-free
PAIA Version	1.5.2
Total CF/unit Standard Deviation (kg CO2e)	44
