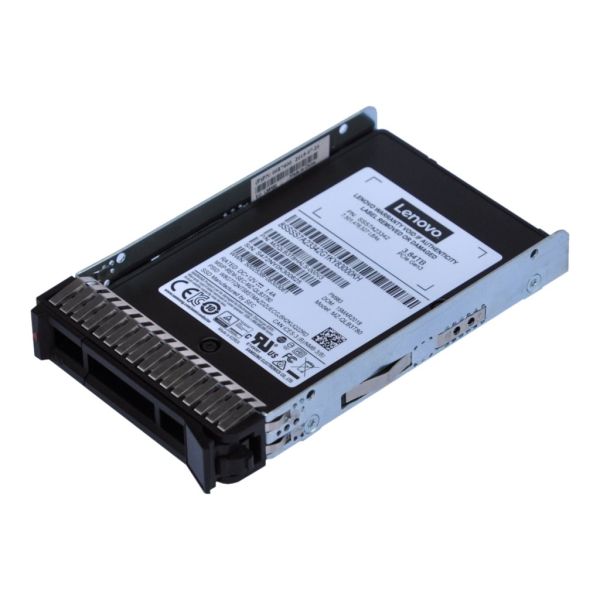

Lenovo PM983 Entry - SSD

Be the first to review this product

Availability: Out of stock

SKU

4XB7A69798

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo PM983 Entry NVMe PCIe solid-state drives (SSDs) are general-purpose yet high-performance SSDs for System x and ThinkServer systems. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.

Specifications

General Information
Category	Hard drives
Description	Lenovo PM983 Entry - SSD - 1.92 TB - hot-swap - 2.5" - U.2 PCIe 3.0 x4 (NVMe) - for ThinkSystem SD630 V2 7D1K (2.5")
Manufacturer	Lenovo
MSRP	$979.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	100 mm
Dimensions & Weight / Height	7 mm
Dimensions & Weight / Weight	70 g
Dimensions & Weight / Width	70 mm
Hard Drive / Capacity	1.92 TB
Hard Drive / Form Factor	2.5"
Hard Drive / Hard Drive Type	Hot-swap hard drive
Hard Drive / Interface	U.2 PCIe 3.0 x4 (NVMe)
Hard Drive / Interface	U.2 PCIe 3.0 x4 (NVMe)
Header / Brand	Lenovo
Miscellaneous / Product Color	Black
Packaged Quantity	1
Service & Support / Type	1-year warranty
Storage / Type	Solid state drive
Compatibility Information
Designed For	Lenovo ThinkSystem SD630 V2 7D1K (2.5")
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Shock Tolerance (operating)	1500 g @ 0.5 ms
Expansion & Connectivity
Compatible Bay	2.5"
Interfaces	1 x PCI Express 3.0 x4 (NVMe) - U.2 (SFF-8639)
General
Capacity	1.92 TB
Depth	100 mm
Device Type	Solid state drive - hot-swap
Features	End-to-end data protection, Advanced ECC Engine, power loss data protection, 3D V-NAND Technology, NVM Express (NVMe), S.M.A.R.T.
Form Factor	2.5"
Height	7 mm
Interface	U.2 PCIe 3.0 x4 (NVMe)
Weight	70 g
Width	70 mm
Manufacturer Warranty
Service & Support	Limited warranty - replacement - 1 year
Miscellaneous
Compliant Standards	UL, TUV, FCC, C-Tick, BSMI, KCC
Performance
4KB Random Read	540000 IOPS
4KB Random Write	50000 IOPS
Average Latency	15 µs
Drive Writes Per Day (DWPD)	0.8
Internal Data Rate	3.2 GBps (read) / 2 GBps (write)
SSD Endurance	2733 TB
Power
Power Consumption	8.7 watt (read) 10.6 watt (write)
Reliability
MTBF	2,000,000 hours
Non-Recoverable Errors	1 per 10^17
