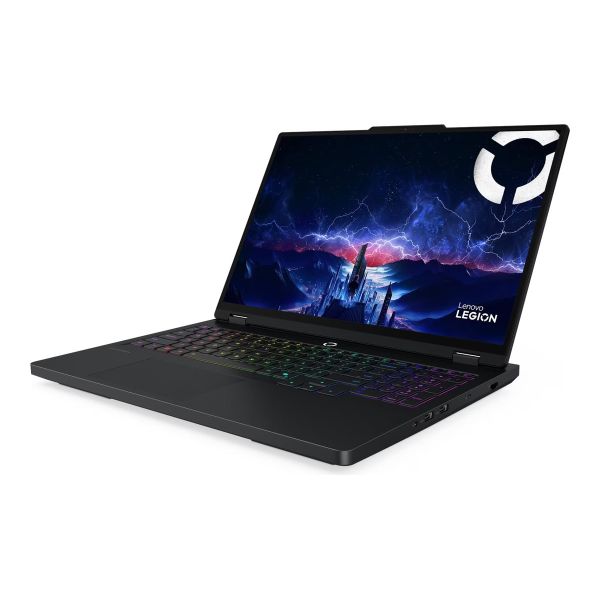

Lenovo Legion Pro 5 16IAX10H 83LU

Be the first to review this product

Availability: Out of stock

SKU

83LU005CUS

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Experience performance and visuals with the Lenovo Legion Pro 5 16IAX10H. This notebook features a 16-inch OLED display with a native resolution of 2560 x 1600, showcasing vibrant colors with 100% DCI-P3 color gamut and enhanced clarity through Dolby Vision and HDR 1000 True Black technologies. The ultra-fast 1 TB SSD provides storage, while the 32 GB DDR5 RAM ensures smooth multitasking for demanding applications and gaming experiences. Equipped with a Core Ultra 9 processor with 24 cores and max turbo speed of 5.4 GHz, the Lenovo Legion Pro 5 delivers processing power. Graphics are handled by the NVIDIA GeForce RTX 5070 Ti, providing performance for gaming and creative work. Enhanced audio features from Harman and Nahimic technologies offer an immersive experience, complemented by a dual array microphone and stereo speakers. With an array of connectivity options including USB-C with Power Delivery and Thunderbolt 4, this notebook is designed for efficiency and versatility.

Specifications

General Information
Category	Notebook computers
Description	Lenovo Legion Pro 5 16IAX10H 83LU - AI PC - Intel Core Ultra 9 - 275HX / up to 5.4 GHz - Win 11 Pro - GeForce RTX 5070 Ti - 32 GB RAM - 1 TB SSD NVMe - 16" OLED 2560 x 1600 (WQXGA) @ 240 Hz - Gigabit Ethernet - Wi-Fi 7, Bluetooth - eclipse black - kbd: English - with 3 Years Legion Ultimate Support with Onsite
Manufacturer	Lenovo
MSRP	$3,129.00
UNSPSC	43211503
Main Specifications
Audio Input / Type	Dual array microphone
Dimensions & Weight / Depth	26.806 cm
Dimensions & Weight / Height	1.705 cm
Dimensions & Weight / Weight	2.42 kg
Dimensions & Weight / Width	36.438 cm
Display / Diagonal Size	16 in
Display / Diagonal Size (metric)	40.6 cm
Display / Native Resolution	2560 x 1600
Display / Type	OLED
Display / Widescreen Display	Yes
Hard Drive / Capacity	1 TB
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Input Device / Type	Keyboard Touchpad
Mainboard / Chipset Type	Intel HM870
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth 5.4 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6) IEEE 802.11b IEEE 802.11be (Wi-Fi 7) IEEE 802.11g IEEE 802.11n
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax/be Bluetooth 5.4
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Generation	Series 2
Processor / Manufacturer	Intel
Processor / Number of Cores	24-core
Processor / Processor Number	275HX
Processor / Type	Core Ultra 9
RAM / Form Factor	SO-DIMM 262-pin
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	1 TB
System / Notebook Type	Notebook
Video Output / Graphics Processor	NVIDIA GeForce RTX 5070 Ti / Intel Graphics
AC Adapter
Input	AC 100-240 V (50/60 Hz)
Output	300 watt
Audio & Video
Audio Features	Output: Harman audio technology, Nahimic audio
Camera	Yes
Camera Features	Fixed focus, e-camera shutter
Codec	Realtek ALC3306
Compliant Standards	High Definition Audio
Gaming	Yes
Graphics Processor	NVIDIA GeForce RTX 5070 Ti / Intel Graphics - up to 992 TOPS
Multi-GPU Configuration	1 single GPU card / integrated GPU
Resolution	5 Megapixel
Sound	Stereo speakers, dual array microphone
Video Memory	12 GB GDDR7 SDRAM
Battery
Capacity	80 Wh
Technology	Lithium polymer
Communications
Features	Dual stream (2x2)
Network Interface	Gigabit Ethernet
Wireless	802.11a/b/g/n/ac/ax/be, Bluetooth 5.4
Connections & Expansion
Interfaces Details	2 x USB 3.2 Gen 1 USB 3.2 Gen 2 (Always On) USB-C 3.2 Gen 2 (supports DisplayPort 2.1 Alt Mode) (65-100W Power Delivery) USB4 (supports Thunderbolt 4, DisplayPort 2.1 Alt Mode) HDMI (8K support) Headphone/microphone combo jack (mini-phone 3.5 mm) LAN (RJ-45)
Slots	2 x M.2 (PCI Express 4.0 x4) (1 available)
Dimensions & Weight
Dimensions (WxDxH)	36.438 cm x 26.806 cm x 1.705 cm
Weight	2.42 kg
Display
Color Gamut	100% DCI-P3
Features	Glossy, NVIDIA G-SYNC compatible, Low Blue Light technology, Dolby Vision, X-Rite factory color calibration, 91.7% screen-to-body ratio, HDR 1000 True Black
Image Aspect Ratio	16:10
Image Brightness	1100 cd/m²
Resolution	2560 x 1600 (WQXGA)
Type	16" OLED
V-Sync Rate at Max Res.	240 Hz
Widescreen	Yes
General
AI Level	AI PC
Operating System	Windows 11 Pro - English
Product Type	Notebook
Input
Features	Buttonless touchpad, precision multi-touch touchpad, 24 RGB zones
Keyboard Backlight	Yes (RGB)
Keyboard Layout	English
Numeric Keypad	Yes
Type	Keyboard, touchpad
Manufacturer Warranty
Bundled Services	3 Years Legion Ultimate Support with Onsite
Service & Support	Base warranty - 1 year - pick-up and return Limited warranty - battery - 1 year Extended warranty - 3 years - on-site
Memory
Empty Slots	0
Form Factor	SO-DIMM 262-pin
Max RAM Supported	32 GB
RAM	32 GB (2 x 16 GB)
Rated Speed	5600 MT/s
Slots Qty	2
Technology	DDR5 SDRAM
Miscellaneous
Case Material	Aluminum (top), polycarbonate ABS (bottom)
Color	Eclipse black
Compliant Standards	RoHS, Energy-Related Products (ErP) Lot 6, TUV Rheinland Flicker Free Certification, Energy-Related Products (ErP) Lot 26, TUV Rheinland Low Blue Light (Hardware Solution), TUV Rheinland High Gaming Performance, Pantone Validated, Pantone Skintone Validated
Features	LA3 AI Chip
Included Accessories	Power adapter
Localization	Language: English / region: United States
Manufacturer Selling Program	Lenovo TopSeller
Security	Firmware Trusted Platform Module (TPM 2.0) Security Chip
Surface Finish	Anodizing sandblasting
Neural Processor Unit (NPU)
AI Datatype Support on NPU	INT8
AI Software Frameworks Supported by NPU	DirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)	Intel AI Boost
NPU Performance Up To (TOPS)	13 TOPS
Sparsity Support	Yes
Total Processor Performance Up To (TOPS)	36 TOPS
Windows Studio Effects Support	Yes
Processor / Chipset
Cache	36 MB
Chipset	Intel HM870
CPU	Intel Core Ultra 9 (Series 2) 275HX
Efficient Cores	16
Features	Integrated memory controller
Max Turbo Speed	5.4 GHz
Number of Cores	24-core
Performance Cores	8
Software
Software Included	Microsoft Office (Trial)
Storage
Main Storage	1 TB SSD M.2 2242 PCIe 4.0 x4 - NVM Express (NVMe)
Sustainability Information
ENERGY STAR Certified	Yes
