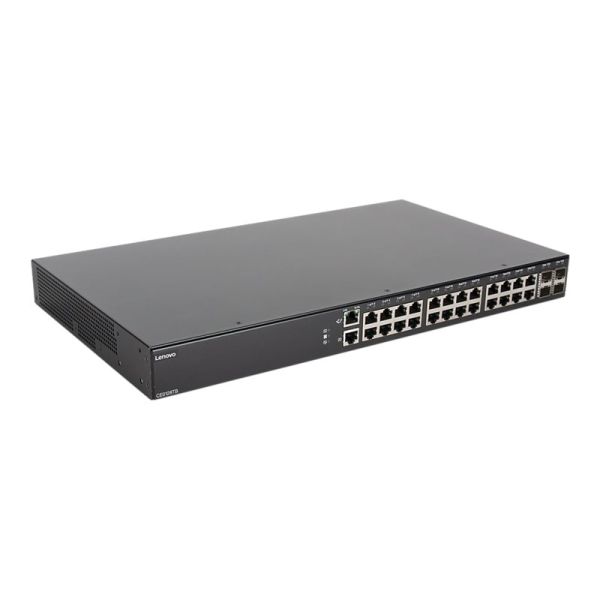

Lenovo CE0128TB 7Z34
The Lenovo CE0128TB switch is a 1/10 Gb Ethernet (GbE) switch that delivers a compact, high-density, cost-effective GbE solution for network environments where space and power are at a premium. Featuring a small, 1U footprint, this switch is designed for access-layer deployments in branches, retail and workgroup environments, and campus networks. It can also be used as a management network switch in the data center infrastructures. The CE0128TB switch offers 24x 10/100/1000BASE-T (RJ-45) fixed ports and 4x SFP+ ports that support 1 GbE and 10 GbE optical transceivers, 10 GbE active optical cables (AOCs), and 10 GbE direct attach copper (DAC) cables. The switch supports a wide range of L2 and L3 features that provide performance, availability, security, and manageability for campus networks.
| General Information | |
|---|---|
| Category | Network switches |
| Description | Lenovo CE0128TB 7Z34 - Switch - L3 - managed - 24 x 100/1000/10000 + 4 x 1 Gigabit / 10 Gigabit SFP+ - side to side airflow - rack-mountable - for ThinkAgile HX3721 Certified Node 7Y88 |
| Manufacturer | Lenovo |
| MSRP | $1,999.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 25.4 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 3.2 kg |
| Dimensions & Weight / Width | 44.1 cm |
| Header / Brand | Lenovo |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Compatibility Information | |
| Designed For | Lenovo ThinkAgile HX3721 Certified Node 7Y88 |
| Dimensions & Weight | |
| Depth | 25.4 cm |
| Height | 4.4 cm |
| Weight | 3.2 kg |
| Width | 44.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Features | ARP support, VLAN support, Syslog support, DoS attack prevention, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, UDLD, LLDP support, LACP, PVRST, dual firmware images, GARP, GVRP, GMRP, RBAC, DNS client, SPAN, PIM, MACAL, ISDP |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16384 entries |
| Max Units In A Stack | 8 |
| Performance |
|
| Ports | 24 x Gigabit Ethernet + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI, SCP, SFTP |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, policy-based routing (PBR), MLD |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
| Miscellaneous | |
| Compliant Standards | TUV GS, EN 61000-3-2, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, FCC Part 15 A, CECP, Directive 2011/65/EU, EAC, GB 4943.1, MSA SFF-8431, NOM-019, EK1-ITB2000, KN35, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, KN32 Class A, YD/T993, CNS 14336-1, EN 55032 Class A, TR CU 020/2011, TR CU 004/2011, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, VCCI-CISPR 32:2016, Directive 2015/863/EU, CNS13438:2006 Class A |
| MTBF | 1,000,000 hours |
| Rack Mounting Kit | Included |
| Power | |
| Installed Qty | 1 |
| Power Consumption Operational | 26 Watt |
| Power Device | Internal power supply |
| Power Provided | 30 Watt |
| Voltage Required | AC 120/230 V |
| Software / System Requirements | |
| Software Included | Lenovo Campus Networking OS |
