Lenovo 5300 - SSD - Read Intensive

Be the first to review this product

Availability: Out of stock

SKU

4XB7A77457

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

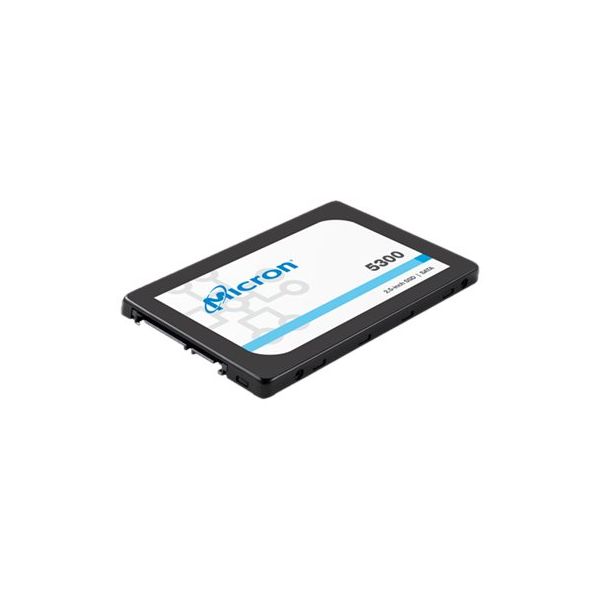

Lenovo 5300 - SSD - Read Intensive - encrypted - 480 GB - v2 - internal - 2.5" - SATA 6Gb/s - 256-bit AES - Self-Encrypting Drive (SED) - for ThinkSystem ST50 V2 7D8J (2.5"), 7D8K (2.5")

Specifications

General Information
Category	Hard drives
Description	Lenovo 5300 - SSD - Read Intensive - encrypted - 480 GB - v2 - internal - 2.5" - SATA 6Gb/s - 256-bit AES - Self-Encrypting Drive (SED) - for ThinkSystem ST50 V2 7D8J (2.5"), 7D8K (2.5")
Manufacturer	Lenovo
MSRP	$429.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	10 cm
Dimensions & Weight / Height	0.7 cm
Dimensions & Weight / Weight	70 g
Dimensions & Weight / Width	7 cm
Hard Drive / Capacity	480 GB
Hard Drive / Form Factor	2.5"
Hard Drive / Hard Drive Type	Internal hard drive
Hard Drive / Interface	Serial ATA-600
Hard Drive / Interface	Serial ATA-600
Header / Brand	Lenovo
Packaged Quantity	1
Service & Support / Type	1-year warranty
Storage / Type	Solid state drive
Compatibility Information
Designed For	Lenovo ThinkSystem ST50 V2 7D8J (2.5"), 7D8K (2.5")
Dimensions & Weight (JTFpping)
JTFpping Depth	13.3 cm
JTFpping Height	6.3 cm
JTFpping Weight	434 g
JTFpping Width	17.4 cm
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Shock Tolerance (non-operating)	1500 g @ 0.5 ms
Vibration Tolerance (non-operating)	3.13 g @ 5-800 Hz
Expansion & Connectivity
Compatible Bay	2.5"
Interfaces	1 x SATA 6 Gb/s
General
Capacity	480 GB
Depth	10 cm
Device Type	Solid state drive - internal
Encryption Algorithm	256-bit AES
Features	3D NAND Technology, S.M.A.R.T.
Form Factor	2.5"
Hardware Encryption	Yes
Height	0.7 cm
Interface	SATA 6Gb/s
NAND Flash Memory Type	3D triple-level cell (TLC)
Weight	70 g
Width	7 cm
Manufacturer Warranty
Service & Support	Limited warranty - replacement - 1 year
Miscellaneous
Compliant Standards	47 CFR Part 15 Class B, EN 55032 Class B, FCC, Micron Green Standard, RoHS, UL, UL 60950-1 Second Edition, AS/NZS CISPR 32 Class B, BSMI, CISPR 32 Class B, CNS 13438, ICES-003:2016, KCC KN32 Class B, KCC KN35 Class B, RCM, TUV 60950, VCCI 2015.04 Class B, WEEE 2002/96/EC
Performance
4KB Random Read	85000 IOPS
4KB Random Write	36000 IOPS
Average Latency	100 µs
Drive Class	Read Intensive
Drive Transfer Rate	600 MBps (external)
Drive Writes Per Day (DWPD)	1.5
Internal Data Rate	540 MBps (read) / 410 MBps (write)
SSD Endurance	1324 TB
Power
Power Consumption	2.5 watt (read) 3.1 watt (write)
Reliability
MTBF	3,000,000 hours
Non-Recoverable Errors	1 per 10^17
