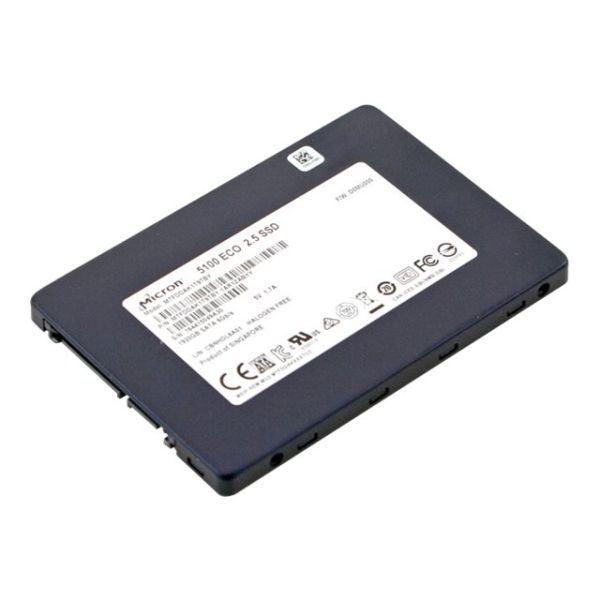

Lenovo 5100 Gen3 Enterprise Entry

Be the first to review this product

Availability: Out of stock

SKU

01KR506

UPC Code

889488431878

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The 5100 Enterprise Entry SATA solid-state drives (SSDs) use Micron NAND flash memory technology with a SATA interface. They provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.

Specifications

General Information
Category	Hard drives
Description	Lenovo 5100 Gen3 Enterprise Entry - Solid state drive - encrypted - 1.92 TB - hot-swap - 2.5" - SATA 6Gb/s - 256-bit AES - for NeXtScale nx360 M5; System x3250 M6; x3550 M5; x3850 X6; x3950 X6; ThinkServer sd350
Manufacturer	Lenovo
MSRP	$1,129.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	100 mm
Dimensions & Weight / Height	7 mm
Dimensions & Weight / Weight	70 g
Dimensions & Weight / Width	70 mm
Hard Drive / Capacity	1.92 TB
Hard Drive / Form Factor	2.5"
Hard Drive / Hard Drive Type	Hot-swap hard drive
Hard Drive / Interface	Serial ATA-600
Hard Drive / Interface	Serial ATA-600
Header / Brand	Lenovo
Packaged Quantity	1
Service & Support / Type	1-year warranty
Storage / Type	Solid state drive
Compatibility Information
Designed For	Lenovo NeXtScale nx360 M5 (2.5") Lenovo System x3250 M6 (2.5") Lenovo System x3550 M5 (2.5") Lenovo System x3650 M5 (2.5") Lenovo System x3850 X6 (2.5") Lenovo System x3950 X6 (2.5") Lenovo ThinkServer sd350 (2.5")
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Shock Tolerance (non-operating)	1500 g @ 0.5 ms
Vibration Tolerance (non-operating)	3.13 g @ 5-800 Hz
Expansion & Connectivity
Compatible Bay	2.5"
Interfaces	1 x SATA 6 Gb/s
General
Capacity	1.92 TB
Depth	100 mm
Device Type	Solid state drive - hot-swap
Encryption Algorithm	256-bit AES
Features	3D NAND Technology, S.M.A.R.T.
Form Factor	2.5"
Hardware Encryption	Yes
Height	7 mm
Interface	SATA 6Gb/s
NAND Flash Memory Type	3D triple-level cell (TLC)
Weight	70 g
Width	70 mm
Manufacturer Warranty
Service & Support	Limited warranty - replacement - 1 year
Miscellaneous
Compliant Standards	TUV, RRL, IEC 60950, RoHS, EN 60950-1, UL 60950-1 Second Edition, KCC, BSMI CNS 13438, FCC CFR47 Part 15 B, RCM, WEEE 2002/96/EC, EN 55032 Class B, KCC KN32 Class B, AS/NZS CISPR32 Class B, KCC KN35 Class B
Performance
4KB Random Read	93000 IOPS
4KB Random Write	24000 IOPS
Average Latency	500 µs
Drive Transfer Rate	600 MBps (external)
Drive Writes Per Day (DWPD)	0.9
Internal Data Rate	540 MBps (read) / 520 MBps (write)
SSD Endurance	3200 TB
Power
Power Consumption	5.5 Watt (typical)
Reliability
MTBF	2,000,000 hours
Non-Recoverable Errors	1 per 10^17
Software & System Requirements
OS Required	Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Red Hat Linux Enterprise Server 5, VMware ESX 4.1, VMware ESXi 4.1, Red Hat Linux Enterprise Server 5 x64 Edition, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Web Server 2008 x64 Edition, Red Hat Linux Enterprise Server 6, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 5 Server with Xen x64 Edition, SUSE LINUX Enterprise Server 10 for AMD64/EM64T, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, VMware vSphere 5.5 (ESXi), VMware vSphere 5.0 (ESXi), Microsoft Windows Server 2008 Datacenter x86 Edition, Microsoft Windows Server 2008 Enterprise x86 Edition, Microsoft Windows Server 2016, VMware vSphere 5.1 (ESXi)
