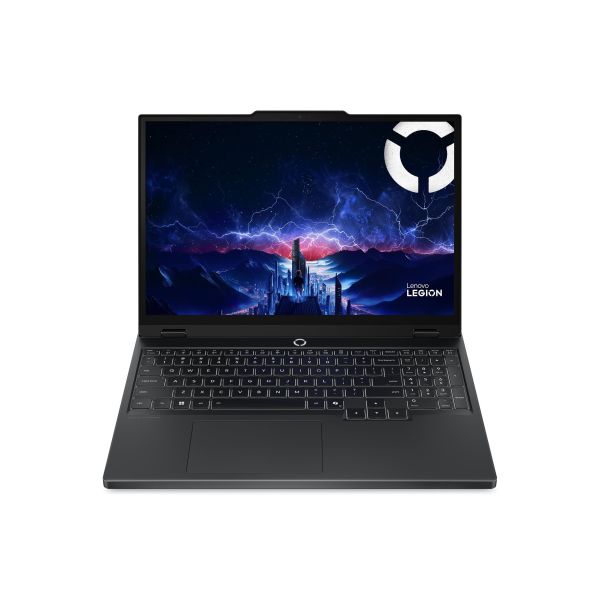

Lenovo Legion 5 15IAX10 83F0
| General Information | |
|---|---|
| Category | Notebook computers |
| Description | Lenovo Legion 5 15IAX10 83F0 - AI PC - 180-degree hinge design - Intel Core Ultra 7 - 255HX / up to 5.2 GHz - Win 11 Pro - GeForce RTX 5070 - 32 GB RAM - 1 TB SSD NVMe - 15.1" OLED 2560 x 1600 (WQXGA) @ 165 Hz - Gigabit Ethernet - Wi-Fi 7, Bluetooth - eclipse black - kbd: English - with 3 Years Legion Ultimate Support with Onsite |
| Manufacturer | Lenovo |
| MSRP | $2,829.00 |
| UNSPSC | 43211503 |
| Main Specifications | |
| Audio Input / Type | Dual array microphone |
| Dimensions & Weight / Depth | 25.535 cm |
| Dimensions & Weight / Height | 2.154 cm |
| Dimensions & Weight / Weight | 1.9 kg |
| Dimensions & Weight / Width | 34.49 cm |
| Display / Diagonal Size | 15.1 in |
| Display / Diagonal Size (metric) | 38.4 cm |
| Display / Native Resolution | 2560 x 1600 |
| Display / Type |
|
| Display / Widescreen Display | Yes |
| Hard Drive / Capacity | 1 TB |
| Header / Brand | Lenovo |
| Header / Country Kits | United States |
| Header / Localization | English |
| Input Device / Type |
|
| Mainboard / Chipset Type | Intel HM870 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 20-core |
| Processor / Processor Number | 255HX |
| Processor / Type | Core Ultra 7 |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 1 TB |
| System / Notebook Type | Notebook |
| Video Output / Graphics Processor | NVIDIA GeForce RTX 5070 / Intel Graphics |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 245 watt |
| Audio & Video | |
| Audio Features | Output: Harman audio technology, Nahimic audio |
| Camera | Yes |
| Camera Features | Fixed focus, e-camera shutter |
| Codec | Realtek ALC3287 |
| Compliant Standards | High Definition Audio |
| Gaming | Yes |
| Graphics Processor | NVIDIA GeForce RTX 5070 / Intel Graphics - up to 798 TOPS |
| Max Monitors Supported | 3 external monitor(s) |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Resolution | 5 Megapixel |
| Sound | Stereo speakers, dual array microphone |
| Video Memory | 8 GB GDDR7 SDRAM |
| Video System Features | Direct X 12 Ultimate, NVIDIA DLSS 4, NVIDIA Reflex 2 |
| Battery | |
| Battery Run Time | Local video (1080p) playback time (150 nits): up to 10.8 hour(s) |
| Capacity | 80 Wh |
| Run Time | Up to 10.8 hours |
| Technology | Lithium polymer |
| Communications | |
| Features | Wake-on-LAN (WOL), dual stream (2x2) |
| Network Interface | Gigabit Ethernet |
| Wireless | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
| Wireless Controller | M.2 Card |
| Connections & Expansion | |
| Interfaces Details |
|
| Slots | 2 x M.2 (PCI Express 4.0 x4) (1 available) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 34.49 cm x 25.535 cm x 2.154 cm |
| Weight | 1.9 kg |
| Display | |
| Color Gamut | 100% DCI-P3 |
| Features | Glossy, Flicker Free technology, Low Blue Light technology, Dolby Vision, HDR 600 True Black, X-Rite factory color calibration |
| Horizontal Viewing Angle | +89 / -89 |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 1000 cd/m² |
| Resolution | 2560 x 1600 (WQXGA) |
| Type | 15.1" OLED |
| V-Sync Rate at Max Res. | 165 Hz |
| Vertical Viewing Angle | +89 / -89 |
| Widescreen | Yes |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 95% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| General | |
| AI Level | AI PC |
| Operating System | Windows 11 Pro - English |
| Product Type | Notebook - 180-degree hinge design |
| Input | |
| Features | Multimedia control, multi-touch touchpad, buttonless touchpad, precision touchpad, 24 RGB zones, Copilot key |
| Keyboard Backlight | Yes (RGB) |
| Keyboard Layout | English |
| Numeric Keypad | Yes |
| Type | Keyboard, touchpad |
| Manufacturer Warranty | |
| Bundled Services | 3 Years Legion Ultimate Support with Onsite |
| Service & Support |
|
| Memory | |
| Empty Slots | 0 |
| Form Factor | SO-DIMM 262-pin |
| Max RAM Supported | 32 GB |
| RAM | 32 GB (2 x 16 GB) |
| Rated Speed | 5600 MT/s |
| Slots Qty | 2 |
| Speed | 5600 MT/s |
| Technology | DDR5 SDRAM |
| Miscellaneous | |
| Case Material | Aluminum (top), polycarbonate ABS (bottom) |
| Color | Eclipse black |
| Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 3, TUV Rheinland Flicker Free Certification, TUV Rheinland Low Blue Light (Hardware Solution) |
| Features | Administrator password, hard drive password, power-on password, self-healing BIOS, Super Rapid Charge, LA3 AI Chip |
| Included Accessories | Power adapter |
| Localization | Language: English / region: United States |
| Manufacturer Selling Program | Lenovo TopSeller |
| Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Surface Finish | Aluminum anodizing stamping with sandblasting |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Sparsity Support | Yes |
| Total Processor Performance Up To (TOPS) | 33 TOPS |
| Windows Studio Effects Support | Yes |
| Processor / Chipset | |
| Cache | 30 MB |
| Chipset | Intel HM870 |
| CPU | Intel Core Ultra 7 (Series 2) 255HX / 2.4 GHz |
| Efficient Cores | 12 |
| Features | Integrated memory controller |
| Max Turbo Speed | 5.2 GHz |
| Number of Cores | 20-core |
| Performance Cores | 8 |
| Software | |
| Microsoft Copilot | Yes |
| Software Included | Microsoft Office (Trial), Lenovo AI Now |
| Storage | |
| Main Storage | 1 TB SSD M.2 2242 PCIe 4.0 x4 - NVM Express (NVMe) |
| Sustainability Information | |
| Carbon Footprint | 371 kg carbon emissions |
| PAIA Version | 1.4.7 |
| Total CF/unit Standard Deviation (kg CO2e) | 69 |
