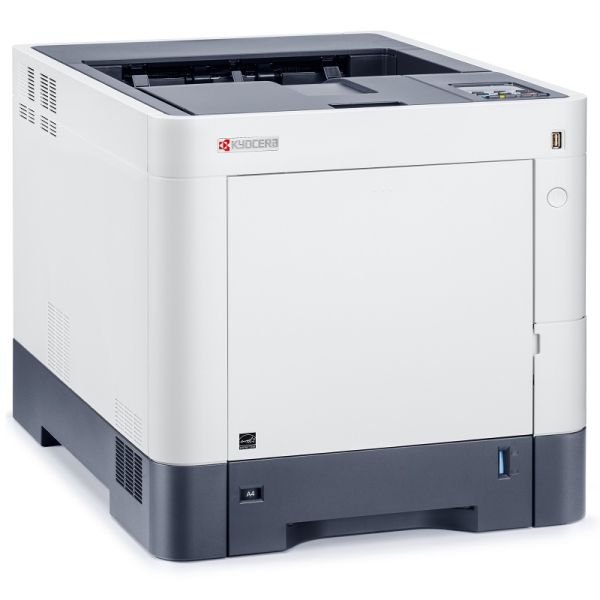

Kyocera P6230CDN Color & B/W Printer - P6230CDN
secure transaction
- Technology: KYOCERA ECOSYS, Laser, Colour Printer
- Operation panel: 2 Line display with back light
- Engine speed: Up to 30 pages A4 per minute
- Duplex print speed: 15 page per minute, A4
- Resolution: 1200 x 1200 dpi (print, at reduced speed)
- Warm-up time: Approx. 26 seconds or less
- CPU: ARM Cortex-A9 Dual core 1.2GHz + ARM Cortex-M3
- 100MHz
- Memory: Standard 1GB, Max. 1GB + 128GB SSD
- Standard interface: USB 2.0 (Hi-Speed), 2 x USB Host
- Interface, Gigabit Ethernet (10BaseT/100BaseTX/
- 1000BaseT, IPv6, IPv4, IPSec, 802.3az support)
- Integrated accounting: 100 department codes
- Dimensions (W x D x H): 15.35 x 20.94 x 16.12 Inches
- Weight: Approx. 62.39 lbs.
Kyocera P6230CDN Color & B/W Printer
General type Colour Printer for A4 format Technology KYOCERA ECOSYS, Colour Laser Engine speed Up to 30 pages per minute in A4 in colour and b/w; duplex print speed: 15 page per minute A4 Resolution 1200 x 1200 dpi (print, at reduced speed) Warm-up time Approx. 26 seconds or less from power on Time to first print Approx. 6 seconds or less in b/w, Approx. 7 seconds or less in colour Dimensions (W x D x H) 15.35 × 20.94 × 16.12 Inches Weight Approx. 62.39 lbs Power consumption Printing: 466 W, Ready mode: 56 W, Sleep-mode: 0.6 W Power source 110v Noise (ISO 7779) Noise (Sound pressure level: ISO 7779 / ISO 9296) Printing in colour: 49.5 dB(A) LpA, Stand-by: 30 dB (A) Safety standards GS, TÜV, CE - This unit is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard. General memory Standard: 1024 MB RAM, Max. 1GB + 128GB SSD Paper Handling Input capacity100-sheet multi-purpose tray, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 500-sheet Standard universal paper cassette, 60–163 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm).Max. input capacity with options: 2,100 sheets A4 Max. input capacity with options 2,100 sheets Duplex unit Standard duplex unit: 60–163 g/m² (A4, A5, B5, Letter, Legal) Max. output capacity 250-sheet face-down with paper full sensor General paper handling All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions. Print ProcessorARM Cortex-A9 D.core 1,2GHz + ARMCortex-M3 100MHz Controller language PRESCRIBE IIc Emulations PCL 6 (PCL 5c/PCL-XL), PostScript 3 (KPDL 3), PDF Direct Print 1.7, XPS Direct Print Fonts 93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of onedimensional barcodes, 1 type of two-dimensional barcode (PDF417) Integrated Accounting 100 department codes Features Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality Protocol Mobile printing support: KYOCERA Mobile Print app for iOS and Android, AirPrint, Mopria, Wi-Fi Direct (optional), Google cloud print Applicable OS All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request Interfaces Standard interfaceUSB 2.0 (Hi-Speed), 2 x USB Host Interface, Gigabit Ethernet (10BaseT/100BaseTX/1000BaseT, IPv6, IPv4, IPSec, 802.3az support), optional Wi-Fi (IEEE 802.11b/g/n), 1 eKUIO slot for optional internal print server, Slot for optional SD Card
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
