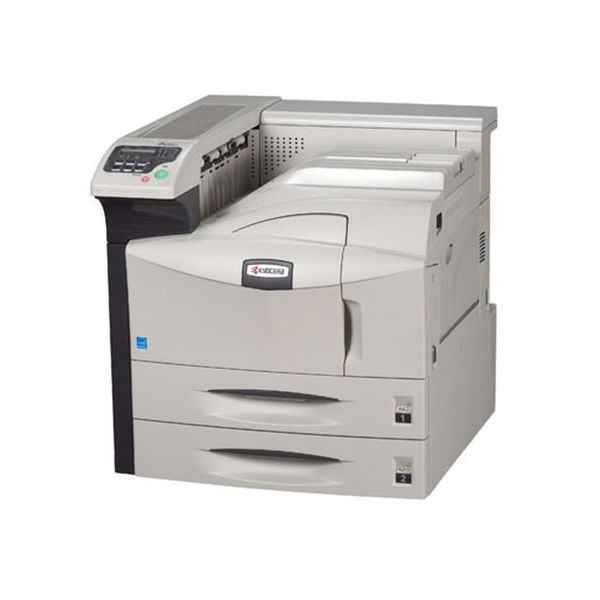

Kyocera FS-9530DN Laser Printer : FS9530DN : 1102G12US0

Kyocera FS-9530DN Comes Standard With:

• 51 pages per minute in A4, 26 pages per minute in A3
• 28 MB memory standard, upgradeable to 640 MB
• Duplex and network connectivity as standard
• 100 department codes to track and control printer use
• High volume paper options and versatile finishing features
• Long-life components and easy maintenance

Kyocera FS-9530DN Laser Printer 1102G12US0 Specifications

• General:
  General type	Printer monochrome A3
  Technology	Kyocera ECOSYS, Laser
  Engine speed	Up to 51/26 pages per minute A4/A3 simplex; up to 37/17 pages (18/8 sheets) per minute A4/A3 duplex
  Resolution	1200 dpi quality (1,800 x 600)
  Duty Cycle	300,000 pages per month
  Max. average monthly print volume	55,000 pages per month
  Warm-up time	60 seconds or less from power on
  Time to first print	Approx. 3.5 seconds
  Dimensions (W x D x H)	Main unit: 599 x 646 x 615 mm
  Weight	Main unit incl. toner: Approx. 68 kg
  Power consumption	Printing: 900 W, Stand-by: 180 W, Sleep-mode: 4.5 W
  Power source	AC 220 ~ 240 V, 50/60 Hz
  Noise (ISO 7779)	Printing: 51 dB(A), Stand-by: 37 dB(A)
  Safety standards	TÜV/GS, CE - This product is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.
  General memory	128 MB + ECOmemory, (max. 640 MB)
  Paper Handling:
  Input capacity	2 x 500-sheet universal paper feeder, 60-105 g/m², A3, A4, A4R, A5R, B4, B5, B5R, Letter, Letter-R, Legal, Ledger, Folio, STMT; 200-sheet multi-purpose tray, 45-200 g/m², A3-A6R, Custom (88 x 148 mm to 297 x 450 mm)
  Max. input capacity with options	4.200 sheets A4 (with optional paper feeder PF-750)
  Duplex unit	Double-side printing as standard; A3, A4, A4R, A5R, B4, B5, B5R, Letter, Letter-R, Legal, Ledger, 60-80 g/m²
  Max. output capacity	500 sheets face-down
  General paper handling	All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.
  Print:
  Processor	PowerPC 750FL/600 MHz
  Memory	Standard 128 MB + ECOmemory, max. 640 MB in 1 DIMM slot
  Controller language	PRESCRIBE IIe
  Emulations	PCL 6, PCL5e incl. PJLm Postscript 3 ( KPDL3) with Automatic Emulation Sensing (AES), PDF Direct print, KC GL (HP-7550A), Lineprinter, IBM Proprinter X24, EPSON LQ 850, DIABLO630
  Fonts	80 outline fonts (PCL), 136 PostScript Fonts, 1 bitmap font, 45 types of one-dimensional barcodes plus two-dimensional barcode (PDF-417); Downloadable fonts: Kyocera, PCL + TrueType format, Type 1 + 3 format
  Downloadable fonts	Kyocera, PCL + TrueType format, Type 1 + 3 format
  Features	Job management functionality with optional hard disk HD-5 for EMPS, Proof and hold, Private print and Job storage 100 department codes for Accounting, PDF direct print via USB Flash memory device and professional finishing capabilities
  Applicable OS	All current Windows operating systems, Mac OS X Version 10.2 or higher, UNIX, LINUX as well as other operating systems on request
  Interfaces:
  Standard interface	FastEthernet (10/100BaseTX, SNMPv3, SSL, IPsec, IPv6, IEEE802.1x), High speed bi-directional parallel (IEEE 1284), USB 2.0 (Hi-Speed), Slot for optional CompactFlash®-Card, KUIO-LV interface slot, USB Host Interface dedicated for USB Flash Memory device
  Options:
  Name	Description
  PS159 Wireless LAN	(802.11b/g/n)
  PS129 Fibre Optic	100BaseFX (SC)
  PS1129 Gigabit Fibre Optic	1000BaseSX (SC)
  PS1109 Gigabit Printserver	10BaseT / 100BaseTX / 1000BaseT (RJ-45)
  IB-11	Serial interface, max. 115.2 kbps (RS-232C)
  IB-23	10Base-T/100Base-TX
  HD-5	Hard disc for easy document management
  MDDR-128	128 MB RAM Expansion (100 pin DDR DIMM)
  MDDR-256	256 MB RAM Expansion (100 pin DDR DIMM)
  MDDR-512	512 MB RAM Expansion (100 pin DDR DIMM)
  Data Security Kit	Type C
  CF-4GB	CompactFlash® card: 4GB for printing forms, fonts, logos, macro storage and for HyPAS™ applications
  KYOmulticode 1.0 Type A	Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)
  PCL Barcode Flash 3.0 Type A	Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)
  Paper Handling Options:
  Name	Type	Dimension	Paper	Max. capacity
  PF-700	Paper feeder	585 x 590 x 315 mm	60-105 g/m², A3, A4, A4R, A5R, B4, B5, B5R, Letter, Letter-R, Legal, Ledger, Folio, STMT	Max. 2 x 500 sheets
  PF-750	Paper feeder	314 x 585 x 600 mm	60-105 g/m², A4,B5, Letter	Max. capacity: 2 x 1,500 sheets
  BF-710	Booklet unit for DF-710	267 x 654 x 454 mm	Max. 64 pages (16 sheets) booklet folding and stapling, 60-80 g/m², cover sheet 60-105 g/m², A3, B4, A4R	Max. 30 brochures (4-12 pages), 20 brochures (16-24 pages), 10 brochures (28-64 pages)
  DF-710	Document Finisher	1,087 x 684 x 563 mm	Main-tray: 60-200 g/m² (A3-B5); Sub-tray left and/or right: 45-200 g/m² (A3-A6R); Stapling: Max. 50 sheets A4 or 30 sheets A3, spapling at 3 positions	Tray 1: 3,000 pages (A4) or 1,500 pages (A3/B4); Tray 2: 200 pages (A4) or 100 pagess (A3/B4); Tray 3: 50 pages (A4)
  DF-730	Document Finisher	916 x 558 x 526 mm	64–128 g/m², A3-B5, one position stapling max. 30 sheets A4 or 20 sheets A3/B4, 64–80 g/m²; A3–B5	1,000 pages (A4), 500 pages (A3/B4)
  MT-710	Mailbox tray for DF-710	470 x 510 x 400 mm	7 bins, 60-80 g/m², A3-A5R, 7 bins x 100 sheets A4 or 50 sheets A3/B4	7 x max. 100 sheets
  AK-705	Attachment Kit for DF-710/ DF-730 (instalation of finisher requires AK-705)
  PH-5C/PH-5D	Punch unit for DF-710	100 x 82 x 490 mm	A3-A5R, 60-105 g/m²	2-hole/ 4-hole/ Swedish type
  CB-700	Wooden desk
  CB-710	Metal desk	586 x 590 x 307 mm
  Consumables:
  Name	Description
  TK-710	Microfine toner for 40000 pages in accordance with ISO/IEC 19752
