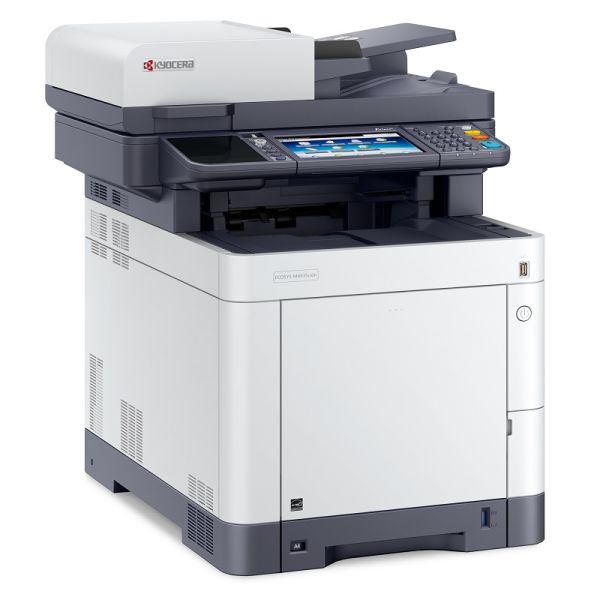

Kyocera Ecosys M6635cidn Color Multifunction Copier
- Operation panel: 177.8 mm (7 inch) full-colour touch
- Engine speed: Up to 35 pages A4 per minute
- Duplex print speed: 17 page per minute, A4
- Duplex copy speed: 17 page per minute, A4
- Resolution: 1200 x 1200 dpi (print, at reduced speed),600 x 600 dpi (scan/copy)
- Warm-up time: Approx. 25 seconds or less
- Time to first print: Approx. 6/7.5 seconds or less in b/w / colour
- Time to first copy: Approx. 8.5/10 seconds or less in b/w / colour
- CPU: ARM Cortex-A9 Dual core 1.2GHz + ARM Cortex-M3 100MHz
- Memory: Standard 1GB, Max. 3GB + 128GB SSD
- Standard interface: USB 2.0 (Hi-Speed), 2 x USB Host Interface
- Gigabit Ethernet (10BaseT/100BaseTX/ 1000BaseT, IPv6, IPv4, IPSec, 802.3az support)
- Dimensions (W x D x H) 18.89 x 22.71 x 24.38 inches
- Weight 80.46 lbs
Kyocera Ecosys M6635cidn Color Multifunction Copier
| General type | Color Multifunctional for A4 format |
| Technology | KYOCERA ECOSYS, Color Laser, HyPAS solution platform |
| Engine speed | Up to 35 pages A4 per minute in Color and b/w |
| Resolution | 1200 x 1200 dpi (print, at reduced speed) 600 x 600 dpi (scan/copy) |
| Warm-up time | Approx. 25 seconds or less |
| Time to first print | Approx. 6/7.5 seconds or less in b/w / Color |
| Time to first copy | Approx. 8.5/10 seconds or less in b/w / Color |
| Power consumption | Printing: 532 W, Copying: 547 W, Ready mode: 84 W, Sleep-mode: 0.6 W |
| Power source | AC 220 ~ 240 V, 50/60 Hz |
| Noise (ISO 7779) | Noise (sound pressure level: ISO 7779/ISO 9296) Copying/Printing: 52 dB (A) Stand-by: 30 dB (A) |
| Safety standards | TÜV/GS, CE - This product is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard. |
| General memory | Standard 1024 MB, max. 3072 MB |
| Paper Handling | |
|
Input capacity
|
100-sheet multi-purpose tray, 60–220g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 250-sheet Standard universal paper cassette, 60–163 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 – 216 x 356 mm). |
| Max. input capacity with options | 1,850 sheets |
| Duplex unit | Duplex as standard supports 60–163 g/m2, A4, A5, B5, Letter, Legal |
| Max. output capacity | 250 sheets face-down with paper full sensor |
| Document processor | Dual Scan Document Processor: 100-sheet, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm) |
| General paper handling | All paper capacities quoted are based on paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions. |
|
Processor
|
ARM Cortex-A9 Dual core 1,2 GHz |
| Controller language | PRESCRIBE IIc |
| Emulations | PCL6 (5c/XL), KPDL3 (PostScript 3 compatible), PDF Direct Print, XPS Direct Print |
| Fonts | 93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts( Windows Vista), 1 Bitmap font 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417) |
| Integrated Accounting | 100 department codes |
| Features | Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality |
| Protocol | Mobile printing support: KYOCERA Mobile Print app for iOS and Android, AirPrint, Mopria, Direct Wi-Fi, Google cloud print |
| Applicable OS | All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request |
| Copy | |
|
Max. original size
|
A4/legal |
| Digital copy features | Scan-once-copy-many, electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page |
| Exposure modes | Auto, manual: 9 steps |
| Preset magnification ratios | 7 Reductions/5 Enlargements |
| Zoom range | 25 - 400 % in 1% steps |
| Continuous copy | 1 - 999 |
| Image adjustments | Text + Photo, Photo, Text, Map, Printed document |
| Scan | |
|
Compression format
|
MMR/JPEG |
| File type | TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Serchable PDF (optional Scan Extension Kit(A) is required) |
| Scan features | Color scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip |
| Original recognition | Text, photo, text + photo, light text, optimised for OCR |
| Max. scan size | A4 / legal |
| Scan functionalities | Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN , WIA , WSD scan |
| Scan resolution | 600, 400, 300, 200 dpi, 256 greyscales per Color |
| Scan speed | 62 ipm (300 dpi, A4, b/w), 46 ipm (300 dpi, A4 Color), 46 ipm (300 dpi, A4, b/w), 32 ipm (300 dpi, A4 Color) |
| Fax | |
|
Compatibility
|
ITU-T Super G3 |
| Modem speed | Max. 33.6 kbps |
| Scanning speed | 2.0 seconds or less |
| Transmission speed | Max. 3 seconds (JBIG) |
| Scanning density | Normal: 8 dot/mm x 3.85 line/mm (200 x 100 dpi), Fine: 8 dot/mm x 7.7 line/mm (200 x 200 dpi), Superfine: 8 dot/mm x 15.4 line/mm (200 x 400 dpi), Ultrafine: 16 dot/mm x 15.4 line/mm (400 x 400 dpi), Halftone: 256 grey scales |
| Max. original size | A4 / legal |
| Compression method | JBIG, MMR, MR, MH |
| Fax features | Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast |
|
Standard interface
|
Standard interface: USB 2.0 (Hi-Speed), 2 x USB Host Interface, Gigabit Ethernet (10BaseT/100BaseTX/1000BaseT, IPv6, IPv4, IPSec, 802.3az support), optional Wi-Fi (IEEE 802.11b/g/n), 1 eKUIO slot for optional internal print server, Slot for optional SD Card |
| Dimensions (W x D x H) | 18.89 x 22.71 x 24.38 inches |
| Weight | 80.46 lbs |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$199.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
