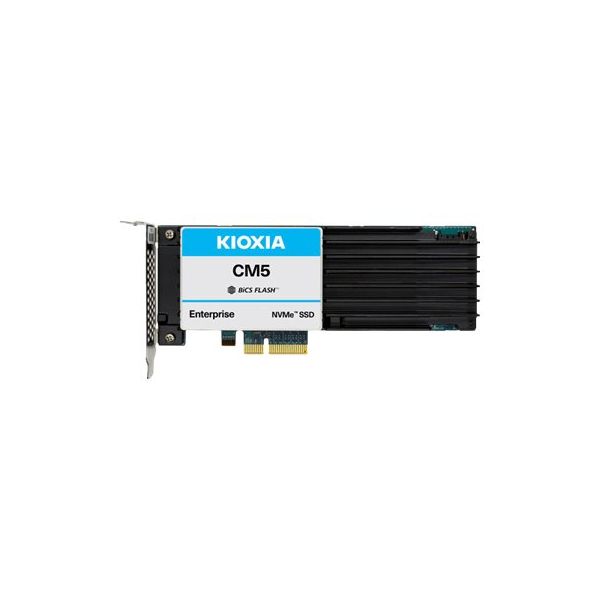

KIOXIA CM5-V Mainstream
The ThinkSystem Kioxia CM5-V Mainstream NVMe Flash Storage Adapter capable of storing up to 6.4 TB is an advanced data center PCIe add-in cards optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. It is engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. NVMe (Non-Volatile Memory Express) is a technology that overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of flash technology. The use of NVMe Flash Storage Adapter means data is transferred more efficiently from the processor to the storage compared to the legacy Advance Host Controller Interface (AHCI) stack, thereby reducing latency and overhead. This Flash Storage Adapter connects directly to the processor via the PCIe bus, further reducing latency and TCO compared to SAS/SATA SSDs.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | KIOXIA CM5-V Mainstream - SSD - 6.4 TB - internal - PCIe card (HHHL) - PCIe 3.0 x4 (NVMe) - for ThinkSystem SR570; SR590; SR630; SR650; SR850; SR860; SR950 |
| Manufacturer | Lenovo |
| MSRP | $7,499.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 168 mm |
| Dimensions & Weight / Height | 69 mm |
| Dimensions & Weight / Weight | 220 g |
| Dimensions & Weight / Width | 19 mm |
| Hard Drive / Capacity | 6.4 TB |
| Hard Drive / Form Factor | PCIe card (HHHL) |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | KIOXIA |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion & Connectivity | |
| Compatible Bay | PCIe card (HHHL) |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| General | |
| Capacity | 6.4 TB |
| Depth | 168 mm |
| Device Type | Solid state drive - internal |
| Features | 64-layer 3D BiCS FLASH, End-to-end data protection |
| Form Factor | PCIe card (HHHL) |
| Height | 69 mm |
| Interface | PCIe 3.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 220 g |
| Width | 19 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | UL 60950-1, TUV, BSMI CNS 13438, MSIP, KN22, KN24, AS/NZS CISPR32:2015 Class B, ICES-003 issue 6 Class B, EMC, EN 55022:2010 Class B, EN 55024:2010, RoHS 2011/65/EU, EN 60950-1 |
| Included Accessories | Low profile bracket |
| Performance | |
| 4KB Random Read | 718000 IOPS |
| 4KB Random Write | 117000 IOPS |
| Average Latency | 106 µs |
| Drive Writes Per Day (DWPD) | 3 |
| Internal Data Rate | 3120 MBps (read) / 3070 MBps (write) |
| SSD Endurance | 35040 TB |
| Power | |
| Power Consumption | 16 watt (maximum) |
| Reliability | |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
