KIOXIA CM5-V Mainstream

Be the first to review this product

Availability: Out of stock

SKU

4XB7A38234

UPC Code

889488522019

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

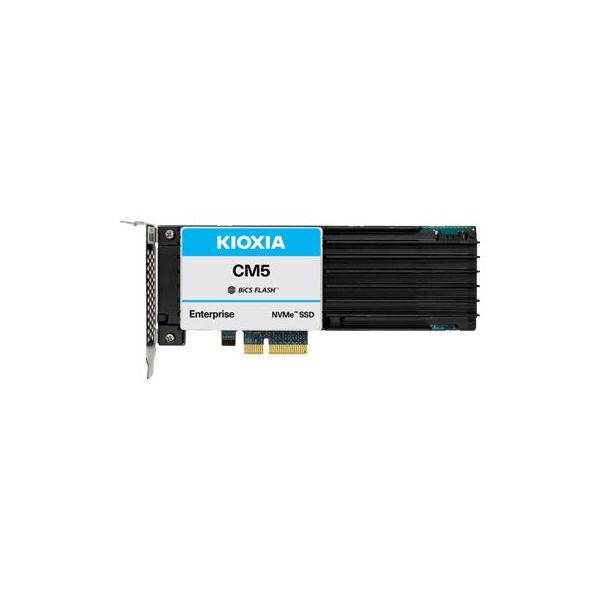

The ThinkSystem Kioxia CM5-V Mainstream NVMe Flash Storage Adapter in capacity up to 1.6 TB is an advanced data center PCIe add-in card optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. It is engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.

Specifications

General Information
Category	Hard drives
Description	KIOXIA CM5-V Mainstream - SSD - 1.6 TB - internal - PCIe card (HHHL) - PCIe 3.0 x4 (NVMe) - for ThinkSystem SR570; SR590; SR630; SR650; SR850; SR860; SR950
Manufacturer	Lenovo
MSRP	$2,179.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	168 mm
Dimensions & Weight / Height	69 mm
Dimensions & Weight / Weight	220 g
Dimensions & Weight / Width	19 mm
Hard Drive / Capacity	1.6 TB
Hard Drive / Form Factor	PCIe card (HHHL)
Hard Drive / Hard Drive Type	Internal hard drive
Hard Drive / Interface	PCI Express 3.0 x4 (NVMe)
Hard Drive / Interface	PCI Express 3.0 x4 (NVMe)
Header / Brand	KIOXIA
Packaged Quantity	1
Service & Support / Type	1-year warranty
Storage / Type	Solid state drive
Compatibility Information
Designed For	Lenovo ThinkSystem SR570 7Y02, 7Y03, 7Y04 Lenovo ThinkSystem SR590 7X98, 7X99 Lenovo ThinkSystem SR630 7X01, 7X02 Lenovo ThinkSystem SR650 7X05, 7X06 Lenovo ThinkSystem SR850 7X18, 7X19 Lenovo ThinkSystem SR860 7X69, 7X70 Lenovo ThinkSystem SR950 7X11, 7X12, 7X13
Environmental Parameters
Max Operating Temperature	50 °C
Max Storage Temperature	70 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-40 °C
Expansion & Connectivity
Compatible Bay	PCIe card (HHHL)
Interfaces	1 x PCI Express 3.0 x4 (NVMe)
General
Capacity	1.6 TB
Depth	168 mm
Device Type	Solid state drive - internal
Features	64-layer 3D BiCS FLASH, End-to-end data protection
Form Factor	PCIe card (HHHL)
Height	69 mm
Interface	PCIe 3.0 x4 (NVMe)
NAND Flash Memory Type	3D triple-level cell (TLC)
Weight	220 g
Width	19 mm
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Compliant Standards	UL 60950-1, TUV, BSMI CNS 13438, MSIP, KN22, KN24, AS/NZS CISPR32:2015 Class B, ICES-003 issue 6 Class B, EMC, EN 55022:2010 Class B, EN 55024:2010, RoHS 2011/65/EU, EN 60950-1
Included Accessories	Low profile bracket
Performance
4KB Random Read	657000 IOPS
4KB Random Write	130000 IOPS
Average Latency	106 µs
Drive Writes Per Day (DWPD)	3
Internal Data Rate	3122 MBps (read) / 2489 MBps (write)
SSD Endurance	8760 TB
Power
Power Consumption	13 watt (maximum)
Reliability
MTBF	2,500,000 hours
Non-Recoverable Errors	1 per 10^17
