ISOLATION TRANSFORMER WW 20KVANO RETURNS

Be the first to review this product

Availability: Out of stock

SKU

APTF20KW01

UPC Code

731304242222

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

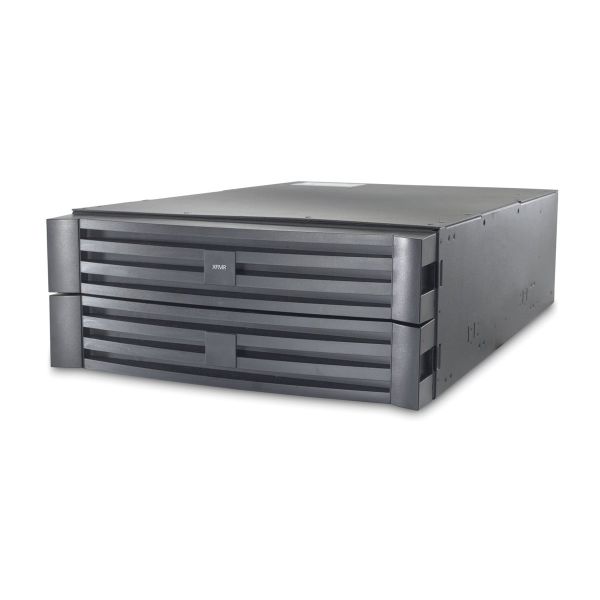

This Isolation Transformer supports a load capacity of 20kVA. It features a 4U rack-mount design and is rack mountable. The unit includes rack mounting brackets, user manual, installtion guide, hardwire panel and documentation CD.

Specifications

General Information
Category	Power conditioning equipment
Description	ISOLATION TRANSFORMER WW 20KVANO RETURNS
Manufacturer	APC by Schneider Electric
MSRP	$5,840.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	75.7 cm
Dimensions & Weight / Height	17.5 cm
Dimensions & Weight / Weight	118 kg
Dimensions & Weight / Width	43.2 cm
Header / Brand	APC
Miscellaneous / Product Color	Black
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Output Connector Qty	3
Power Device / Power Capacity (VA)	20000 VA
Power Device / Voltage Required	AC 100/120/200/208/230/400 V
Product Type	Transformer
Service & Support / Type	2-year warranty
Compatibility Information
Designed For	P/N: ACDC2513, ACF600, AP5607, AP7950B, AR203A, AR204A, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3103SP, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3200, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR3810, AR3812, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBES0302, NBPD0160, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBRK0201, NBRK0551, NBWL0355, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1000RM2U, SMT1500RM1U, SMT1500RM2U, SMT1500RMI1U, SMT2200R2X658, SMT2200RM2U, SMT2200RM2UC, SMT3000I2U-BR, SMT3000RM2U, SMT3000RM2UC, SMT3000RMT2U, SMT750RM2U, SMX1000, SMX1000I, SMX1000US, SMX1500RM2U, SMX1500RM2UNC, SMX1500RMI2U, SMX1500RMNCUS, SMX1500RMUS, SMX3000HV-BR, SMX3000LV2U-BR, SMX750, SMX750I, SMX750-NMC, SMX750US, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10RMXLIX806, SRT5KRMXLW-TW, SRT6KRMXLI, SRT8KRMXLI, SUA3000RMXL3U-BR, SURT20KUXI-IN, SURT3000XLI-ET, SURTA2200RMXL2U, SURTD3000RMXLT3U, SURTD3KRMXL3U-TF5, SYA12K16ICH, SYA12K16IXRCH, SYA12K16RMICH, SYA16K16ICH, SYA16K16IXRCH, SYA16K16RMICH, SYA8K16ICH, SYA8K16PX798, SYA8K16PXRX798, SYA8K16RMICH, SYA8K8PX798, SYAF16KRMICH
Dimensions & Weight
Depth	75.7 cm
Height	17.5 cm
Weight	118 kg
Width	43.2 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	100 cm
JTFpping Height	48.3 cm
JTFpping Weight	143 kg
JTFpping Width	60 cm
Environmental Parameters
Humidity Range Operating	0 - 95%
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
General
Color	Black
Device Type	Transformer - external
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Compliant Standards	CSA, UL, C-Tick, EN 60950, EN 61000-3-2, VDE, EN 61000-3-3, EN55024, EN55022 Class A
Rack Mounting Kit	Included
Power Device
Frequency Required	45 - 65 Hz
Input Connectors	3 x hardwire 4-wire (2PH+N+G), hardwire 3-wire (2PH + G), hardwire 3-wire (1PH + N + G)
Input Voltage	AC 100/120/200/208/230/400 V
Input Wiring	3-phase
Output Voltage	AC 100/120/200/208/230 V
Power Capacity	20 kW / 20000 VA
Power Output Connectors Details	1 x hardwire 3-wire (2PH + G) 1 x hardwire 3-wire (HN + E) 1 x hardwire 4-wire (2PH+N+G)
