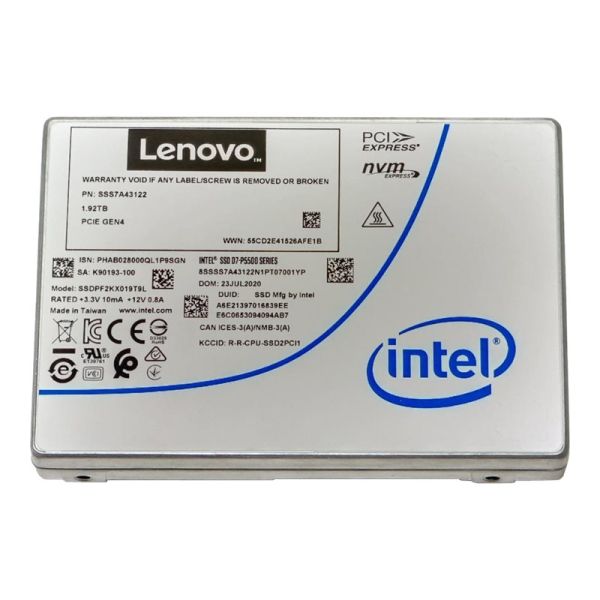

Intel P5500 Entry - SSD
The Intel SSD D7-P5500 Series Entry NVMe SSDs are general-purpose yet high-performance drives with a PCIe 4.0 x4 interface. They are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. The Intel P5500 SSDs are based on Intel-developed controller, firmware, and 96-layer TLC Intel 3D NAND technology. Rigorous qualification and compatibility testing by Lenovo ensures a highly reliable SSD.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Intel P5500 Entry - SSD - 3.84 TB - internal - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - CRU - for ThinkSystem SD650 V2 7D1M; SD650-N V2 7D1N |
| Manufacturer | Lenovo |
| MSRP | $2,679.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 146 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 3.84 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Intel |
| Miscellaneous / Product Color | Silver |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 g @ 5-700 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x PCI Express 4.0 x4 U.2 (NVMe) |
| General | |
| Capacity | 3.84 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - internal |
| Features | 96-layer 3D NAND technology, End-to-end data path protection, Thermal throttling, Thermal Monitoring, S.M.A.R.T. |
| Form Factor | 2.5" |
| Height | 15 mm |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 146 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, UL/CSA60950-1 (2nd Edition), C-Tick, AS/NZS 3584, BSMI CNS 13438, KCC Article 11.1, RoHS 2011/65/EU, WEEE 2002/96/EC, LVD 2006/95/EC |
| Pricing Type | Customer-replaceable Unit (CRU) |
| Performance | |
| 4KB Random Read | 780000 IOPS |
| 4KB Random Write | 118000 IOPS |
| Average Latency | 10 µs |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 7 GBps (read) / 3.5 GBps (write) |
| SSD Endurance | 7 PB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
