InHand Networks IG502 Industrial Edge Computing Gateway

Availability: In stock
SKU
IG502-FQ33-W-G
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction

The InGateway502 (IG502) series edge computing gateway is a small-sized, cost effective edge gateway developed for industrial IoT applications. It provides uninterrupted Internet access over globally ubiquitous LTE cellular network and multiple broadband services. With powerful edge computing capabilities, comprehensive security protection and wireless services, the IG502 can support networking of up to tens of thousands of devices, providing high-speed data channels for device informatization. The IG502 supports mainstream industrial protocols such as Modbus TCP/RTU. With support for major IoT cloud platforms including AWS and Microsoft Azure, it enables onsite devices to be connected to the cloud with ease. Featuring open edge computing platforms, the IG502 is capable of data optimization, real-time response, agile connection and intelligent analysis on the IoT edge, thus significantly reducing data flow between field sites and data center, cutting users’ operation costs and relieving pressure on the cloud. Excellent performance, ease for deployment and perfect functions for remote management make the IG502 stand out in the information construction of devices.

  • Reliable North America LTE Cat 1: Specifically designed for North American carriers (Verizon, AT&T, T-Mobile). LTE Cat 1 provides a cost-effective and highly stable connection for IoT applications, featuring Band 2/4/5/12/13/25/26 for extensive coverage and carrier-grade reliability.
  • Edge Computing & Python Programmable: Powered by a high-performance ARM Cortex-A8 processor. Supports Python secondary development, allowing you to perform data pre-processing, filtering, and local logic control at the edge, reducing cloud bandwidth costs and latency.
  • Rich Industrial I/O & Interfaces: Equipped with 1x RS232 and 1x RS485 serial ports, plus 4x Digital Inputs (DI) and 4x Digital Outputs (DO). It offers a versatile solution to bridge the gap between legacy serial equipment and modern sensors for comprehensive data acquisition.

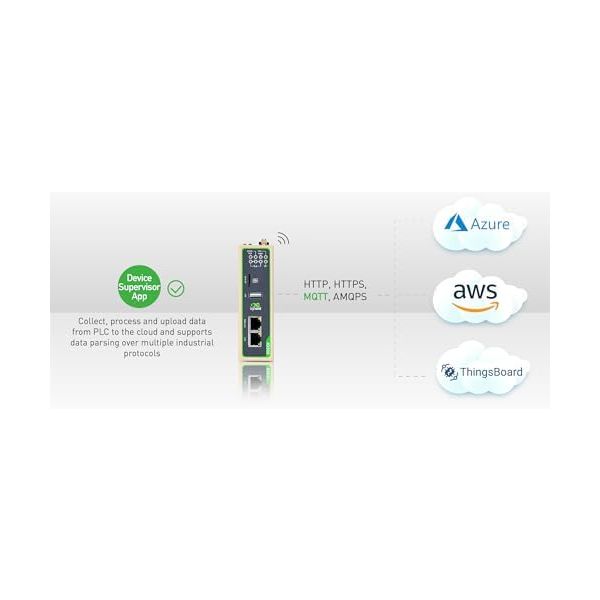

  • Extensive Protocols & Cloud Ready: Supports industrial protocols including Modbus RTU/TCP, MQTT, OPC UA, and HTTP. Seamlessly integrates with major cloud platforms like AWS IoT Core and Azure IoT Hub, as well as InHand’s DeviceManager for centralized remote management.
  • Industrial-Grade Durability & Security: Built with a rugged metal housing and designed for harsh environments with a wide operating temperature range (-20°C to 70°C). Features multi-level security with IPsec/OpenVPN and hardware watchdog for 24/7 unattended operation.
  • other_special_features_of_the_product: WPS
  • frequency_band_class: Single-Band
  • wireless_compability: 802.11b, 802.11g, 802.11n
  • compatible_devices: Industrial Device
  • antenna_location: Business, industry
  • connectivity_technology: Ethernet, LTE, Wi-Fi
  • antenna_type: Retractable
  • operating_system: Linux
  • security_protocol: WPS
  • number_of_ports: 3
  • control_method: Remote
  • lan_port_bandwidth: 100
  • voltage: 12 Volts (DC)
  • maximum_upstream_data_transfer_rate: 150 Megabits Per Second
  • ram_memory_installed: 512 MB
  • number_of_antennas: 1
  • is_modem_compatible: Yes
  • controller_type: Remote
  • is_electric: Yes
  • frequency: 2.4 GHz
  • brand: inhandgo
  • model_name: IG502-FQ33-IO-W-G
  • built_in_media: ANTENNA
  • model_number: IG502-FQ33-IO-W-G
  • manufacturer: INHAND NETWORKS
  • warranty_description: 3 Years
  • best_sellers_rank: #529,344 in Electronics (See Top 100 in Electronics) #3,040 in Computer Routers
  • asin: B0BYN1WQZJ
  • customer_reviews: 5.05
  • item_dimensions_l_x_w_x_h: 5"L x 1.38"W x 4.26"H
