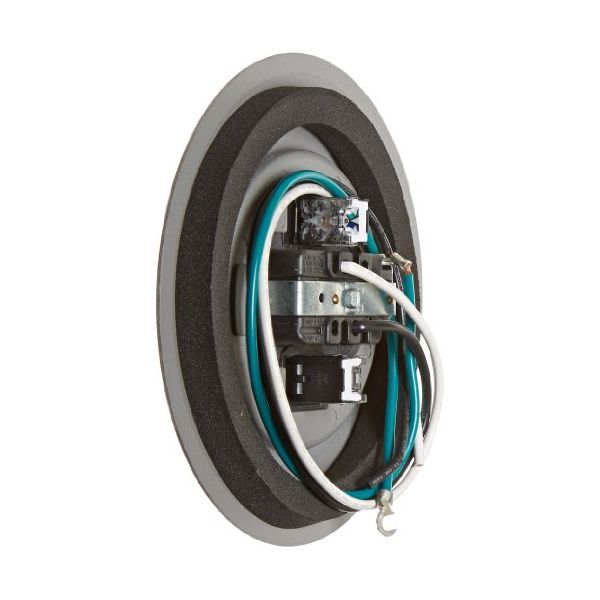

Hubbell Wiring Systems PT2X2SFGY Aluminum Fire-Rated Poke-Through Service Fitting

Hubbell aluminum fire-rated poke-through service fitting. Receptacles: Hubbell #HBL2162BK black, NEMA 5-20R; 20A, 125V AC. Jack(s): Hubbell HBL5EBK black; category 5e; UL listed; 110 type contacts. Power conductors: #12 AWG THHN stranded copper. Device and cover flap material: thermoplastic. Carpet flange material: painted cast aluminum/solid brass, brushed and lacquered. Conduit tubes: power - 0.75-inches EMT/low voltage - 1/2-inches EMT (two). Listings: outlet box- E31999, fire resistance - R8429. 1 Cover, 1 flange. 2 Cat 5e data jacks, black. 2 - 20A Duplex decorator receptacles.Complies with: UL 514A requirements for scrub water protection Fire Rating: for use in 1, 1.5, 2, 3 or 4 hour rated unprotected reinforced concrete floors or in 1, 2 or 3 hour rated floors employing Steel floor units and concrete topping (D900 series design) Floor thickness range: 2.25-inches (over metal deck) to 7-inches (57.2 to 117.8) UL Installation spacing: minimum of 2 feet on centers and not more than one unit per 65 square feet of floor area in each span Cored Hole 3-inches (76.2) diameter
