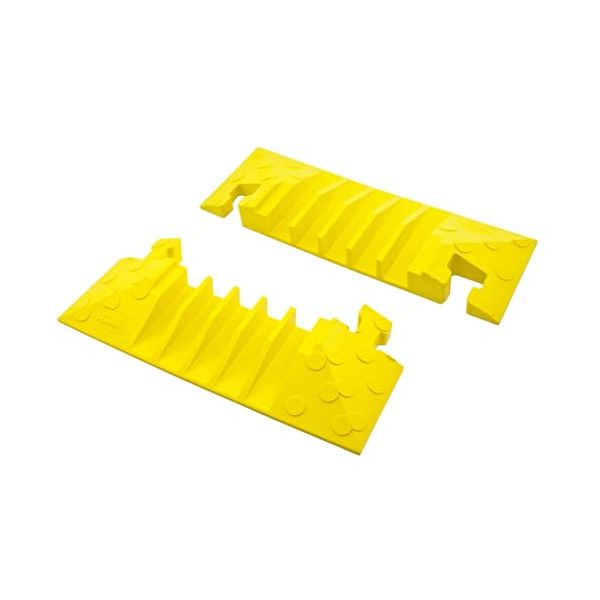

Hubbell Wiring Systems HBLTRED5ECB TredTrak Cast Polyurethane Modular Cable Protection System Female/Male End Cap

Hubbell TredTrak non-metallic cable protectors are designed to safeguard electrical cables and cords from vehicle and pedestrian traffic. The TredTrak system is a five channel modular cable protection system that will protect cable diameters up to 1-9/32-inches (32.5-millimeter). It is designed to support pedestrian and light vehicle traffic in public, institutional and commercial applications. It can also be interconnected to protect cables and cords of any length. The Hubbell modular cable protection line also permits compliance with NEC requirements (Article 525) for insulating electrical cables and cord at carnivals, amusement parks, convention centers and similar public areas. Number of channels: 5 channel. Made of cast polyurethane. Operating temperature: -40 to +120 degree F. Hinge material: reinforced fiberglass. 1-19/64-inches channel width. 1-19/64-inches channel height. Measures 5-1/2-inches length by 17-1/2-inches width by 1-61/64-inches height.TredTrak modular cable protection system female/male end cap High density polyurethane construction Modular interlocking design Safety surface pattern Measures 5-1/2-inches length by 17-1/2-inches width by 1-61/64-inches height
