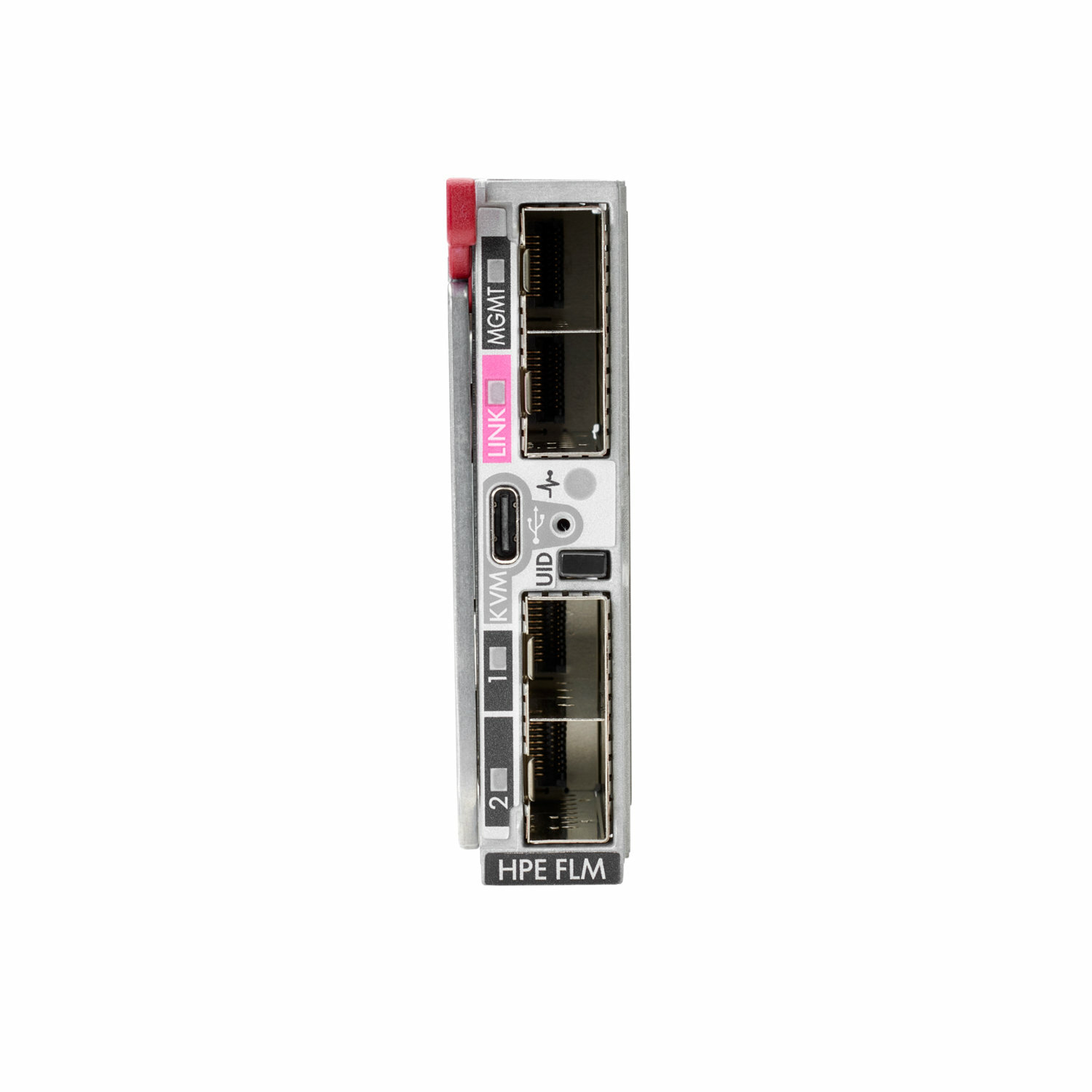

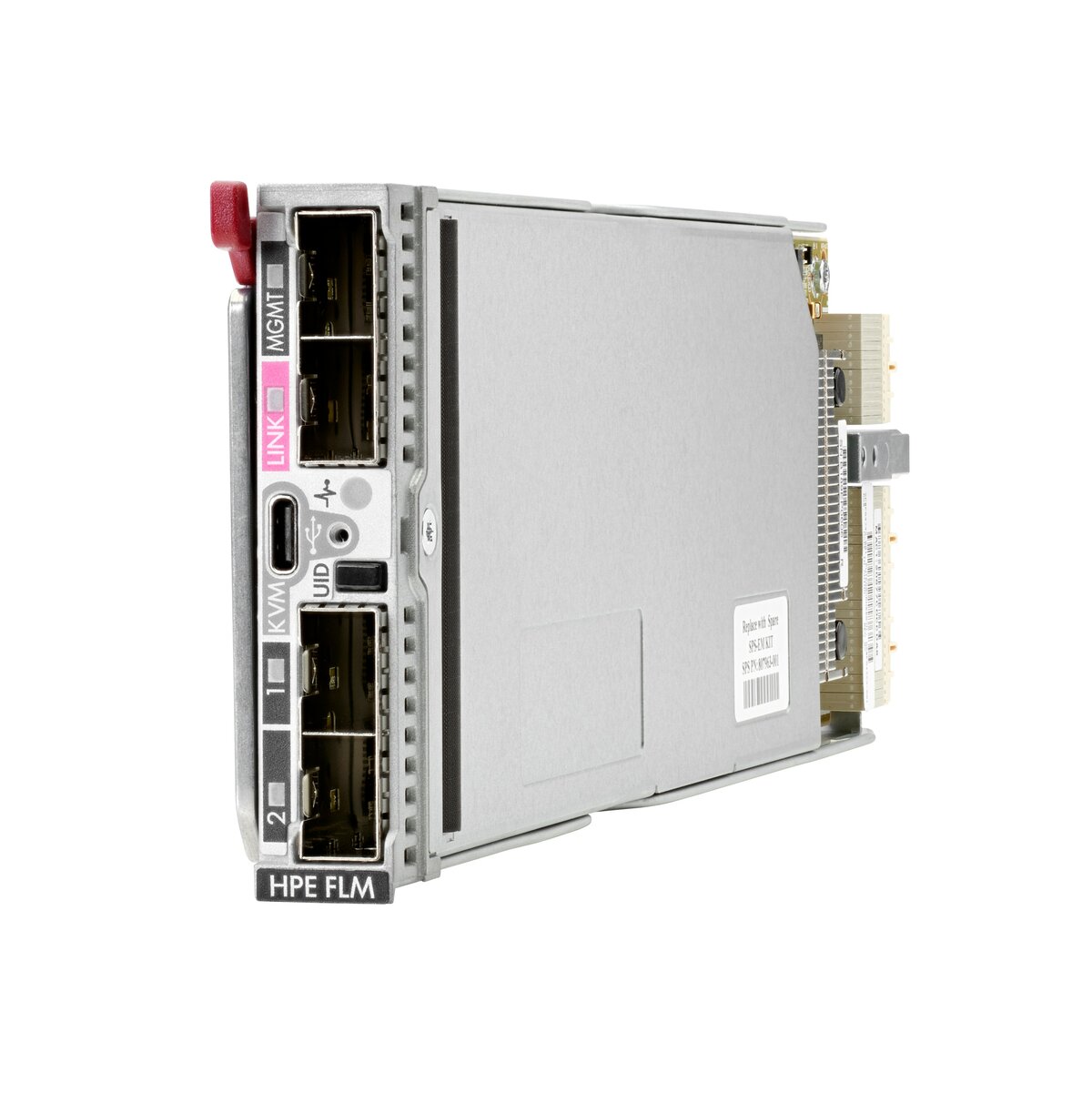

HPE Synergy Frame Link Module
Do your datacenter systems provide continuous uptime with security – while allowing for future growth? HPE Synergy Frame Link Modules provide basic management functions for HPE Synergy Frames like auto-discovery of resources and health-status monitoring to keep your systems up and running. Security is enhanced by separating the data network from the management network and by a variety of capabilities like Hardware Root of Trust, Secure Start, and Trusted Platform Module (TPM) file encryption. HPE Synergy Frame Link Modules also link multiple frames together into a management ring to scale your single management environment for future growth (up to 21 frames).
- Hardware Root of Trust prevents tampering by detecting and validating that the correct firmware is in use on the HPE 4-port Frame Link Module.:
- Secure Start maintains secure firmware updates and attack resilience by validating any new firmware on the HPE 4-port Frame Link Module from the previous firmware before switching the boot path.:
- File Encryption uses the Trusted Platform Module (TPM) on the HPE 4-port Frame Link Module for robust device security using validated encryption keys.:
- HPE 4-port Frame Link Modules provide flexibility for long-distance connections (up to tens of kilometers) to scattered frames and to remote subnets of a data center.:
- Control and Manage your Synergy Frames for Continuous Uptime: Collects asset and inventory information of all components installed in a HPE Synergy Frame. | Auto-discovers all resources in all linked HPE Synergy Frames, and reports this information into HPE OneView in order to automatically bring these resources under monitoring. | Controls and monitors the thermal and power infrastructure resources in an HPE Synergy Frame. | Reports the health status for each component installed in a HPE Synergy Frame. | Hosts the HPE Synergy Console user interface.
- Extend your Connectivity within a Single Management Domain: Management network connections, which are separate from the data network, operate at 1 Gbps or 10 Gbps for dedicated management control. | HPE Synergy Frame Link Modules link multiple frames together at 10 Gbps into a management ring within a single management domain. | Frame link modules allow you to easily grow your environment from a single frame up to 21 frames within the same management domain. | HPE Synergy 4-port Frame Link Modules provide flexibility for long-distance connections (up to tens of kilometers) to scattered frames and to remote subnets of a datacenter.
- Maintain the Security of your HPE Synergy Frames: HPE Synergy Frame Link Modules separate the data network from the management network to resist Denial of Service (DoS) attacks. | Hardware Root of Trust in HPE Synergy 4-port Frame Link Modules prevent tampering by detecting and validating that the correct firmware is in use. | Secure Start maintains secure firmware updates and attack resilience by validating any new firmware on the HPE 4-port Frame Link Module from the previous firmware before switching the boot path. | File Encryption uses the Trusted Platform Module (TPM) in the HPE Synergy 4-port Frame Link Module for robust device security using validated encryption keys. | HPE Synergy Frame Link Modules also provide other security capabilities like secure protocols and algorithms (CNSA Suite B, FIPS 140-2 Level 1, PCI-DSS compliance, GDPR), audit logs, authenticated updates, certificate management, scope based access control, and secure erase of user data.
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | HPE Synergy Frame Link Module - Expansion module - 10GbE - for Synergy 12000 Frame |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $2,210.00 |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 28.622 cm |
| Dimensions & Weight / Height | 2.08 cm |
| Dimensions & Weight / Weight | 630 g |
| Dimensions & Weight / Width | 8.255 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol | 10 Gigabit Ethernet |
| Networking / Data Transfer Rate | 10 Gbps |
| Networking / Type | Expansion module |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Compatibility Information | |
| Designed For | HPE Synergy 12000 Frame |
| Dimensions & Weight | |
| Depth | 28.622 cm |
| Height | 2.08 cm |
| Weight | 630 g |
| Width | 8.255 cm |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Expansion module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | DisplayPort 1.2 |
| Networking | |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
