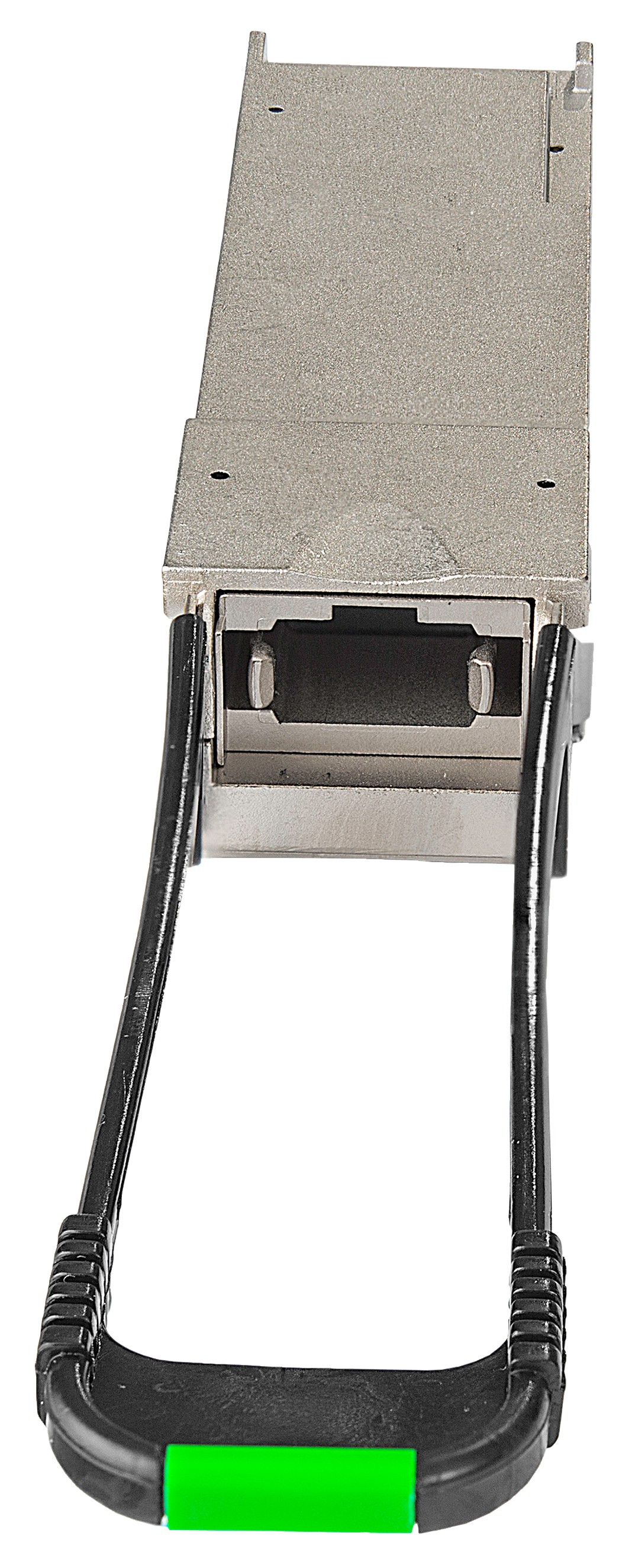

HPE - QSFP+ transceiver module

Be the first to review this product

Availability: Out of stock

SKU

720187-B21

UPC Code

887758161562

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Do you need high-performance QSFP+ transceivers for your BladeSystem? The HPE BladeSystem c-Class QSFP+ Transceivers deliver a full-duplex optical module with four independent transmit and receive channels supporting data rates up to 4x10 Gb/s for high-density applications and improving performance.

Featured Characteristics: Supports 4 lanes x 10.3 Gb/s. | Supports link distances up to 100 m on OM3 MMF and 150 m on OM4 MMF for SR4 and up to 10 km on SMF for LR4. | Less than 1.5 W maximum power dissipation for SR4/CSR4 and less than 3.5 W for LR4. | Can be used either for 40GbE or for aggregating 4x 10GbE links. | MPO connector (SR4) or LC connector (LR4).

Specifications

General Information
Category	Transceivers
Description	HPE - QSFP+ transceiver module - 40 Gigabit LAN - 40GBASE-SR4 - MPO multi-mode - up to 100 m - 850 nm - for Virtual Connect FlexFabric-20/40 F8 Module
Manufacturer	Hewlett Packard Enterprise
MSRP	$2,524.00
UNSPSC	43201553
Main Specifications
Height	2.00
Length	7.75
UPC	0887758161562
Width	3.25
Compatibility Information
Designed For	HPE Virtual Connect FlexFabric-20/40 F8 Module
Dimensions & Weight
Depth	13.18 cm
Height	1.371 cm
Weight	35 g
Width	1.835 cm
Environmental Parameters
Humidity Range Operating	0 - 85% (non-condensing)
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x Ethernet 40GBASE-SR4 - MPO multi-mode
General
Device Type	QSFP+ transceiver module
Form Factor	Plug-in module
Networking
Cabling Type	40GBASE-SR4
Compliant Standards	IEEE 802.3ba
Connectivity Technology	Wired
Data Link Protocol	40GbE
Data Transfer Rate	40 Gbps
Max Transfer Distance	100 m
Optical Wave Length	850 nm
