HPE ProLiant ML110 Gen9 Entry

Availability: Out of stock
SKU
777160-001
UPC Code
888793146101
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
Are you searching for an optimized and expandable server that is affordable for your small to mid-sized business? The HPE ProLiant ML110 Gen9 Server is a small, quiet tower with performance, expansion, and growth at an affordable price to meet most small and midsized businesses' compute demands. The ML110 Gen9 Server is a single processor tower form factor that can also be placed in a rack server cabinet using 4.5U of rack space. It includes up to five PCIe slots with room to grow with eight Large Form Factor (LFF) or sixteen Small Form Factor (SFF) disk drives. Provides eight DDR4 DIMM slots supporting HPE DDR4 SmartMemory with a maximum capacity of 256 GB, making this the ideal server for small-to mid-sized businesses and remote offices/branch offices.

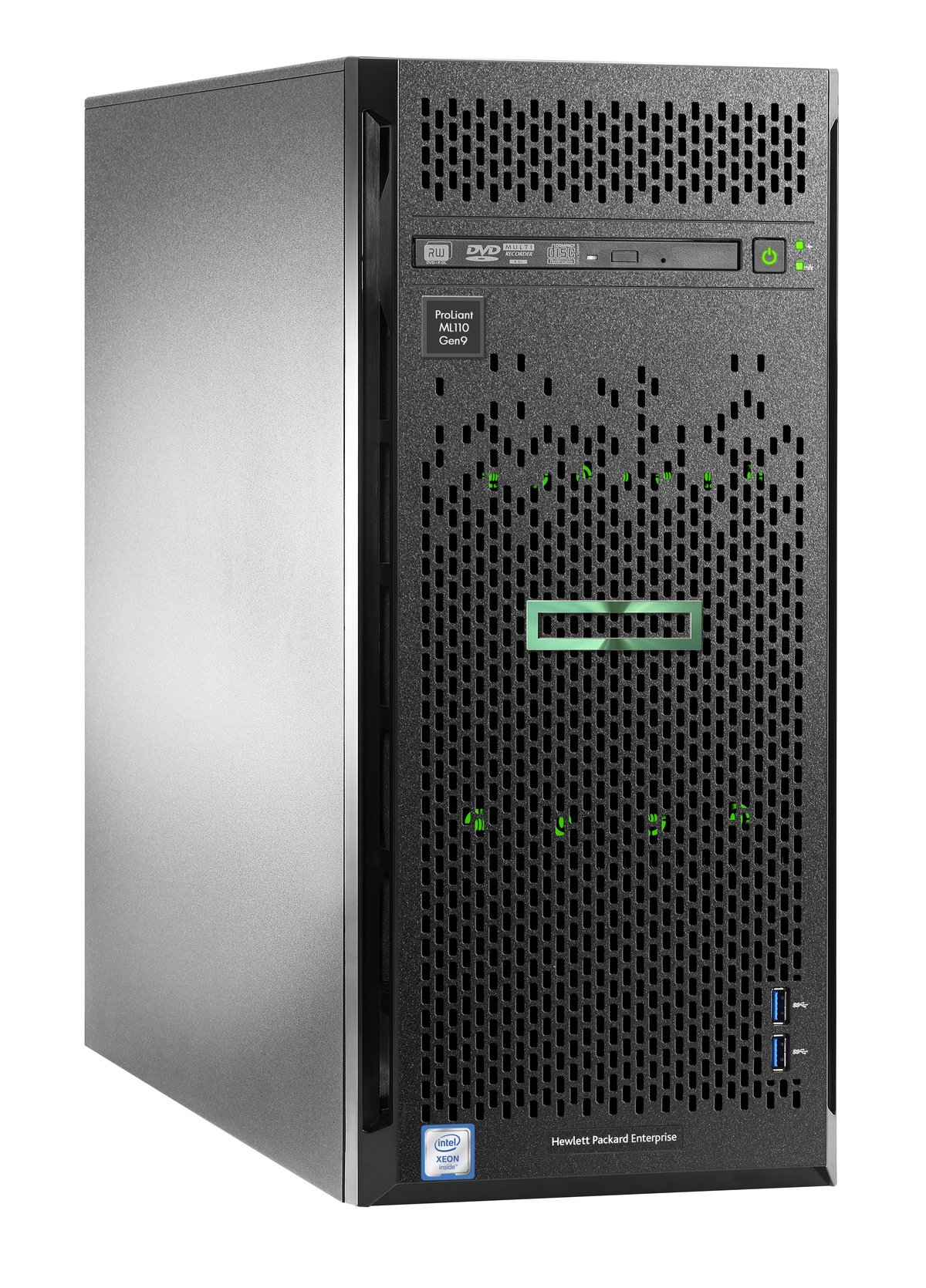

Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
Product image 777160-001
  • Support for HPE OneView 3.1 Standard, now making hybrid IT infrastructure simpler to deploy and manage.:
  • Build a fully functional server with ClearOS that is just right for you at no upfront cost. For more information, check the ClearOS link on the right.:
  • Intel: ® | Xeon | ® | processors specifically designed for servers with speeds of up to 3.5 Ghz and up to 14 cores.

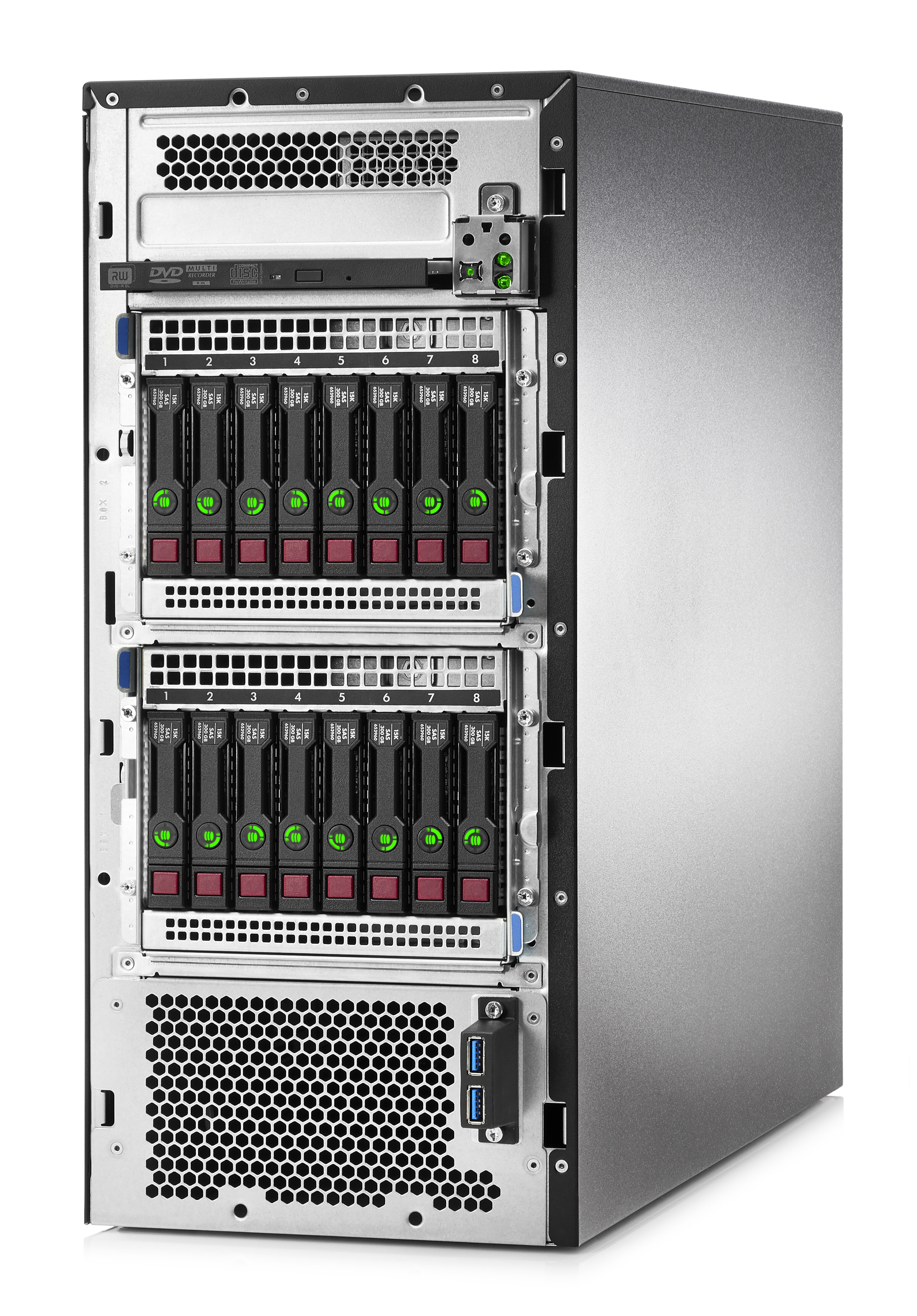

  • Includes five PCIe slots, eight Large Form Factor (LFF) or sixteen Small Form Factor (SFF) disk drives and eight DDR4 DIMMs for growing business needs.:
  • 10 TB SAS/SATA Hard Disk Drive:
  • Right-sized, Delivering Better Performance at an Affordable Price: The HPE ProLiant ML110 Gen9 Server is compact with less than a 19-inch depth, quiet, affordable and can deliver the performance needed for the compute demands of a growing office small to mid-sized business. | Supports one Intel Xeon processor operating with speeds up to 3.5 GHz and up to fourteen cores offering improved performance. | It includes an embedded SATA HPE Dynamic Smart Array B140i Controller for both boot and data. | Optional HPE Smart Array Controllers increase disk drive performance, data availability with the 12 Gb/s SAS technology or HPE Smart Host Bus Adapters with reliable, high-performance SAS connectivity capable of running HBA mode or simple RAID mode.
  • Memory, HDD and I/O Expansion for Growing Business Needs: The HPE ProLiant ML110 Gen9 Server offers up to eight DIMM slots with support for up to 256 GB of HPE DDR4 SmartMemory, helping to prevent data loss and downtime with enhanced error handling while improving workload performance and power efficiency. | HPE SmartDrives continue to deliver optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics. Supports up to eight Large Form Factor LFF or sixteen Small Form Factor (SFF) disk drives. | Embedded with a 2x1GbE Adapter and up to five PCIe slots, it provides you with the flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
  • Optimized Compute for SMB Physical and Virtual Workloads and Application: The HPE ProLiant ML110 Gen9 Server provides flexible expansion capacity with five PCIe expansion slots, eight USB ports, and a redundant power supply option. | A single wide General Purpose Graphics Processing Unit (GPGPU) can boost performance in graphic and virtual desktop infrastructure (VDI) applications for financial services, education, scientific research, and medical imaging applications. | Improved ambient temperature is standard with ASHRAE A3 | 1 | , reducing your cooling expenses.
  • Agile Infrastructure Management with Essential Simplicity and Automation: The HPE ProLiant ML110 Gen9 Server offers essential management for control, provisioning, and optimization of HPE ProLiant servers with HPE Insight Control. The online personalized dashboard is for converged infrastructure health monitoring and support management with HPE Insight Online. | Configure in Unified Extensible Firmware Interface (UEFI) boot mode, provision locally and remotely with the Intelligent Provisioning, Scripting Toolkits or RESTful Interface Tool. | Optimize firmware and driver updates and reduce downtime with Smart Update, consisting of SUM (Smart Update Manager) and SPP (Service Pack for ProLiant). | Embedded management to deploy, monitor and support your server remotely, out of band with HPE iLO. | With HPE OneView 3.1, HPE customers can easily manage their heterogeneous platforms with one tool.
General Information
CategoryServers
DescriptionHPE ProLiant ML110 Gen9 Entry - Server - tower - 4.5U - 1-way - 1 x Xeon E5-2603V3 / 1.6 GHz - RAM 4 GB - SATA - non-hot-swap 3.5" bay(s) - no HDD - G200eH - GigE - monitor: none
ManufacturerHewlett Packard Enterprise
MSRP$1,029.00
UNSPSC43211501
Main Specifications
Chassis / Form FactorTower
Chassis / Server Storage BaysNon-hot-swap
Chassis / Server Swappable Drive InterfaceSATA
Dimensions & Weight / Depth48.05 cm
Dimensions & Weight / Height44 cm
Dimensions & Weight / Weight12.5 kg
Dimensions & Weight / Width19.5 cm
Display / TypeNone.
Header / BrandHPE
Header / Country KitsUnited States
Mainboard / Processor SocketLGA2011-v3 Socket
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
Packaged Quantity1
Processor / Clock Speed1.6 GHz
Processor / ManufacturerIntel
Processor / Number of Cores6-core
Processor / Processor NumberE5-2603V3
Processor / TypeXeon
RAM / Data Integrity CheckAdvanced ECC
RAM / Form FactorDIMM 288-pin
RAM / Memory Specification CompliancePC4-17000
RAM / Memory Speed1600 MHz
RAM / TechnologyDDR4 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity0 GB
System / TypeServer
Video Output / Graphics ProcessorMatrox G200eH
Cache Memory
Cache Per Processor15 MB
Installed Size15 MB
Dimensions & Weight
Depth48.05 cm
Height44 cm
Weight12.5 kg
Width19.5 cm
Environmental Parameters
Humidity Range Operating8 - 90%
Max Operating Temperature35 °C
Min Operating Temperature10 °C
Expansion / Connectivity
Bays
  • 1 (total) / 1 (free) x external 5.25"
  • 4 (total) / 4 (free) x internal 3.5" LFF
Interfaces
  • 1 x VGA (1 rear)
  • 2 x LAN (Gigabit Ethernet)
  • 1 x HPE iLO
  • 5 x USB 3.0 (2 front, 2 rear, 1 internal)
  • 3 x USB 2.0 (2 rear, 1 internal)
Slots
  • 8 (total) / 7 (free) x DIMM 288-pin
  • 1 (total) / 0 (free) x CPU
  • 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height
  • 2 (total) / 2 (free) x PCIe 3.0 x4 - half-length, full-height
  • 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height
  • 1 (total) / 1 (free) x microSD Card (internal)
General
Embedded SecurityTrusted Platform Module (TPM 1.2) Security Chip
Front Accessible Bays Qty1
Internal Bays Qty4
LocalizationRegion: United States
Product Form FactorTower - 4.5U
Server Scalability1-way
TypeServer
Graphics Controller
Graphics ProcessorMatrox G200eH
Video Memory16 MB
Hard Drive
TypeNo HDD
Manufacturer Warranty
Service & Support
  • Limited warranty - parts - 3 years
  • Limited warranty - parts and labor - 1 year - on-site
Miscellaneous
Compliant StandardsACPI 2.0b, FCC Class B certified, CISPR 24, ICES-003, EN 61000-3-3, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, GB 9254, CNS 13438
FeaturesAdministrator password, power-on password, serial port I/O control, Setup Password, UEFI BIOS
Monitor
Monitor TypeNone.
Networking
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllerHP 330i
Ethernet Ports2 x Gigabit Ethernet
FeaturesWake on LAN (WoL), PXE support
Interface (Bus) TypePCI Express x2
Remote Management ControllerIntegrated Lights-Out 4
Remote Management ProtocolIPMI 2.0, SMASH CLP
TypeIntegrated
Operating System / Software
OS CertifiedSUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Canonical Ubuntu
Optical Storage
TypeNo optical drive
Power
Device TypePower supply
Power Provided350 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
Processor / Chipset
Clock Speed1.6 GHz
CPUIntel Xeon E5-2603V3
CPU Qty1
CPU SocketLGA2011-v3 Socket
CPU UpgradabilityUpgradable
Max CPU Qty1
Number of Cores6-core
RAM
Configuration Features1 x 4 GB
Effective Memory Speed1600 MHz
FeaturesRegistered, Online Spare Memory, HP SmartMemory
Form FactorDIMM 288-pin
Installed Size4 GB (installed) / 256 GB (max)
Memory Specification CompliancePC4-17000
RAM Supported
  • PC4-17000 - 128 GB Load-Reduced
  • PC4-17000 - 256 GB registered
Rated Memory Speed2133 MHz
Slots8 (total) / 7 (empty)
TechnologyDDR4 SDRAM - Advanced ECC
Storage Controller
Channel Qty10
Controller Interface TypeSATA 6Gb/s
RAID LevelRAID 0, RAID 1, RAID 5, RAID 10
Storage Controller NameHP Dynamic Smart Array B140i
Type1 x RAID - integrated
