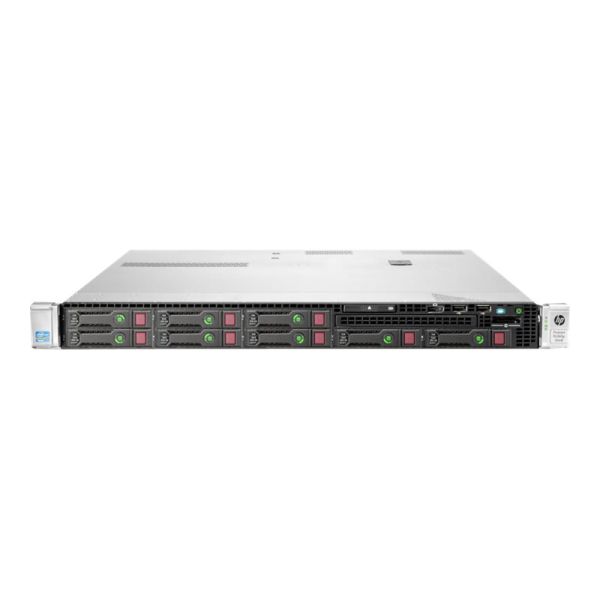

HPE ProLiant DL360p Gen8

Be the first to review this product

Availability: Out of stock

SKU

742816-S01

UPC Code

888182014561

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Is your data center space constrained yet performance driven? The HPE ProLiant DL360p Gen8 Server provides enterprise class 2-socket performance and efficiency in a space saving 1U size. With Gen8 enhanced serviceability and configuration flexibility, it is ideal for general purpose applications such as file/print, web, dynamic computing workloads, virtualization and cloud solutions.

Specifications

General Information
Category	Servers
Description	HPE ProLiant DL360p Gen8 - Server - rack-mountable - 1U - 2-way - 2 x Xeon E5-2670 / 2.6 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - GigE - monitor: none - Smart Buy
Manufacturer	Hewlett Packard Enterprise
MSRP	$5,399.00
UNSPSC	43211501
Main Specifications
Chassis / Form Factor	Rack-mountable
Chassis / Server Storage Bays	Hot-swap
Chassis / Server Swappable Drive Interface	SAS
Dimensions & Weight / Depth	69.85 cm
Dimensions & Weight / Height	4.32 cm
Dimensions & Weight / Weight	14.51 kg
Dimensions & Weight / Width	43.47 cm
Display / Type	None.
Header / Brand	HPE
Miscellaneous / Product Color	Black Silver
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
Packaged Quantity	1
Processor / Clock Speed	2.6 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	8-core
Processor / Processor Number	E5-2670
Processor / Type	Xeon
RAM / Form Factor	DIMM 240-pin
RAM / Memory Specification Compliance	PC3-12800
RAM / Memory Speed	1600 MHz
RAM / Technology	DDR3 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	0 GB
System / Type	Server
Video Output / Graphics Processor	Matrox G200
Cache Memory
Cache Per Processor	20 MB
Installed Size	L3 cache - 40 MB
Dimensions & Weight
Depth	69.85 cm
Height	4.32 cm
Weight	14.51 kg
Width	43.47 cm
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	1 (total) / 1 (free) x external 5.25" x 1/2H 8 (total) / 8 (free) x hot-swap 2.5" SFF
Interfaces	1 x serial 1 x VGA 4 x LAN (Gigabit Ethernet) 1 x HPE iLO 7 x USB 2.0 (2 front, 4 rear, 1 internal)
Slots	24 (total) / 20 (free) x DIMM 240-pin 2 (total) / 0 (free) x CPU 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile 1 (total) / 0 (free) x FlexibleLOM (x4 mode) 1 (total) / 1 (free) x SD card (internal)
General
Front Accessible Bays Qty	1
Hot-Swap Bays Qty	8
Product Form Factor	Rack-mountable - 1U
Recommended Use	Small business, corporate business
Server Scalability	2-way
Type	Server
Graphics Controller
Graphics Processor	Matrox G200
Type	Integrated
Video Interfaces	VGA
Hard Drive
Type	No HDD
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 3 years - on-site - response time: next business day
Miscellaneous
Compliant Standards	ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, BSMI CNS 13438
Features	Administrator password, power-on password, serial port I/O control
Included Accessories	Rack rail kit
Manufacturer Selling Program	HP Smart Buy
Monitor
Monitor Type	None.
Networking
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	HP 331FLR
Ethernet Ports	4 x Gigabit Ethernet
Features	Wake on LAN (WoL), PXE support
Interface (Bus) Type	PCI Express x4
Remote Management Controller	Integrated Lights-Out 4
Remote Management Protocol	IPMI 2.0, SMASH CLP
Type	Plug-in card
Operating System / Software
OS Certified	SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris, Citrix XenServer
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply - hot-plug
Efficiency	94%
Installed Qty	2
Max Supported Qty	2
Power Provided	460 Watt
Power Redundancy	Yes
Power Redundancy Scheme	1+1
Voltage Required	AC 120/230 V (50/60 Hz)
Processor / Chipset
Clock Speed	2.6 GHz
CPU	Intel Xeon E5-2670
CPU Qty	2
CPU Upgradability	Upgradable
Max CPU Qty	2
Max Turbo Speed	3.3 GHz
Number of Cores	8-core
Processor Main Features	Hyper-Threading Technology, Intel QuickPath Interconnect, Intel Turbo Boost Technology
RAM
Configuration Features	4 x 8 GB
Effective Memory Speed	1600 MHz
Features	Registered, quad channel memory architecture, low-voltage, HP SmartMemory
Form Factor	DIMM 240-pin
Installed Size	32 GB (installed) / 384 GB (max)
Memory Specification Compliance	PC3-12800
RAM Supported	PC3-12800 - 384 GB registered PC3-10600 - 768 GB Load-Reduced PC3-10600 - 128 GB unbuffered - Advanced ECC PC3-10600 - 384 GB HyperCloud
Rated Memory Speed	1600 MHz
Slots	24 (total) / 20 (empty)
Technology	DDR3 SDRAM
Storage Controller
Buffer Size	1 GB
Controller Interface Type	SATA 6Gb/s / SAS 6Gb/s
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Storage Controller Name	Smart Array P420i with 1GB FBWC
Type	1 x RAID - integrated - PCIe 3.0 x8
