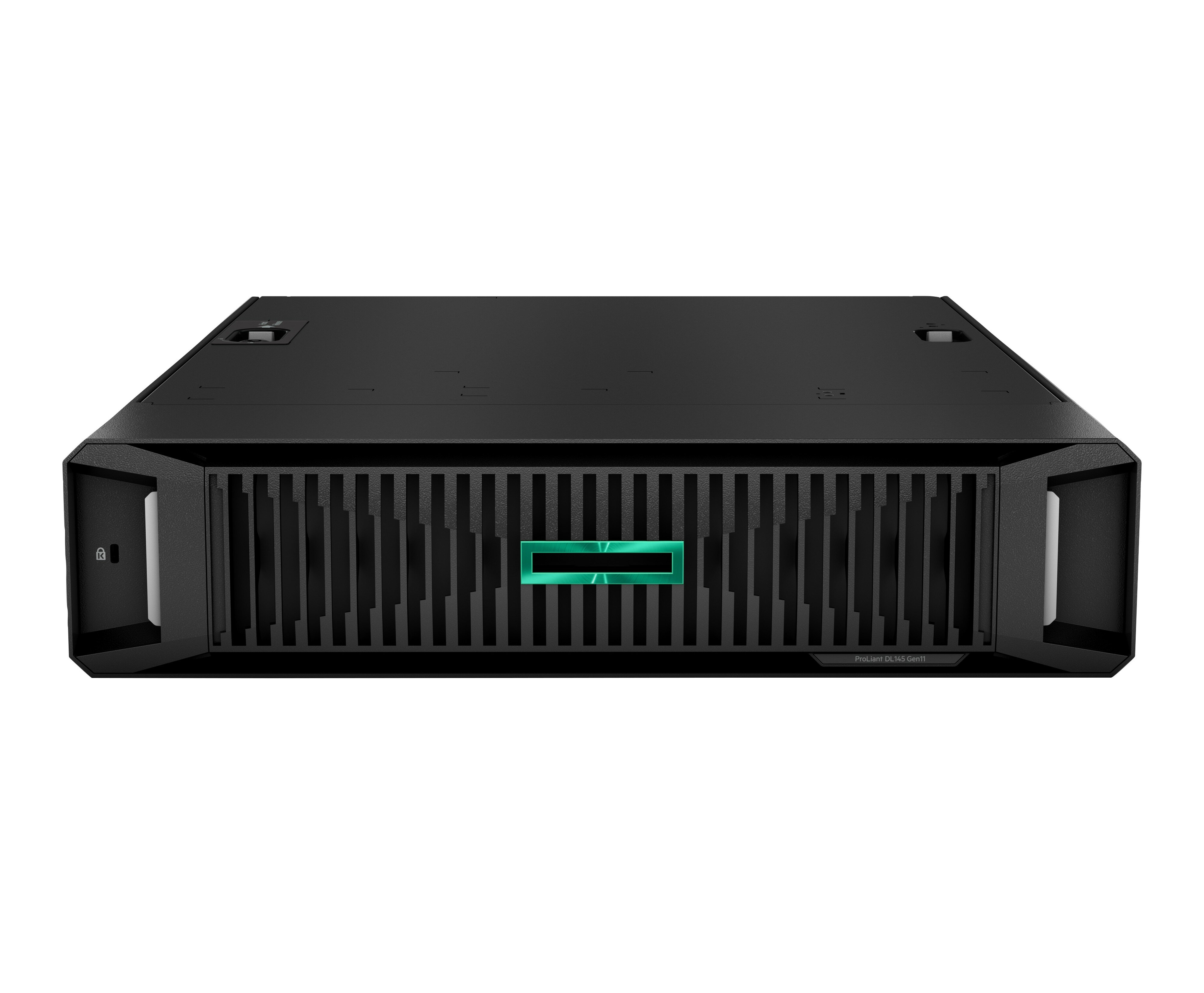

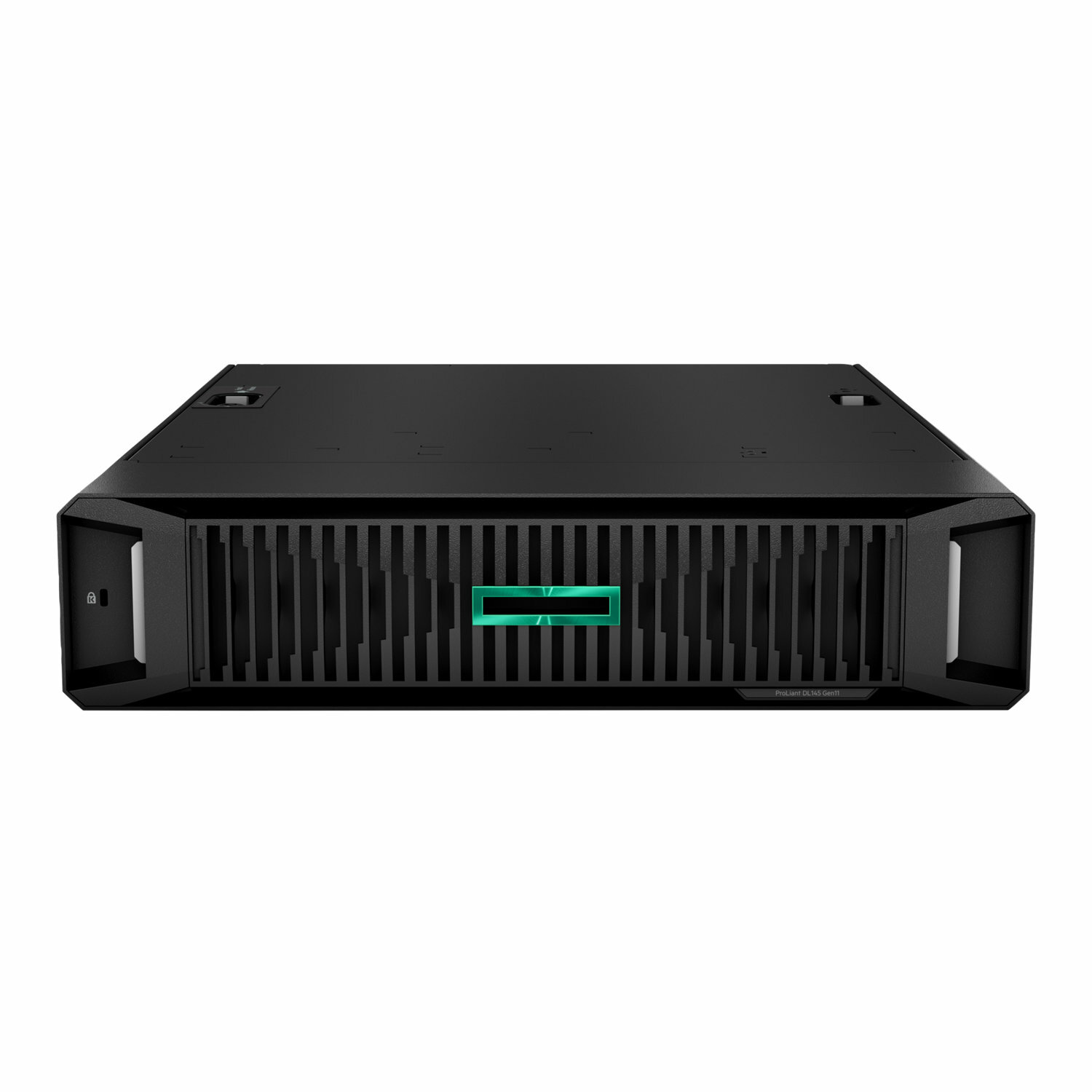

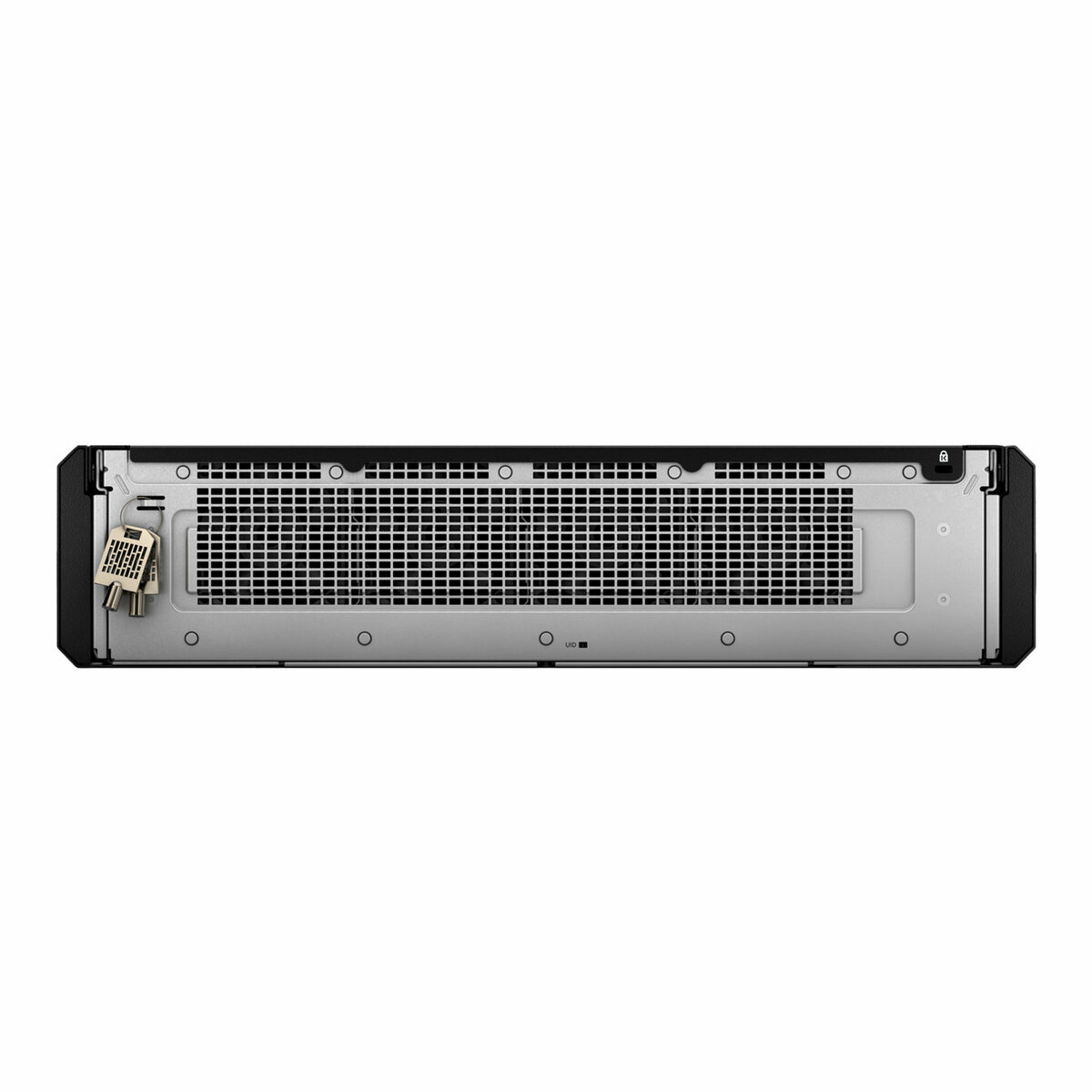

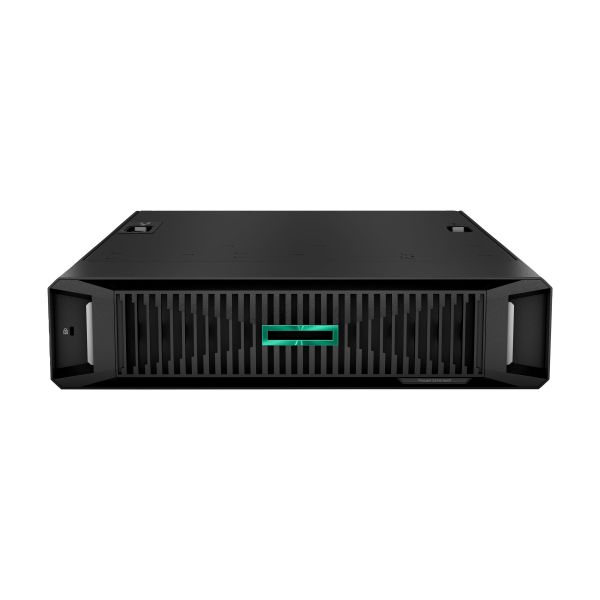

HPE ProLiant DL145 Gen11
EPYC
8005 Zen5 architecture, this server provides up to 84 energy-efficient cores. PCIe Gen5 speed, and high-performance EDSFF storage. It can operate continuously in temperatures ranging from -5°C to 55°C and withstand high-dust and high-vibration environments. It is engineered for today's hybrid world, allowing enterprises to virtualize traditional IT applications to power their businesses and accelerate AI success.
- Shop the HPE Smart Choice purchase program: Our most popular servers, fully configured and ready to JTFp - now! HPE ProLiant DL145 Gen11 server with one AMD EPYC: ™ | 8024P Processor, 16 GB (1x16 GB) Single Rank Memory, support for two SFF drives, four standard fans, one HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD, one HPE ProLiant 700W Flex Slot Platinum Hot Plug Low Halogen Reverse Air Flow AC Power Supply Kit, one TPM (Trusted Platform Module), one HPE Bezel Lock Kit, one HPE ProLiant DL145 Gen11 FIO Bezel Filter Kit, and a 3/3/3 warranty
- Support for 8 to 64 cores and TDP ratings of up to 200W.:
- AMD EPYC: ™ | 8004 processor family, customized for edge computing and environments with physical constraints such as limited power, space, or cooling, 8 to 64 cores, TDP ratings of up to 200W.
- Compact size, 15-inches wide, 16-inches deep (without bezel), 20-inches (with bezel).:
- Support for three single-wide GPUs.:
- Various mounting option — Wall, desk, and rack.:
- Operating temperature support up to to 55° C, bezel with air filter, designed to qualify for NEBS Level 3: 1 | .
- Get Robust Edge Processing Power with a Small Server Footprint: The HPE ProLiant DL145 Gen11 reduces the reliance on cloud infrastructure by tackling a variety of low-latency workloads with efficient processing powered by AMD Siena processors. | The server supports up to 64 cores and offers support for 3x single wide GPUs, customizing its performance for edge workloads while simultaneously delivering more energy efficiency through new EDSFF performance drives. | Additionally, the HPE Integrated Lights Out (iLO) and HPE Compute Ops Management allow for ease of management in a variety of locations. The HPE ProLiant DL145 Gen11 small server footprint puts sustainability efforts top of mind for users.
- Customized for Diverse Portfolio of Edge Computing Environments: The HPE ProLiant DL145 leverages a 2U form factor, providing better cooling operation, airflow, and quiet acoustics. | Measuring approximately 15 inches wide and 16 inches deep, the HPE ProLiant DL145 Gen11 can be rack, wall, or desk mounted, providing flexibility for your unique business environment. | Designed to accommodate a variety of environmental constraints, this server can handle up to 55 degree Celsius operating temperature and can withstand moderate to extreme shocks and vibration. | In locations with heavy amounts of dust and debris, the large air filter of the HPE ProLiant DL145 Gen11 is able to filter out harmful airborne material, keeping your device running efficiently.
- Keeping your Data and Property Safe with Enhanced Security Features: The HPE ProLiant DL145 Gen11 provides the high-quality security features needed to verify your peace of mind. | Hewlett Packard Enterprise cares about keeping your property and data safe, especially at the edge, where data and property are more vulnerable to attack. | Built on the Hewlett Packard Enterprise signature silicon root of trust, HPE iLO 6, IDevID, and platform certificates, you can be sure your data is being protected from outside threats. | Chassis Intrusion detection with bezel and Kensington locks keep your device safe from unwarranted theft or intrusions.
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant DL145 Gen11 - Server - rack-mountable 2U - 1-way - 1 x EPYC 8024P / up to 3 GHz - RAM 16 GB - hot-swap 2.5" bay(s) - SSD 480 GB - Gigabit Ethernet - no OS - monitor: none - HP Smart Choice |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $5,464.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Dimensions & Weight / Depth | 50.74 cm |
| Dimensions & Weight / Height | 8.75 cm |
| Dimensions & Weight / Weight | 11.81 kg |
| Dimensions & Weight / Width | 38.44 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 480 GB |
| Header / Brand | HPE |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.4 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | 8-core |
| Processor / Processor Number | 8024P |
| Processor / Type | EPYC |
| RAM / Data Integrity Check | Advanced ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 480 GB |
| System / Type | Server |
| Cache Memory | |
| Cache Per Processor | 32 MB |
| Installed Size | L3 cache - 32 MB |
| Dimensions & Weight | |
| Depth | 50.74 cm |
| Height | 8.75 cm |
| Weight | 11.81 kg |
| Width | 38.44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Front Accessible Bays Qty | 2 |
| Hot-Swap Bays Qty | 2 |
| Localization | Region: North America |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 1-way |
| Type | Server |
| Graphics Controller | |
| Video Interfaces | DisplayPort |
| Video Memory | 16 MB |
| Hard Drive | |
| Capacity | 1 x 480 GB |
| Type | SSD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | AES, Triple DES, NEBS, IPv6 Ready, PCI DSS, TLS v1.2, low halogen, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1, UL 62368-1, Redfish API, UEFI, SMBIOS 3.1, FIPS 140-3, PCIe 5.0, UEFI 2.7, APML 1.0, DMTF, Active Directory v1.0, UEFI Class 3 |
| Included Accessories | 4 standard fans |
| Manufacturer Selling Program | HP Smart Choice |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Remote Management Controller | Integrated Lights-Out 6 |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | HPE iLO Advanced, HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced Premium Security Edition |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Provided | 700 watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V |
| Processor / Chipset | |
| Clock Speed | 2.4 GHz |
| CPU | AMD EPYC 8024P |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 3 GHz |
| Number of Cores | 8-core |
| Processor Main Features | 16 Threads |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 4800 MT/s |
| Features | Registered, HPE SmartMemory |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 768 GB (max) |
| Rated Memory Speed | 4800 MT/s |
| Slots | 6 (total) / 5 (empty) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
| EPEAT Compliant | EPEAT Bronze |
