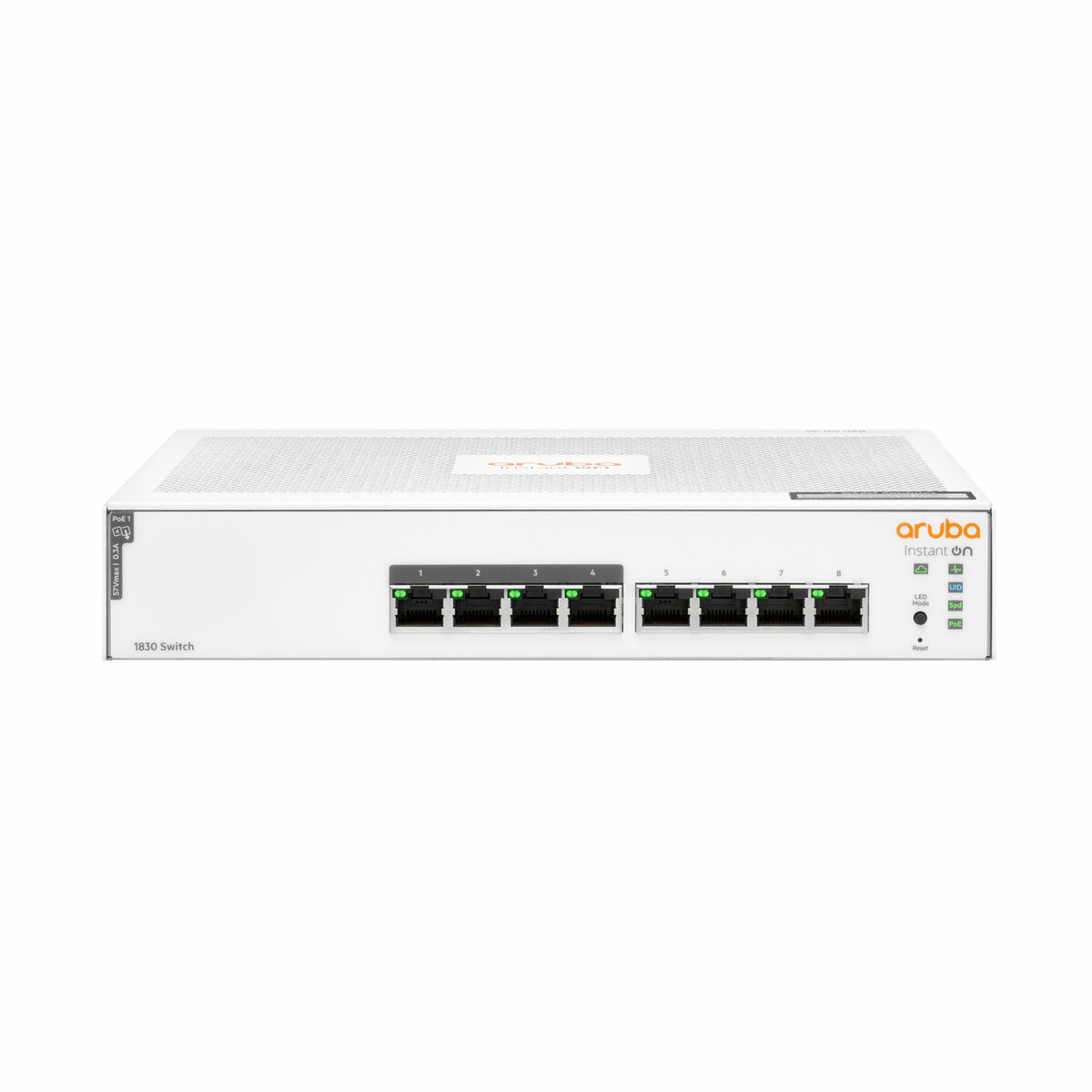

HPE Networking Instant On 1830 8G 4p Class4 PoE 65W Switch

Be the first to review this product

Availability: In stock

SKU

JL811A#ABA

UPC Code

190017524146

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

HPE Networking Instant On Switch 1830 series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications. This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses?looking for cost-effective wired infrastructure to keep up?with evolving network demands.?These entry-level, smart-managed switches?offer?Layer 2 switching capabilities,?Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.

Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.:
Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.:
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.:
Two and four dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.:
Option to manage your switches through local web GUI.:
Cost-effective PoE support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.:
Gigabit Connectivity for Small Businesses: HPE Networking Instant On Switch 1830 is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Class 4 PoE models. | Two and four dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network. | With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices. | 8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.
Simplify Network Deployment and Management: The HPE Networking Instant On Switch 1830 series features easy-to-use, out-of-the-box, plug-and-play deployment. | The switches can be deployed using two management modes - HPE Networking Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI. | Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.
Keep Your Business Protected with Integrated Security Features: The HPE Networking Instant On Switch 1830 series is enhanced with security features such as VLANs, automatic Denial-of-service protection, Global Storm Control, and TPM (Trusted Platform module) based security to guard your network from unwanted or unauthorized access. | Global Storm Control protects against conditions where incoming packets flood the LAN, causing network performance degradation for unicast traffic with an unknown destination, and for broadcast and multicast traffic. | Includes a Trusted Platform Module (TPM) for protected hardware-based generation and storage of cryptographic keys used for connection to the HPE Networking Instant On cloud portal.
Better Energy Efficient Features for Reducing Environmental Footprint: The HPE Networking Instant On Switch 1830 series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity. | Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption. | Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments. | PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).

Specifications

General Information
Category	Switch matrixes
Description	HPE Networking Instant On 1830 8G 4p Class4 PoE 65W Switch - Switch - smart - 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) - desktop, rack-mountable - PoE+ (65 W)
Manufacturer	Hewlett Packard Enterprise
MSRP	$252.00
UNSPSC	43222612
Main Specifications
Dimensions & Weight / Depth	19.51 cm
Dimensions & Weight / Height	4.39 cm
Dimensions & Weight / Weight	1.54 kg
Dimensions & Weight / Width	24.51 cm
Header / Brand	HPE
Header / Country Kits	United States
Header / Localization	English
Miscellaneous / Product Color	White
Networking / Form Factor	Desktop Rack-mountable
Networking / Ports Qty	8
Networking / Type	Switch
Packaged Quantity	1
Service & Support / Type	Limited lifetime warranty
Dimensions & Weight
Depth	19.51 cm
Height	4.39 cm
Weight	1.54 kg
Width	24.51 cm
Environmental Parameters
Humidity Range Operating	15 - 95% (non-condensing)
Humidity Range Storage	15 - 95% (non-condensing)
Max Operating Temperature	40 °C
Max Storage Temperature	70 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-40 °C
Expansion / Connectivity
Interfaces	4 x 1000Base-T RJ-45 4 x 1000Base-T RJ-45 PoE+
General
Compliant Standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at
Device Type	Switch - 8 ports - smart
Enclosure Type	Desktop, rack-mountable 1U
Encryption Algorithm	SSL
Features	Auto-sensing per device, 1.5MB packet buffer, fanless, wall mountable, Cable Diagnostics Function, event log, Syslog support, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, flow control, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN support, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud managed, DHCP client, firmware upgradable, QoS, SNTP support
Flash Memory	256 MB
Jumbo Frame Support	9216 bytes
MAC Address Table Size	8000 entries
Performance	Latency (100 Mbps): 5.2 µs Latency (1 Gbps): 2.8 µs Throughput: 11.9 Mpps Switching capacity: 16 Gbps
PoE Budget	65 W
Ports	4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)	PoE+
Processor	1 x ARM: 800 MHz
RAM	512 MB SDRAM
Remote Management Protocol	HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP
Routing Protocol	IGMP, IGMPv2
Status Indicators	Port status, link/activity, speed, port duplex mode
Subtype	Gigabit Ethernet
Manufacturer Warranty
Service & Support	Limited warranty - lifetime Technical support - live chat - lifetime Technical support - phone consulting - 90 days from date of purchase
Miscellaneous
Compliant Standards	AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32 Class A, CISPR 35, CNS 13438 Class A, EN 55032:2015, EN 55035, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IEC/EN 60825-1:2014 Class 1, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KN32 Class A, KN35, UL 62368-1 Second Edition, UL 62368-1 Third Edition, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, EN 61000-3-3
Localization	English / United States
MTBF	105.9 years
Power
Power Consumption Operational	86.07 Watt
Power Device	Internal power supply
Voltage Required	AC 100-240 V (50/60 Hz)
