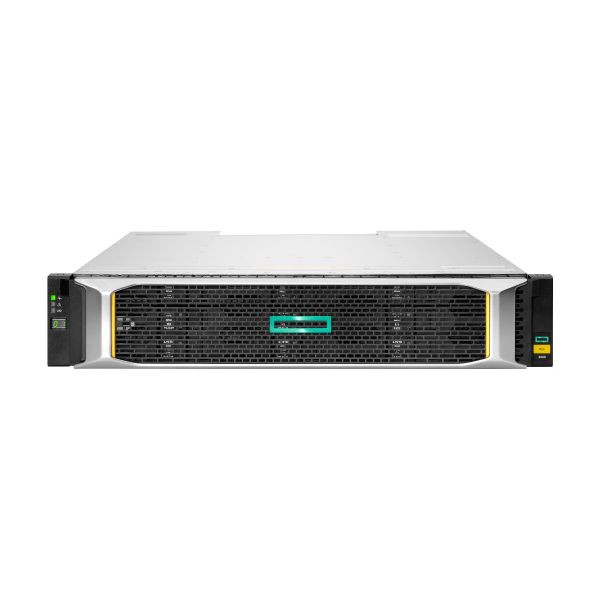

HPE Modular Smart Array 2060 LFF 2x16Gb FC 4-port Controller Storage Array
Is your company looking for easy-to-use, affordable, and high-performance shared storage? The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don't let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new HPE MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads.









- Customer configurable HPE MSA 2060 storage array models and storage media options available through the HPE Smart Choice program.:
- HPE Smart Choice MSA Gen6 storage array bundles with up to 240 TB of raw storage capacity included, supporting 16 Gb Fibre Channel, 10 GbE iSCSI, and 12 Gb SAS host connectivity.:
- MSA Gen6 HDD and SSD media options supporting an increase in MSA 2060 raw capacity of up to a maximum of 7.37 PB.:
- All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.:
- Accelerate Applications Affordably: The HPE MSA 2060 Storage is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses. | 1 | The HPE MSA 2060 Storage allows users to define and deploy hybrid or flash storage configurations from day one and grow as their needs change.
- HPE MSA’s "Set It and Forget It" Data Services Do Not Require a Dedicated Storage Administrator: The HPE MSA 2060 Storage is easy to install, easy to use, and easy to maintain, even for an IT generalist. Administrators will find the MSA 2060’s new Storage Management Utility intuitive and easy to navigate. | HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real time.
- Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster: The HPE MSA 2060 Storage delivers virtualized snapshot technology, making data protection and instant recovery a snap. | Remote replication via Fibre Channel (FC) or iSCSI facilitates an affordable disaster recovery solution. | Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.
- Flexible, Modular Architecture That Facilitates Growth into the Future: The HPE MSA 2060 Storage solution supports a mixture of 3.5-inch LFF and 2.5-inch SFF expansion enclosures for a maximum of nine enclosures (10 total including the array). | Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs, or Midline SAS HDDs.
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | HPE Modular Smart Array 2060 LFF 2x16Gb FC 4-port Controller Storage Array - Hard drive array - 0 TB - 12 bays (SAS-3) - 16Gb Fibre Channel (external) - rack-mountable - 2U - Smart Choice |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $9,020.00 |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.8 cm |
| Dimensions & Weight / Height | 8.9 cm |
| Dimensions & Weight / Weight | 5 kg |
| Dimensions & Weight / Width | 48.3 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface | 16Gb Fibre Channel |
| Storage / HDD Array External Interface Class | Fibre Channel |
| Storage / Rack-mountable | Rack-mountable |
| Storage / Total Array Capacity | 0 TB |
| Storage / Type | Hard drive array |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SAS-3 |
| Dimensions & Weight | |
| Depth | 50.8 cm |
| Height | 8.9 cm |
| Weight | 5 kg |
| Width | 48.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | Up to 85% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) - 3.5" LFF |
| Interfaces |
|
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Miscellaneous | |
| Compliant Standards | ASHRAE Class A3, UL, CSA 62368-1, EN 62368-1, EU Lot 9, VCCI Class A, FCC Class A certified, ICES-003 Class A, EN 55032 Class A, CISPR 32 Class A, EN 61000-3-2, EN 61000-3-3, RoHS, China RoHS, WEEE |
| Features | SMTP support, SNMP support |
| Included Accessories | Rack mounting kit, 2 x PDU cords (IEC C14) |
| Manufacturer Selling Program | HPE Smart Choice |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Max Supported Qty | 2 |
| Power Device | 2 x internal power supply - hot-plug |
| Power Provided | 580 watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V 50/60 Hz |
| Processor | |
| CPU | No CPU |
| Storage | |
| HDD Array External Interface | 16Gb Fibre Channel |
| Max Supported Capacity | 288 TB |
| Total Array Capacity | 0 TB |
| Storage Controller | |
| Data Transfer Rate | 1.2 GBps |
| Installed Qty | 2 |
| Interface Type | SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, MSA-DP+ |
| Type | RAID (16Gb Fibre Channel) |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| System Requirements | |
| OS Required | Microsoft Windows Server 2022, Microsoft Windows Server 2019, Microsoft Windows Server 2016, VMware vSphere 6.7 (ESXi), Red Hat Linux 8.0, SUSE Linux Enterprise Server 15 |
