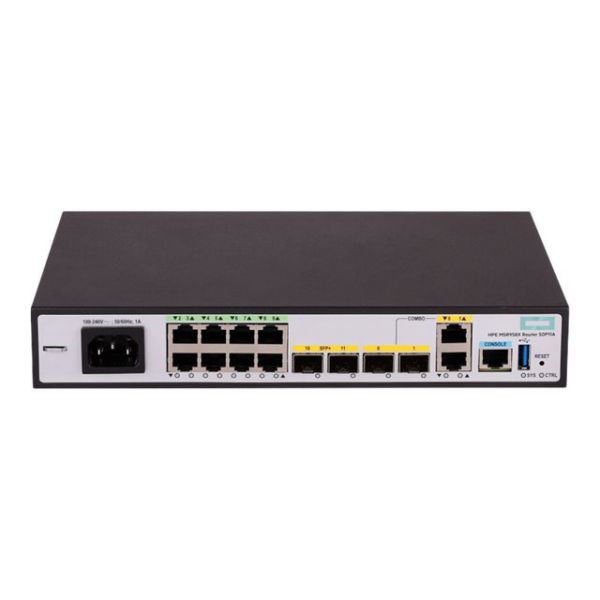

HPE FlexNetwork MSR958X

Be the first to review this product

Availability: Out of stock

SKU

S0P11A#ABA

UPC Code

190017640754

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The HPE MSR95x router series delivers high-performance, small branch routing in a single, cost-optimized form factor. Featuring integrated routing, switching, wireless, security, and voice with no additional licensing, boost your service delivery while simplifying the management of the corporate wide area network (WAN). This series is flexible to deploy, with Zero Touch Provisioning and with LTE connectivity. With Comware v7 and fiber connections, the MSR95x also brings the performance and advanced services available on modular routers, such as IPS and high encryption, to a fixed port form factor.

Specifications

General Information
Category	Routers
Description	HPE FlexNetwork MSR958X - Router 8-port switch - 1GbE - WAN ports: 6 - rack-mountable
Manufacturer	Hewlett Packard Enterprise
MSRP	$2,247.00
UNSPSC	43222609
Main Specifications
Dimensions & Weight / Depth	4.36 cm
Dimensions & Weight / Height	26.1 cm
Dimensions & Weight / Weight	1.2 kg
Dimensions & Weight / Width	16.1 cm
Header / Brand	HPE
Header / Country Kits	United States
Header / Localization	English
Miscellaneous / Product Color	Gray White
Networking / Connectivity Technology	Wired Wireless
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Data Transfer Rate	10 Gbps
Networking / Form Factor	Rack-mountable
Networking / Type	Router
Networking / Wireless Protocol	802.11b/g/n
OS Provided / Type	Comware v9
Packaged Quantity	1
Service & Support / Type	1-year warranty
Dimensions & Weight
Depth	4.36 cm
Height	26.1 cm
Weight	1.2 kg
Width	16.1 cm
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	45 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	WAN: 4 x Ethernet 1000 - SFP (mini-GBIC) WAN: 2 x Ethernet 1000 - RJ-45 LAN: 8 x Ethernet 1000 - RJ-45 1 x USB 2.0 1 x console - RJ-45
General
Authentication Method	Secure Shell (SSH), RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2)
Capacity	VPN tunnels: 100 IPv4 routing table entries: 200000 IPv6 routing table entries: 200000 IPv4 forwarding table entries: 200000 IPv6 forwarding table entries: 200000
Compliant Standards	IEEE 802.2, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, ETSI, EN55022, ICES-003 Class B, FCC Part 68 / CS03 Issue 8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FDA, FCC CFR47 Part 15 B, EN 60825-1, X.509, AS/NZS 60950, ANSI C63.4, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 61000-4-11:2004, EMC 2004/108/EC, EN 300 386 V1.3.3, AS/NZS CISPR 22 Class B, CAN/CSA-C22.2 No. 60950-1, EN 55024:1998+A1:2001+A2:2003
Connectivity Technology	Wired, wireless
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Data Transfer Rate	10 Gbps
Device Type	Router - 8-port switch (integrated)
Enclosure Type	Rack-mountable
Encryption Algorithm	DES, Triple DES, MD5, AES, TLS, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
Features	Layer 3 switching, layer 2 switching, NAT support, VPN support, VLAN support, traffic shaping, port mirroring, IPS, WFQ, WRED, sFlow, STP support, RSTP support, MSTP support, tunneling, ACL support, QoS, CAR, LFI, URPF, DHCP relay, MIB, port isolation, packet storm protection, CoS, Loopback, DVPN, MBGP, EtherIP, ToS, GDVPN, RED, ICMP IRDP, MIB II, SSM
Flash Memory	4 GB
Network / Transport Protocol	TCP/IP, UDP/IP, L2TP, RSVP, APPN, NTP, ICMP/IP, IPSec, AAL5, ARP, FTP, DHCP, PAP, SFTP
Performance	Throughput (64-byte packet size): up to 3 Mbps
Processor	1 x Marvell ARM64 1.6 GHz
RAM	2 GB
Remote Management Protocol	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, CLI
Routing Protocol	OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, IGMPv3, GRE, OSPFv3, Bidirectional PIM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, RIPng, BGP-4+, MPLS, CIDR, BGP+, URPF
Status Indicators	System, VPN, SD card
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Localization	English / United States
Power
Power Consumption Operational	36 watt
Power Device	Internal power supply
Voltage Required	AC 100-240 V
Software / System Requirements
OS Provided	Comware v9
