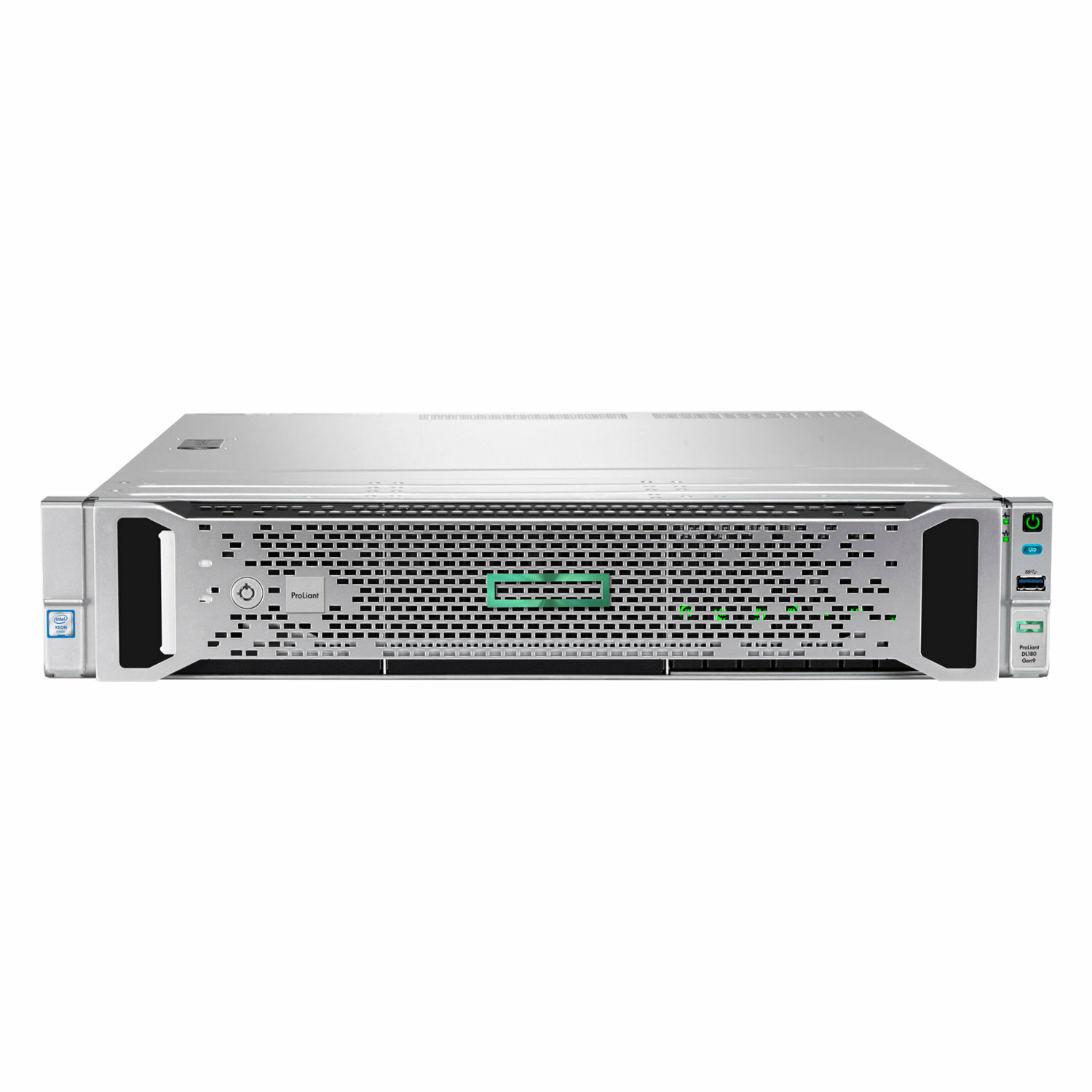

HPE ProLiant DL180 Gen9

Be the first to review this product

Availability: Out of stock

SKU

860134-S01

UPC Code

190017060866

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Do you need a cost-effective server that can keep pace with your data growth while providing options to manage and deliver performance? The HPE ProLiant DL180 Gen9 Server delivers an optimized 2U server, designed with the right balance of expandability, performance, reliability and manageability all in a new compact chassis, making it the ideal platform for SMBs and Enterprises running the "New Style of IT", applications such as Hadoop, Cloud and mobility applications which need right mix of compute and storage.

HPE ProLiant DL180 Gen9 rack server with one Intel: ® | Xeon | ® | E5-2609 v4 processor, 32 GB memory, and two 900W power supplies
Build a fully functional server with ClearOS that is just right for you at no upfront cost. For more information, check the ClearOS link on the right.:
Scalability and Performance To Meet the New Standard of Growing Data Center Needs: The HPE ProLiant DL180 Gen9 Server provides ample storage capacity on demand with drive configurations ranging from (4) to (12) Large Form Factor (LFF) or (8) to (16) Small Form Factor (SFF) HPE SmartDrives, with flexibility of LFF non-hot plug (NHP) options at the right economics. | It supports up to two Intel | ® | Xeon | ® | processor E5-2600 v3/v4 processors with up to (12) cores and (16) DIMM slots of HPE DDR4 SmartMemory offering improved performance and efficiency. | Comes standard with 2x1GbE and choice of HPE FlexibleLOM or PCIe standup 1GbE or 10GbE Adapters provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs. | Up to six PCIe 3.0 riser slots to support a wide range of GPUs and networking cards offering increased IO bandwidth and seamless expandability. | Embedded SATA HPE Dynamic Smart Array B140i Controller for boot and data. Choice of HPE Smart Array Controllers with increased performance, data availability with 12 Gb/s SAS technology or HPE Smart HBAs with reliable high performance SAS connectivity capable of running HBA mode or simple RAID mode.
High Availability and Efficiency for Dense Storage Applications: The HPE ProLiant DL180 Gen9 Server supports HPE SmartDrive technology which improves serviceability and prevents data loss with features, such as, self-describing LEDs and a Do Not Remove icon. | HPE SmartMemory prevents data loss and downtime with enhanced error handling. Support of up to 512 GB max capacity with speeds up to 2133 MHz with up to 14% | 1 | performance gain. | 80 PLUS certified entry-level redundant HPE Power Supplies provide up to 92% efficiency which combined with HPE power management features leads to reduction of power consumption. | Improved ambient temperature standard with ASHRAE A3 and A4 | 2 | helps customers reduce cooling expense. | ENERGY STAR | ® | qualified server configurations illustrate a continued commitment to helping customers conserve energy and save money.
Agile Infrastructure Management for Accelerating IT Service Delivery: With HPE ProLiant DL180 Gen9 Server, HPE OneView provides infrastructure management for automation simplicity across servers, storage and networking. | Online personalized dashboard for converged infrastructure health monitoring and support management with HPE Insight Online. | Configure in UEFI boot mode, provision local and remote with Intelligent Provisioning and Scripting Toolkits. | Embedded management to deploy, monitor and support your server remotely, out of band with HPE iLO. | Optimize firmware and driver updates and reduce downtime with Smart Update, consisting of SUM (Smart Update Manager) and SPP (Service Pack for ProLiant).

Specifications

General Information
Category	Servers
Description	HPE ProLiant DL180 Gen9 - Server - rack-mountable - 2U - 2-way - 1 x Xeon E5-2609V4 / 1.7 GHz - RAM 32 GB - SATA/SAS - hot-swap 3.5" bay(s) - no HDD - G200eH2 - GigE - monitor: none - Smart Buy
Manufacturer	Hewlett Packard Enterprise
MSRP	$2,049.00
UNSPSC	43211501
Main Specifications
Chassis / Form Factor	Rack-mountable
Chassis / Server Storage Bays	Hot-swap
Chassis / Server Swappable Drive Interface	SATA/SAS
Dimensions & Weight / Depth	60.7 cm
Dimensions & Weight / Height	8.75 cm
Dimensions & Weight / Weight	16.59 kg
Dimensions & Weight / Width	44.55 cm
Display / Type	None.
Header / Brand	HPE
Mainboard / Chipset Type	Intel C612
Miscellaneous / Product Color	Silver
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
Packaged Quantity	1
Processor / Clock Speed	1.7 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	8-core
Processor / Processor Number	E5-2609V4
Processor / Type	Xeon
RAM / Data Integrity Check	Advanced ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Specification Compliance	PC4-19200
RAM / Memory Speed	1866 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	0 GB
System / Type	Server
Video Output / Graphics Processor	Matrox G200eH2
Cache Memory
Cache Per Processor	20 MB
Installed Size	L3 cache - 20 MB
Dimensions & Weight
Depth	60.7 cm
Height	8.75 cm
Weight	16.59 kg
Width	44.55 cm
Environmental Parameters
Humidity Range Operating	8 - 90% (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Sound Emission	39 dBA
Expansion / Connectivity
Bays	8 (total) / 8 (free) x 3.5" LFF 1 (total) / 1 (free) x external
Interfaces	2 x LAN (Gigabit Ethernet) - RJ-45 1 x HPE iLO - RJ-45 1 x VGA 1 x USB 2.0 (1 in front) 3 x USB 3.0 (2 rear, 1 internal)
Slots	2 (total) / 1 (free) x CPU 16 (total) / 14 (free) x DIMM 288-pin 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height 1 (total) / 1 (free) x microSD Card (internal)
General
Embedded Security	Trusted Platform Module (TPM 1.2) Security Chip
Front Accessible Bays Qty	1
Hot-Swap Bays Qty	8
Product Form Factor	Rack-mountable - 2U
Server Scalability	2-way
Type	Server
Graphics Controller
Graphics Processor	Matrox G200eH2
Video Interfaces	VGA
Hard Drive
Type	No HDD
Manufacturer Warranty
Service & Support	Limited warranty - parts - 3 years - response time: next business day Limited warranty - labor - 1 year - on-site - response time: next business day
Miscellaneous
Compliant Standards	ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 4943, GB 9254, CNS 14336, CNS 13438
Included Accessories	HPE Easy Install Rails
Manufacturer Selling Program	HP Smart Buy
Monitor
Monitor Type	None.
Networking
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	HP 361i
Ethernet Ports	2 x Gigabit Ethernet
Features	Wake on LAN (WoL), PXE support
Interface (Bus) Type	PCI Express 2.0 x2
Remote Management Controller	Integrated Lights Out Management (ILOM)
Operating System / Software
OS Certified	SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris
Optical Storage
Type	No optical drive
Power
Device Type	Power supply
Efficiency	89%
Installed Qty	2
Power Provided	900 watt
Voltage Required	AC 120/230 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel C612
Clock Speed	1.7 GHz
CPU	Intel Xeon E5-2609V4
CPU Qty	1
CPU Upgradability	Upgradable
Max CPU Qty	2
Number of Cores	8-core
RAM
Configuration Features	2 x 16 GB
Effective Memory Speed	1866 MHz
Features	Registered, HP SmartMemory
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 256 GB (max)
Memory Specification Compliance	PC4-19200
RAM Supported	PC4-19200 - 256 GB registered - ECC PC4-19200 - 512 GB Load-Reduced - ECC
Rated Memory Speed	2400 MHz
Slots	16 (total) / 14 (empty)
Technology	DDR4 SDRAM - Advanced ECC
Storage Controller
Channel Qty	8
Controller Interface Type	SATA 6Gb/s / SAS 12Gb/s
RAID Level	RAID 0, RAID 1, RAID 5
Storage Controller Name	HP H240 Smart Host Bus Adapter
Type	1 x RAID
