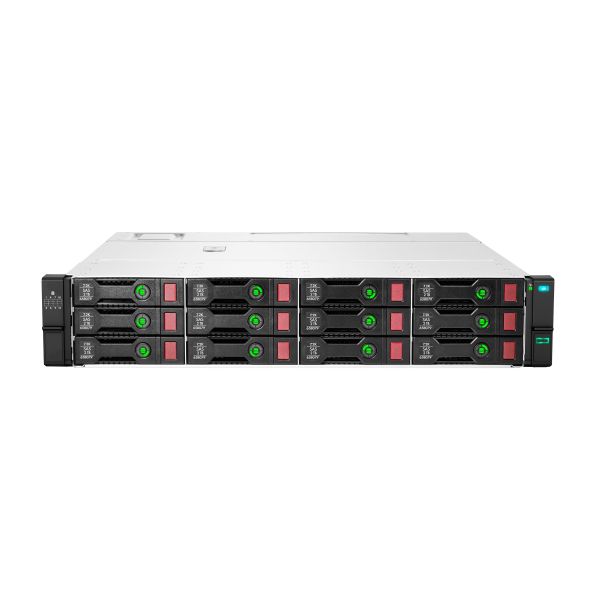

HPE D3610 ENCLOSURE PL-LI

Availability: Out of stock
SKU
Q1J09B
UPC Code
190017645940
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
Has your business exceeded your storage capacity? Manage your small and midrange business growing storage needs by deploying the HPE D3000 Enclosures, the next generation 12 Gb SAS low-cost, high-capacity, tiered external storage system. The HPE D3000 Enclosures are ideal for your small application environments, remote offices and departmental locations. The 12 Gb SAS enclosures - large form factor (LFF) D3610 with 12 drive bays and small form factor (SFF) D3710 with 25 drive bays offer flexible, modular solutions to simplify capacity expansion of HPE ProLiant server and HPE BladeSystem environments to external storage without having to make the full move to SAN or NAS. This allows you to buy what is needed today and purchase additional capacity as data storage needs grow. HPE D3000 enclosures support HPE SmartDrive Carriers. Buy and maintain a common set of HPE ProLiant drives for Gen10, Gen10+ and Gen11 ProLiant Servers. Total support can grow up to 96 LFF or 200 SFF drives.

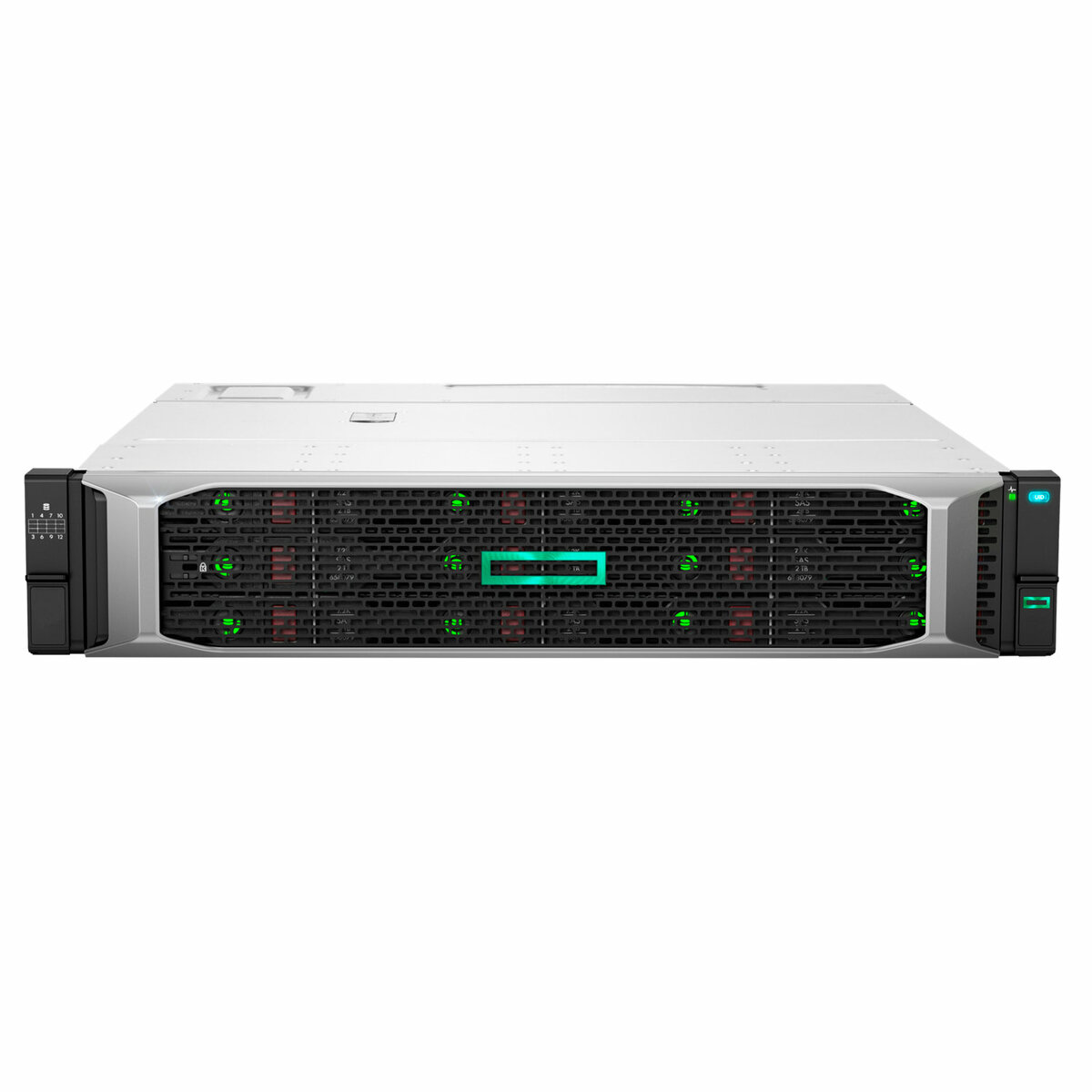

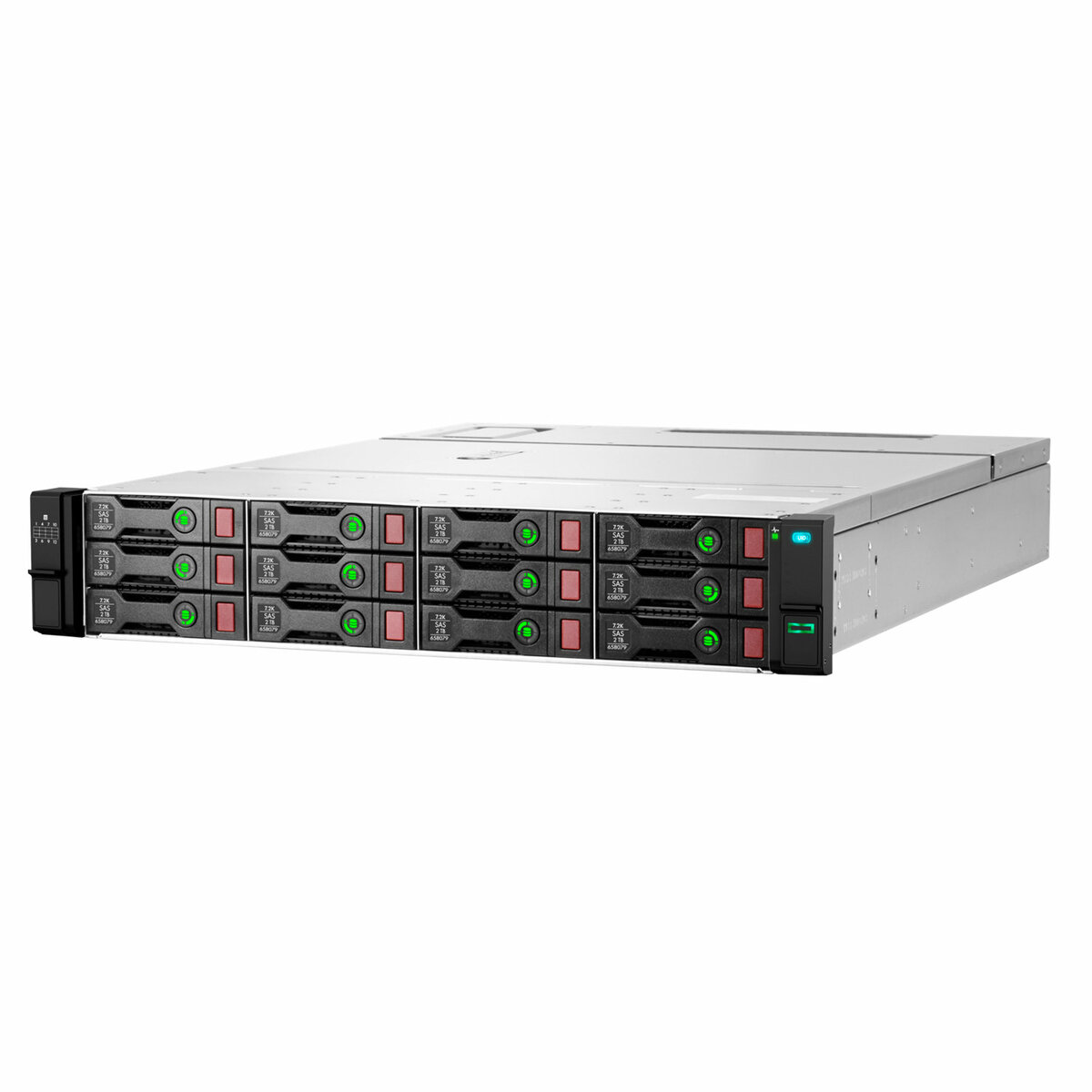

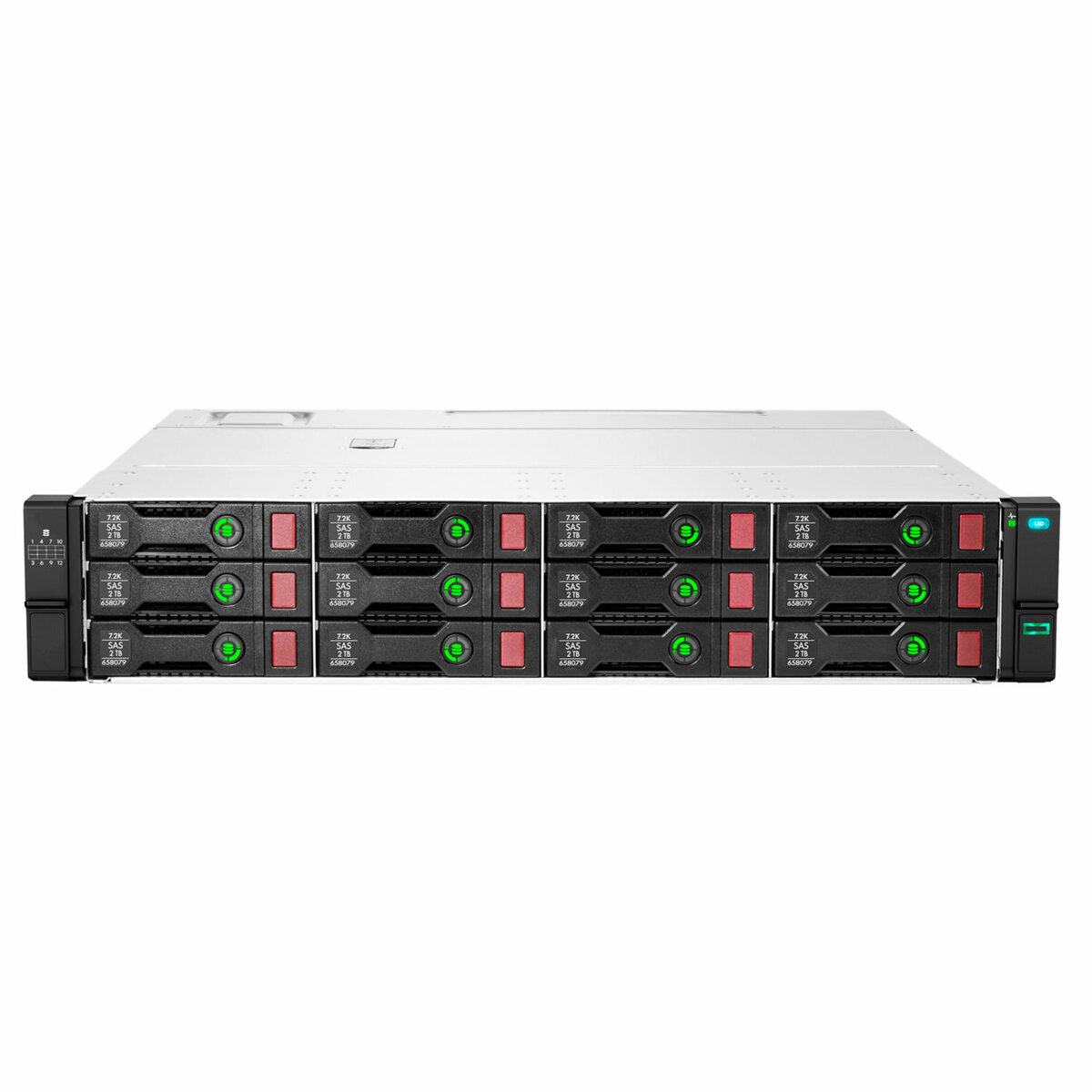

Product image Q1J09B
Product image Q1J09B
Product image Q1J09B
Product image Q1J09B
Product image Q1J09B
  • Updated power supplies that meet the requirements of the EU's Lot9 2023 regulations:
  • Bundled SKUs with enclosure plus drives will not be offered with "B" SKUs:
  • Affordable Storage for Capacity Demand: HPE D3000 Enclosures 12 Gb SAS provides a higher level of redundancy and reliability, reducing single-points-of-failure within the storage network. | The modular platform provides investment protection by allowing purchases based on your current need and future plans without hidden management fees. | Increase your data speed with enterprise-class, dual-port SAS drives as need and budget dictate. | The HPE D3610 and HPE D3710 standardizing on Gen10 branding/industrial design to align with HPE ProLiant Gen10/Gen10+ Servers.
  • Flexible and Scalable with Room to Expand: The HPE D3000 Enclosures give you the flexibility to mix and match SAS, SATA and Solid State drives in the same enclosure, and extend the benefit of tiered storage to your customers. | Designed to give you room to expand as your storage demands increase, the HPE D3610 LFF can grow to 96 drives by daisy-chaining up to eight HPE D3610 LFF enclosures from a single controller port. | With the HPE D3710 SFF you can increase to 200 drives or up to eight HPE D3710 SFF enclosures from a single controller port. | Smart Array Controllers allow mixing D3600 or the D3610 and the D3700 or the D3710 enclosures for expansion, up to four D3600 or D3610 and four D3700 or D3710 (4x LFF and 4x SFF) allowing for expansion up to 148 drives. | Solid state drive support for up to 25 drives per Smart Array Controllers on all HPE D3000 models.
  • Easy to Manage: The HPE D3000 Enclosures support the HPE SmartDrive Carrier, enabling a single set of common drives for Gen10 and Gen 10+ ProLiant servers and D3000 Enclosures. | The HPE D3000 Enclosures uses familiar HPE ProLiant management tools including HPE Systems Insight Manager and the HPE Array Configuration Utility (ACU) software. | The HPE D3000 Enclosures are compatible with selected HPE Smart Array SAS Controllers and HBAs. | Little IT expertise is required to manage the enclosures.
  • Software-Defined Storage: Microsoft Windows 2012 Storage Spaces support Gen9 ProLiant servers and H241 HBA.
General Information
CategoryServers
DescriptionHPE D3610 ENCLOSURE PL-LI
ManufacturerHPE - STORAGE
MSRP$3,399.00
UNSPSC43211501
Main Specifications
Height12.10
Length36.00
UPC4549821514243
Width23.10
Chassis
Installed Devices / Modules Qty12
Supported Devices / Modules Qty12
Supported DrivesSATA-600 / SAS-3
Dimensions & Weight
Depth59.8 cm
Height8.7 cm
Weight17.2 kg
Width44.8 cm
Dimensions & Weight (JTFpping)
JTFpping Depth60.3 cm
JTFpping Height28.3 cm
JTFpping Weight35.38 kg
JTFpping Width96.8 cm
Environmental Parameters
Humidity Range Operating10 - 90%
Max Operating Temperature40 °C
Min Operating Temperature10 °C
Sound Emission53 dBA
Expansion / Connectivity
Expansion Bays12 (total) / 12 (free) x hot-swap - 3.5" LFF
Interfaces1 x SAS 12Gb/s
General
Device TypeStorage enclosure
Enclosure TypeRack-mountable - 2U
Hard Drive
TypeNo HDD
Manufacturer Warranty
Service & SupportLimited warranty - parts - 3 years
Miscellaneous
Cables Included2 x mini SAS HD cable - 0.5 m
Features96% efficiency power supply, redundant fans
Included AccessoriesRack mounting kit, 2 x PDU interconnect cords
Power
80 PLUS Certification80 PLUS Platinum
Max Supported Qty2
Power Device2 x internal power supply - hot-plug
Power Provided550 Watt
Power RedundancyYes
Power Redundancy Scheme1+1
Voltage RequiredAC 100-240 V 50/60 Hz
Processor
CPUNo CPU
Storage
Max Supported Capacity120 TB
