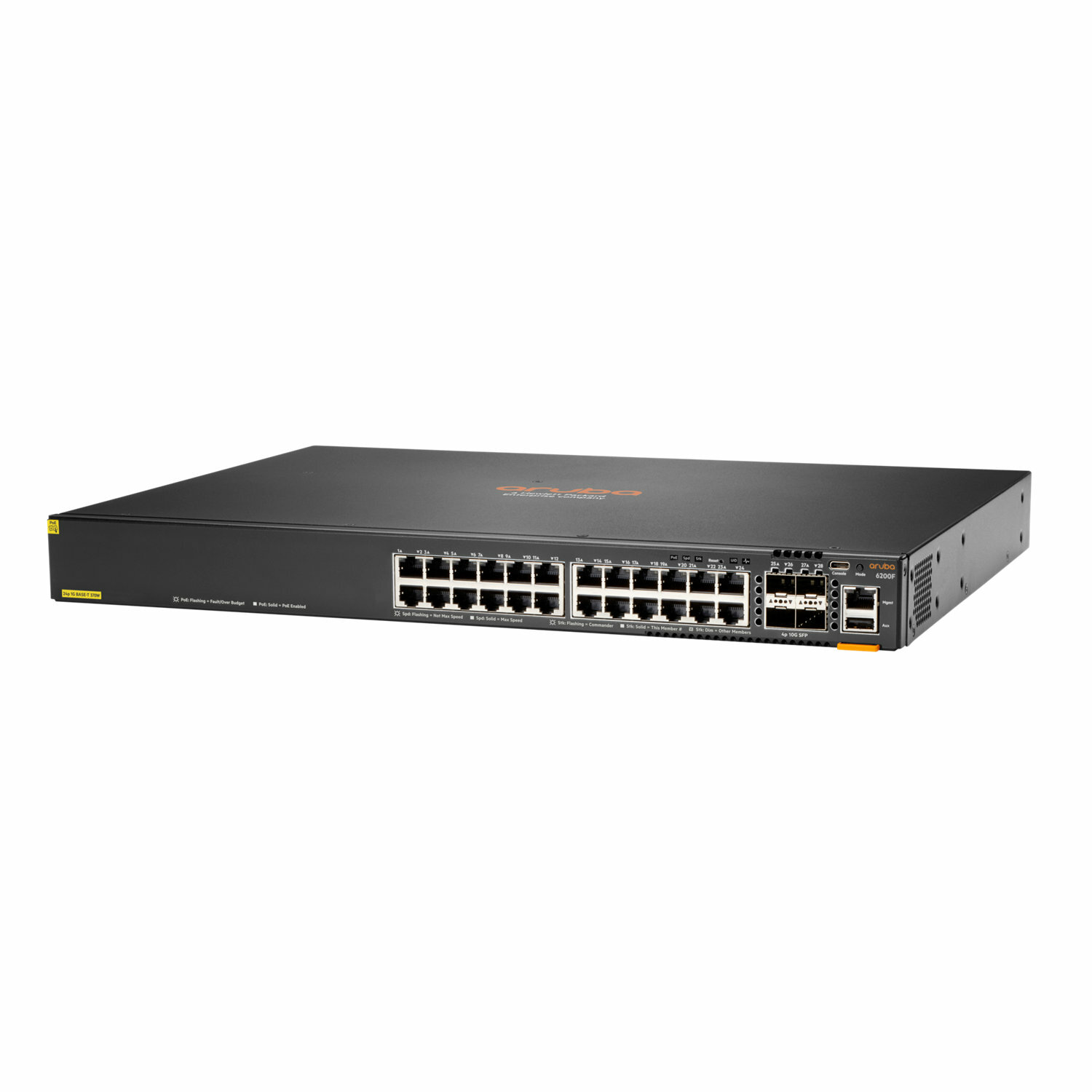

HPE Aruba Networking CX 6200F 24G Class 4 PoE 4SFP 370W Switch
- Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing:
- Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app:
- Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency:
- Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security:
- Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT):
- HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification:
- AI-ready performance and power: The HPE Aruba Networking CX 6200 Switch Series provides Layer 2/3 access switching with high performance, security, and ease of use for latency-sensitive, AI resources at the enterprise edge, SMB, and branch office networks. | A fully distributed architecture with Gen7 ASICs delivers very low latency, increased packet buffering, and efficient power consumption. Switching and routing are wire-speed to meet the demands of bandwidth-intensive workloads. | HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers. | Deploy wireless access points and Internet of Things (IoT) devices with CX 6200 models that support up to 1440W IEEE 802.3at Class 6 PoE for up to 60W per port. | Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
- Automation and analytics: The HPE Aruba Networking CX 6200 Switch Series delivers visibility and built-in analytics for real-time monitoring and accelerated troubleshooting. The HPE Aruba Networking CX Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health. | Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security-related issues easily through the use of Python | ® | agents and REST APIs. | The time series database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues. | HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes, and helps ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features. | The HPE Aruba Networking CX Mobile App simplifies connecting and stacking this switch series with easy one-touch deployment. Import switch information into HPE Aruba Networking Switch Multi-Edit Software for simplified configuration management and to continual conformance validation.
- Simplified configuration and management: The HPE Aruba Networking CX 6200 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy-to-use GUI, or industry-standard CLI. | HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates. | Unified management across wired, wireless, and WAN using HPE Aruba Networking Central. | Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA). | Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
- Smarter segmentation: The HPE Aruba Networking CX 6200 Switch Series supports dynamic segmentation that automatically applies and enforces common and consistent user, device, and application-aware policies on HPE Aruba Networking wired and wireless networks. | Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for IT and end-users. | Switch-to-switch tunnels with Virtual Extensible Local-Area Networks (VXLAN) for low-latency and high performance use cases. | Reduces time-consuming and error-prone task of adds, moves and changes.
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE Aruba Networking CX 6200F 24G Class 4 PoE 4SFP 370W Switch - Switch - Max. Stacking Distance 10 kms - L3 - managed - 24 x 10/100/1000 (PoE+) + 4 x 100/1000 SFP - front and side to back - rack-mountable - PoE+ (370 W) |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $4,675.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.43 cm |
| Dimensions & Weight / Height | 4.37 cm |
| Dimensions & Weight / Weight | 4.39 kg |
| Dimensions & Weight / Width | 44.25 cm |
| Header / Brand | Aruba |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required | AOS-CX |
| Dimensions & Weight | |
| Depth | 30.43 cm |
| Height | 4.37 cm |
| Weight | 4.39 kg |
| Width | 44.25 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Encryption Algorithm | SSL, FIPS 140-2 |
| Features | VRRP support, TPM, UDLD, DWRR, CoS, ToS, BPDU, PoE Class 4, RPVST+, LLDP, UTM, EQS, Address Resolution Protocol |
| Flash Memory | 16 GB |
| Jumbo Frame Support | 9220 bytes |
| MAC Address Table Size | 32768 entries |
| Max Units In A Stack | 8 |
| Performance |
|
| PoE Budget | 370 W |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 100/1000 SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | 1 x ARM Cortex-A72: 1.8 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Remote Management Protocol | RMON, CLI, MIB |
| Routing Protocol | RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, EN 63000:2018, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CNS 15936: 2020 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, GB 4943.1-2022, KC 62368-1: 2021-08, EN 55032:2015 /A11:2020, Class A, FCC 47 CFR part 15B:2021 Class A, ICES-003 Issue 7: 2020 Class A, VCCI-CISPR 32 Class A, CISPR 32:2016 Class A, AS/NZS CISPR 32:2015 Class A, IEC 63000:2018 |
| Included Accessories | 2-Post Rack Kit |
| Localization | English / United States |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-127/200-240 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | AOS-CX |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$249.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- Switch
- Max. Stacking Distance 10 kms
- L3
- managed
- 24 x 10/100/1000 (PoE+) + 4 x 100/1000 SFP
