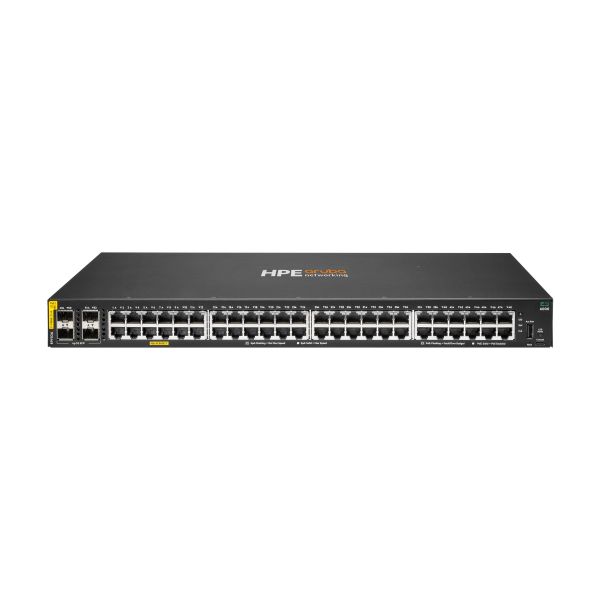

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 740W Switch

Availability: Out of stock
SKU
R9Y03A#ABA
UPC Code
190017612027
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
The HPE Aruba Networking CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and security-enhanced access, the HPE Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The HPE Aruba Networking CX 6000 Switch Series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The HPE Aruba CX 6000 series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.
General Information
CategoryNetwork switches
DescriptionHPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 740W Switch - Switch - L3 - managed - 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - rack-mountable - PoE+ (740 W)
ManufacturerHewlett Packard Enterprise
MSRP$7,645.00
UNSPSC43222612
Main Specifications
Header / BrandAruba
Header / Country KitsUnited States
Header / LocalizationEnglish
Miscellaneous / Product ColorGray
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
System Requirements / OS RequiredAOS-CX
Environmental Parameters
Max Operating Temperature45 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 48 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 - 30 W
  • 4 x Gigabit LAN SFP uplink
  • 1 x USB-C console
  • 1 x USB Type A host
General
Authentication MethodRADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)
Compliant StandardsIEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az
Device TypeSwitch - 48 ports - L3 - managed
Enclosure TypeRack-mountable 1U
Encryption AlgorithmSSL
FeaturesPoE Class 4, CoS, ToS, TPM, layer 2 switching, Address Resolution Protocol, LLDP, UTM, UDLD, RPVST+, RSTP support, MSTP support
Flash Memory16 GB
Jumbo Frame Support9220 bytes
Performance
  • Switching capacity: 176 Gbps
  • Throughput: 98.6 Mpps
  • Latency (1 Gbps): 1.9 µs
  • Latency (10 Gbps): 1.8 µs
PoE Budget740 W
Ports48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)PoE+
Processor1 x ARM CortexTM A9: 1.016 GHz
RAM8 GB DDR3 SDRAM
Remote Management ProtocolMIB, CLI, RMON, SNMP, SNMP 2, SNMP 3
Routing ProtocolIGMP, IGMPv2, IGMPv3, MLD, MLDv2
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Included AccessoriesMounting brackets
LocalizationEnglish / United States
Power
Power DeviceInternal power supply
Voltage RequiredAC 100-127/200-240 V (50/60 Hz)
Software / System Requirements
OS RequiredAOS-CX
