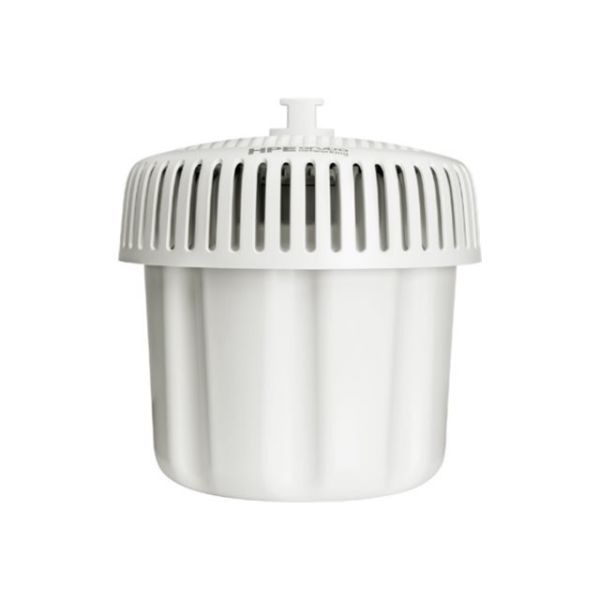

HPE Aruba Networking AP-675EX (US)
- High performance outdoor Wi-Fi 6E access point ideal for outdoor and environmentally challenging locations.:
- Delivers up to 3.9 Gbps maximum aggregate data rates with a tri-radio 2x2:2 MIMO.:
- 160MHz channels in 6 GHz support low-latency, bandwidth-hungry applications like high-definition video and AR/VR applications.:
- High-power Bluetooth and Zigbee radios to meet Industrial IoT requirements.:
- Flexible and fast wired connectivity with 2.5GbE port and 1GbE SFP port.:
- Self-locating with embedded GPS receiver and will operate as Standard Power (SP) device.:
- High Performance Outdoor Wi-Fi 6E: HPE Aruba Networking 670 Series Outdoor Access Points operate as Standard Power (SP) devices and deliver greater efficiency with OFDMA, MU‑MIMO, and Target Wake Time to extend the battery life of devices. | Fast performance with 6 GHz band that delivers up to 1200 MHz additional capacity and 3.6 Gbps maximum combined data rate to better support high-bandwidth, low-latency applications such as high-definition video. | Self-locating with embedded GPS receiver and will operate as Standard Power (SP) devices requiring an Automated Frequency Coordination service (AFC) to protect incumbent outdoor services. | Enhanced wireless experience with ClientMatch technology that eliminates sticky client issues by steering a client to the AP where it receives the best radio signal and Air Slice that provides service level agreement-grade performance for latency-sensitive, high-bandwidth, and IoT services. | Convenient wired connectivity with fast 2.5 GbE uplink port and 1 GbE port.
- Simplified Access with Enhanced Security: The HPE Aruba Networking 670 Series Outdoor Access Points offers enhanced security with dynamic segmentation to eliminate the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated. | Network protection with stronger encryption and authentication with WPA3, secure credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls. | Simplified policy enforcement with the Policy Enforcement Firewall (PEF) that encapsulates all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection. | For enhanced device assurance, HPE Aruba Networking APs include an installed TPM for secure storage of credentials and keys, and boot code.
- Ruggedized and Ready for IoT: HPE Aruba Networking 670 Series Outdoor Access Points include integrated high-power Bluetooth and Zigbee radios to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors. | Ruggedized outdoor APs support extended temperatures to address requirements of a broad range of surface, subsurface, and offshore applications. This series includes HPE Aruba Networking 670EX models that are designed for the most extreme, hazardous locations. | Target Wake Time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention with other clients. | Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi, Bluetooth, and Zigbee radios to operate at maximum capacity without the impact of interference. | Intelligent Power Monitoring (IPM) provides insights into energy consumption, our APs continuously monitor and report hardware energy usage. Unlike other vendor’s access points, our APs can also be configured to enable or disable capabilities based on available PoE power.
| General Information | |
|---|---|
| Category | Wireless access point |
| Description | HPE Aruba Networking AP-675EX (US) - Hazardous Location - wireless access point - Bluetooth, Wi-Fi 6E, ZigBee - 2.4 GHz, 5 GHz, 6 GHz |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $4,364.00 |
| UNSPSC | 43222640 |
| Main Specifications | |
| Dimensions & Weight / Depth | 28.8 cm |
| Dimensions & Weight / Height | 31.2 cm |
| Dimensions & Weight / Weight | 4 kg |
| Dimensions & Weight / Width | 29 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | White |
| Networking / Connectivity Technology | Wireless |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 3.9 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Wireless access point |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required |
|
| Antenna | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Gain Level | 5 dBi |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 100% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 28.8 cm |
| Device Type | Wireless access point |
| Height | 31.2 cm |
| Ruggedized Design | Outdoor |
| Weight | 4 kg |
| Width | 29 cm |
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Internet of Things (IoT) Compatible | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | UL 62368-1, IEC 62368-1, EN 62368-1, EMC 2014/30/EU, ASTM B117, IEC 60950-22, UL 50E, LVD 2014/35/EU, ATEX Zone 2, EN 50155, ISED, IEC 60079-0, EN 60079-0, UL 121201, Class 1 Div 2 (C1D2) |
| MTBF | 500,562 hours |
| Networking | |
| Capacity |
|
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax |
| Connectivity Technology | Wireless |
| Data Link Protocol | Bluetooth 5.0 LE, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), ZigBee |
| Data Transfer Rate | 3.9 Gbps |
| Encryption Algorithm | WPA3, WPA2-MPSK, WPA3-Enhanced Open |
| Features | Surge protection, Trusted Platform Module (TPM), reset button, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, packet aggregation A-MPDU, packet aggregation A-MSDU, 160MHz bandwidth support, MU-MIMO technology, Advanced IoT Coexistence (AIC), Zero-touch provisioning (ZTP), Very High Throughput (VHT) support, Target Wait Time (TWT) |
| Form Factor | External |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Line Coding Format | CCK, OFDM, BPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM, DSSS, QPSK |
| Performance |
|
| Spread Spectrum Method | OFDMA, DSSS, OFDM |
| Status Indicators | System, status, radio |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE Class 6 |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
