HPE Aruba Networking AP-555 (ID)

Availability: Out of stock
SKU
S5D88A
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
The HPE Aruba Networking 550 Series Campus Access Points provide high-performance Wi-Fi 6 connectivity to mobile and IoT devices in high density environments. Providing up to 5.37 Gbps combined aggregate data rate with dual radios and optional tri-radio mode, this series is built on Wi-Fi 6 standards (IEEE 802.11ax) and includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.  This series can be deployed using Zero Touch Provisioning, without on-site technical expertise, for ease of implementation in branch offices and for remote work. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI-powered analytics, end-to-end orchestration and automation, and advanced security features are built natively into the solution. The 550 Series includes a limited lifetime warranty.

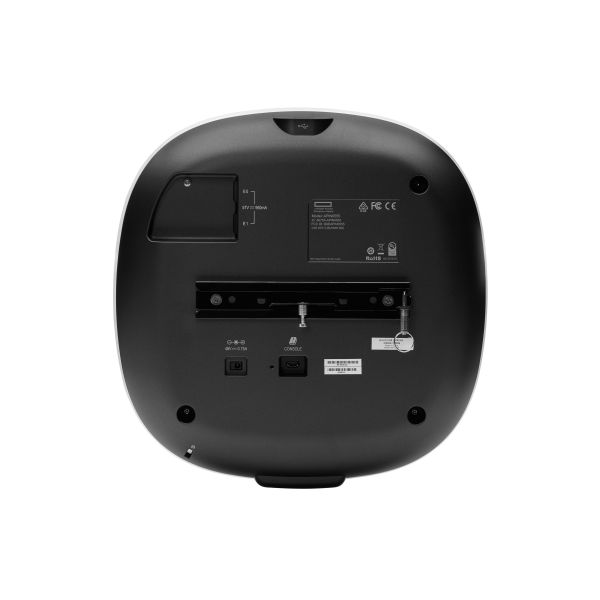

Product image S5D88A
Product image S5D88A
Product image S5D88A
Product image S5D88A
Product image S5D88A
  • High performance Wi-Fi 6 access points (APs) provide up to 5.37 Gbps combined aggregate data rate:
  • The 550 series has optional tri-radio mode with two 5 GHz and one 2.4 GHz radio (4x4 MIMO):
  • It protects with encryption and authentication, secure credentials/keys storage, and user and Internet of Things (IoT) access policy enforcement firewalls (PEF):
  • It is IoT-ready with support for Bluetooth 5 and Zigbee:
  • It has two 5 Gbps ports for fast wired connectivity:
  • Top Wi-Fi 6 Performance: The HPE Aruba Networking 550 Series Campus Access Points are designed to simultaneously serve multiple clients and traffic types with dual radio and optional tri-radio mode, boosting overall network performance and providing up to 5.37 Gbps combined aggregate data rate. | Optional tri-radio mode supports two 5 GHz radios and one 2.4 GHz radio (4x4 MIMO). | The AP includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency. | Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives a strong radio signals. | Two 5 Gbps ports provide flexibility to support speeds of 1, 2.5, or 5 Gbps (or 100 Mbps).
  • Enhanced Security: The HPE Aruba Networking 550 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated. | It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls (PEF). | The AP simplifies policy enforcement by using the PEF to encapsulate traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection. | For enhanced device assurance, the 550 series include an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.
  • IoT Ready: The HPE Aruba Networking 550 Series Campus Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays. | The AP supports an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) and a USB port for increased flexibility, providing better security and reliable connectivity for IoT devices. | HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
  • Sustainability: The 550 series support AI-powered dynamic power save mode, it enables APs to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint to align with the organization sustainability initiatives. | The Intelligent Power Monitoring (IPM) feature provides the ability to enable or disable capabilities based on available Power over Ethernet (PoE) power. | The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention.
General Information
CategoryWireless access point
DescriptionHPE Aruba Networking AP-555 (ID) - Campus - wireless access point - Wi-Fi 6 - ZigBee, Bluetooth - 2.4 GHz, 5 GHz - BTO
ManufacturerHewlett Packard Enterprise
UNSPSC43222640
Main Specifications
Dimensions & Weight / Depth26 cm
Dimensions & Weight / Height5.8 cm
Dimensions & Weight / Weight1.57 kg
Dimensions & Weight / Width26 cm
Header / BrandHPE
Miscellaneous / Product ColorWhite
Networking / Connectivity TechnologyWireless
Networking / Data Link Protocol
  • Bluetooth 5.0
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • ZigBee
Networking / Data Transfer Rate4.8 Gbps
Networking / Form FactorExternal
Networking / TypeWireless access point
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Antenna
AntennaInternal
DirectivityOmni-directional
Dimensions & Weight (Shipping)
Shipping Depth30.3 cm
Shipping Height10.8 cm
Shipping Weight2.23 kg
Shipping Width32 cm
Environmental Parameters
Humidity Range Operating5 - 93% (non-condensing)
Max Operating Temperature50 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x HPE Smart Rate - RJ-45
  • 1 x 5GBase-T - RJ-45
  • 1 x USB 2.0 - Type A
  • 1 x console - micro-USB
General
Depth26 cm
Device TypeWireless access point
Height5.8 cm
Ruggedized DesignIndoor
Weight1.57 kg
Width26 cm
Internet of Things (IoT)
Communications TechnologyBluetooth, Zigbee
Internet of Things (IoT) CompatibleYes
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsEN 60950, IEC 60950, UL 60950, UL 2043, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, RED 2014/53/EU
MTBF855000 hours
Pricing TypeBTO
Networking
Capacity
  • Wireless clients per Wi-Fi radio: 1024
  • OFDMA units: 37
  • BSSIDs per radio: 16
Compliant StandardsIEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax
Connectivity TechnologyWireless
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Data Transfer Rate4.8 Gbps
Encryption AlgorithmWPA, WPA2, WPA3-Enhanced Open
FeaturesTrusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), High-Throughput (HT) support, 4x4 MU-MIMO technology, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyzer, 8x8 MU-MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT)
Form FactorExternal
Frequency Band2.4 GHz, 5 GHz
Line Coding FormatCCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Performance
  • Maximum data rate (2.4 GHz): 1.150 Mbps
  • Maximum data rate (5 GHz): 4.8 Gbps
  • Aggregate bandwidth: 5.95 Gbps
Spread Spectrum MethodOFDM, DSSS
Status IndicatorsSystem, status
Power
Power Consumption Operational38.2 Watt
Power Over Ethernet (PoE) SupportedPoE
