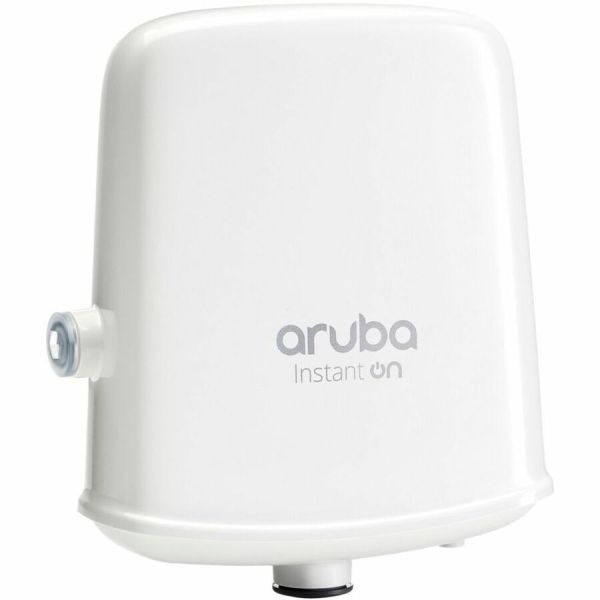

HPE Aruba Instant ON AP17 (US)
- Entry-level wireless access points for small and growing businesses at a cost-sensitive price point.:
- Comes with an integrated virtual controller for simple deployment of multiple access points.:
- Support for WPA2/WPA3 employee and guest login with Enhanced Open for per user guest access.:
- Fast Connectivity with 802.11ac Wave 2 Access Points that is Simple to Deploy: HPE Networking Instant On Access Points AP17 includes an easy to use web GUI and templates so access points are up and running in minutes. | 802.11ac Wave 2 features include 2x2:2SS and up to 80 MHz channel bandwidth. | Dual-band wireless (2.4 GHz and 5 GHz) for combined speeds of up to 2 Gbps support high-bandwidth activities such as video, voice, and conferencing solutions. | HPE Networking Instant On Access Points AP17 allow for any change to the primary AP configuration to be automatically pushed to every AP in the same cluster. | A secondary AP automatically takes over if the primary AP experiences an outage for always-on Wi-Fi.
- Eliminates High Cost of Cabling with Full-Scale Wireless Mesh Coverage: HPE Networking Instant On Access Points AP17 features built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables. | Conveniently expands your network to hard-to-wire areas and nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.
- Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open: HPE Networking Instant On Access Points AP17 comes with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access. | Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
- Simplicity is the Key to a Great Wi-Fi Experience: The HPE Networking Instant On Access Points AP17 are built with premium hardware and software quality that is reliable and comes from a trusted vendor. | Effortless set-up right out of the box – in the palm of your hand. | The HPE Networking Instant On portfolio comes with flexible management options to choose from. The Instant On mobile app guides you through step-by-step from initial set-up to ongoing management. | HPE Networking Instant On Access Points AP17 are designed for single or distributed small businesses sites such as tech start-ups, graphic design firms, cafés, restaurants, and other Wi-Fi hotspots. | Simple to build landing page lets you customize your guest access page with your logo, your own brand, and acceptance of use language.
| General Information | |
|---|---|
| Category | Network bridges |
| Description | HPE Aruba Instant ON AP17 (US) - Wireless access point - Bluetooth, Wi-Fi - Dual Band |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $328.00 |
| UNSPSC | 43222631 |
| Main Specifications | |
| Dimensions & Weight / Depth | 15.6 cm |
| Dimensions & Weight / Height | 6.7 cm |
| Dimensions & Weight / Weight | 650 g |
| Dimensions & Weight / Width | 18.7 cm |
| Header / Brand | Aruba |
| Miscellaneous / Product Color | White |
| Networking / Connectivity Technology | Wireless |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Type | Wireless access point |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Gain Level | 4.7 dBi |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 93% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 |
| General | |
| Depth | 15.6 cm |
| Device Type | Wireless access point |
| Height | 6.7 cm |
| Ruggedized Design | Outdoor |
| Weight | 650 g |
| Width | 18.7 cm |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | IEC 60950, UL 2043, EN 60601-1-2, EN 60601-1-1, CB 62368 |
| Included Accessories | Cable gland M20x1.5, self-tapping screw, grounding lug, M4x8 screw, mounting bracket |
| MTBF | 34 years |
| Networking | |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11ac |
| Connectivity Technology | Wireless |
| Data Link Protocol | Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Encryption Algorithm | WPA2, WPA3, Opportunistic Wireless Encryption (OWE) |
| Features | Manageable, wall mountable, reset button, 2T2R MIMO technology, pole mountable, Bluetooth (BLE) clients support |
| Form Factor | External |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance |
|
| Status Indicators | Status |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
| OS Provided | InstantOS |
