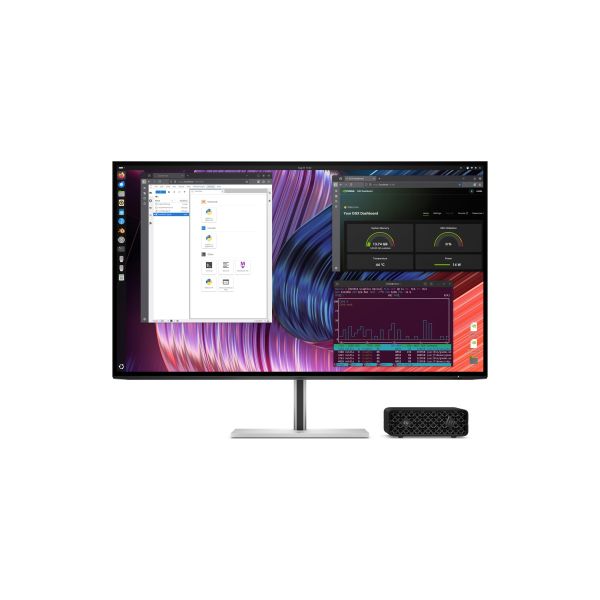

HP ZGX Nano G1n AI Station
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | HP ZGX Nano G1n AI Station - AI PC, AI Workstation - mini desktop 1 x GB10 Grace Blackwell Superchip - RAM 128 GB - SSD 2 TB - NVMe, TLC - NVIDIA Blackwell - Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 200 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - NVIDIA DGX Base OS - monitor: none - Smart Buy |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 15 cm |
| Dimensions & Weight / Height | 5.45 cm |
| Dimensions & Weight / Weight | 1.25 kg |
| Dimensions & Weight / Width | 15 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 2 TB |
| Hard Drive / Interface | PCI Express 4.0 |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | NVIDIA DGX Base OS |
| Packaged Quantity | 1 |
| Processor / Manufacturer | NVIDIA |
| Processor / Number of Cores |
|
| Processor / Type | GB10 Grace Blackwell Superchip |
| RAM / Technology | LPDDR5X SDRAM |
| System / Hard Drive Capacity | 2 TB |
| System / Type | Workstation |
| Video Output / Graphics Processor | NVIDIA Blackwell |
| Dimensions & Weight | |
| Depth | 15 cm |
| Height | 5.45 cm |
| Weight | 1.25 kg |
| Width | 15 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 14.2 cm |
| JTFpping Height | 27.2 cm |
| JTFpping Weight | 2.5 kg |
| JTFpping Width | 21.6 cm |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| AI Level | AI PC, AI Workstation |
| Localization | Language: English / region: United States |
| Product Form Factor | Mini desktop |
| Type | Workstation |
| Graphics Controller | |
| Graphics Processor | NVIDIA Blackwell |
| Video Interfaces | HDMI |
| Hard Drive | |
| Capacity | 1 x 2 TB |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Interface Type | PCI Express 4.0 |
| Type | SSD - M.2 |
| Input Device | |
| Type | No keyboard, no mouse |
| Miscellaneous | |
| Manufacturer Selling Program | HP Smart Buy |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 200 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) |
| Ethernet Controller | Mellanox ConnectX-7 |
| Features | Dual stream (2x2) |
| Wireless LAN Supported | Yes |
| Wireless NIC | MediaTek Wi-Fi 7 MT7925 |
| Operating System / Software | |
| OS Provided | NVIDIA DGX Base OS English |
| Software | NVIDIA AI Software Stack |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power supply |
| Efficiency | 92% |
| Power Factor Correction | Yes (active) |
| Power Provided | 280 watt |
| Processor / Chipset | |
| CPU | NVIDIA GB10 Grace Blackwell Superchip |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Number of Cores | 20-core |
| RAM | |
| Configuration Features | Provided memory is soldered |
| Effective Memory Speed | 8533 MT/s |
| Installed Size | 128 GB |
| Technology | LPDDR5X SDRAM |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- AI PC, AI Workstation
- mini desktop 1 x GB10 Grace Blackwell Superchip
- RAM 128 GB
- SSD 2 TB
- NVMe, TLC
