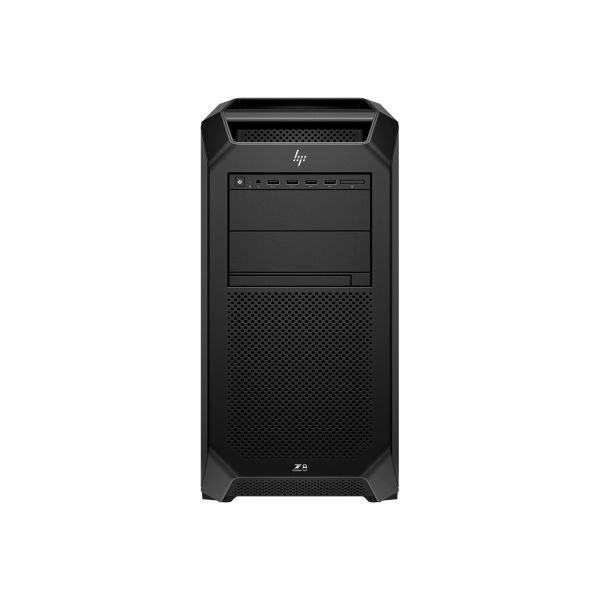

HP Workstation Z8 G5

Be the first to review this product

Availability: Out of stock

SKU

AL0V4US#ABA

UPC Code

198701277415

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Processor-intensive workflows have met their match. The Z8 G5 offers more CPU performance, in a classic dual socket design, to accelerate rendering with real-time ray tracing, data visualization, and model training while also providing plenty of room to expand as demands change.

Specifications

General Information
Category	Desktop computers
Description	HP Workstation Z8 G5 - AI Workstation - tower 5U - 1 x Xeon Gold 6442Y / up to 4 GHz - RAM 64 GB - SSD 1 TB - HP Z Turbo Drive, NVMe, TLC, HDD 2 x 4 TB - RTX A2000 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
A/V Interface Type	PCI Express x16
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	55.12 cm
Dimensions & Weight / Height	44.45 cm
Dimensions & Weight / Weight	22.5 kg
Dimensions & Weight / Width	21.59 cm
Display / Type	None.
Hard Drive / Capacity	1 TB
Hard Drive / Interface	PCI Express 4.0
Hard Drive / Interface Type	PCI Express 4.0
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel C741
Mainboard / Processor Socket	LGA4677 Socket-E
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.6 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	24-core
Processor / Processor Number	6442Y
Processor / Type	Xeon Gold
RAM / Data Integrity Check	Non-ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	2200 MHz
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	9 TB
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX A2000
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	60 MB
Installed Size	L3 cache - 60 MB
Dimensions & Weight
Depth	55.12 cm
Height	44.45 cm
Weight	22.5 kg
Width	21.59 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	73.4 cm
JTFpping Height	63.6 cm
JTFpping Weight	27.95 kg
JTFpping Width	33.2 cm
Environmental Parameters
Humidity Range Operating	8 - 85% RH (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Bays	2 (total) / 2 (free) x external 5.25" Slim Line 2 (total) / 2 (free) x external 5.25" 4 (total) / 2 (free) x internal 3.5"
Interfaces	1 x headphones/microphone (1 in front) 10 x USB 3.1 Gen 1 (4 front, 6 rear) (one of them is Battery Charging 1.2) 1 x audio line-in 2 x LAN (Gigabit Ethernet) 1 x audio line-out 4 x Mini DisplayPort 1.4a
Slots	1 (total) / 1 (free) x PCIe 4.0 x16 1 (total) / 1 (free) x PCIe 4.0 x16 (2 processors must be installed) 2 (total) / 2 (free) x PCIe 3.0 x4 1 (total) / 0 (free) x PCIe 5.0 x16 1 (total) / 1 (free) x PCIe 3.0 x8 1 (total) / 1 (free) x PCIe 3.0 x16 (2 processors must be installed)
General
AI Level	AI Workstation
Built-in Devices	Speaker
Color	Black
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	Tower - 5U
Type	Workstation
Graphics Controller
Graphics Processor	NVIDIA RTX A2000
Interface Type	PCIe x16
Video Interfaces	DisplayPort
Video Memory	6 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 1 TB
Features	HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)
Interface Type	PCI Express 4.0
Type	SSD - M.2
Hard Drive (2nd)
Capacity	2 x 4 TB
Interface Class	Serial ATA
Spindle Speed	7200 rpm
Type	HDD
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	HP 320K
Localization & Layout	US
Miscellaneous
Compliant Standards	UL, GS, FCC, RoHS, ICES, CEC, ERP, CECP, CEL, BIS
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
Monitor
Monitor Type	None.
Mouse
Mouse Name	HP 320M
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM, I210-AT
Ethernet Ports	2 x Gigabit Ethernet
Features	Wake on LAN (WoL), ACPI support, Intel Active Management Technology (AMT), PXE 2.1 support
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP BIOSphere, HP PC Hardware Diagnostics, HP Manageability & Integration Kit, HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Sure Admin, HP Smart Support (free download), HP Data Science Stack, HP Sure Start, HP Driver Packs (free download)
Optical Storage
Type	No optical drive
Power
Device Type	Power supply
Efficiency	90%
Power Factor Correction	Yes (active)
Power Provided	1125 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel C741
Clock Speed	2.6 GHz
CPU	Intel Xeon Gold 6442Y
CPU Qty	1
CPU Socket	LGA4677 Socket-E
CPU Upgradability	Upgradable
Max CPU Qty	2
Max Turbo Speed	4 GHz
Number of Cores	24-core
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology 2
RAM
Configuration Features	4 x 16 GB
Effective Memory Speed	2200 MHz
Features	Slots 9 - 16 are available in two-processor configuration only
Form Factor	DIMM 288-pin
Installed Size	64 GB (installed) / 1 TB (max)
Rated Memory Speed	2400 MHz
Slots	16 (total) / 12 (empty)
Technology	DDR5 SDRAM - non-ECC
Storage Controller
Controller Interface Type	SATA 6Gb/s
RAID Level	RAID 0, RAID 1
Type	1 x SATA
Sustainability Information
EPEAT Compliant	EPEAT Gold
TCO Certified	TCO Certified Desktops 9
