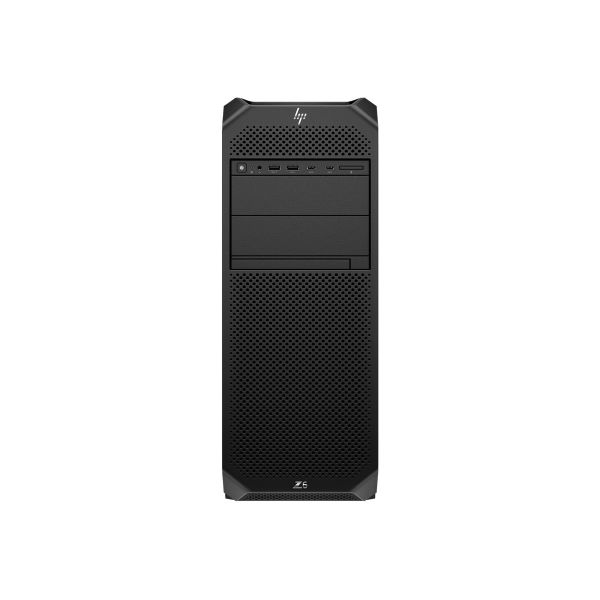

HP Workstation Z6 G5

Be the first to review this product

Availability: Out of stock

SKU

A3TD3UC#ABA

UPC Code

198415181350

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The HP Z6 G5 Workstation combines powerful processing capabilities and advanced features for demanding workloads. Designed for professionals who require high performance, this workstation is equipped with an Intel Xeon W processor and supports up to 8 DDR5 SDRAM slots, allowing for extensive multitasking and data processing. Featuring multiple expansion bays for additional storage options, including internal SSD drives that utilize NVM Express technology, the Z6 G5 offers exceptional speed and efficiency. With robust security options, including a Trusted Platform Module (TPM 2.0) security chip, this workstation ensures the protection of sensitive data while providing a versatile platform for various applications.

Specifications

General Information
Category	Desktop computers
Description	HP Workstation Z6 G5 - Tower 4U - 1 x Xeon W W5-3433 / up to 4.2 GHz - RAM 64 GB - SSD 512 GB - HP Z Turbo Drive, NVMe, TLC - RTX 4000 Ada - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
A/V Interface Type	PCI Express 4.0 x16
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	47.8 cm
Dimensions & Weight / Height	44.45 cm
Dimensions & Weight / Weight	12.8 kg
Dimensions & Weight / Width	16.9 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Hard Drive / Interface	PCI Express 4.0
Hard Drive / Interface Type	PCI Express 4.0
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W790
Mainboard / Processor Socket	LGA4677 Socket-E
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	16-core
Processor / Processor Number	W5-3433
Processor / Type	Xeon W
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	512 GB
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX 4000 Ada
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	45 MB
Installed Size	L3 cache - 45 MB
Dimensions & Weight
Depth	47.8 cm
Height	44.45 cm
Weight	12.8 kg
Width	16.9 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	59.3 cm
JTFpping Height	61 cm
JTFpping Weight	17.25 kg
JTFpping Width	31.3 cm
Environmental Parameters
Humidity Range Operating	8 - 85% RH (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Bays	2 (total) / 2 (free) x external 5.25" 1 (total) / 1 (free) x external 5.25" Slim Line 2 (total) / 2 (free) x internal 3.5"
Interfaces	1 x headphones/microphone (1 in front) 10 x USB 3.2 Gen 1 (4 front, 6 rear) (one of them is Battery Charging 1.2) 1 x audio line-out/line-in (1 rear) 1 x LAN (Gigabit Ethernet) 4 x DisplayPort 1.4a
Slots	1 (total) / 0 (free) x PCIe 5.0 x16 - full-length, full-height 2 (total) / 2 (free) x PCIe 4.0 x4 - full-length, half-height 2 (total) / 2 (free) x PCIe 4.0 x16 - full-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode)
General
Built-in Devices	Speaker
Color	Black
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	Tower - 4U
Type	Workstation
Graphics Controller
Bandwidth	360 GBps
Graphics Processor	NVIDIA RTX 4000 Ada
Interface Type	PCIe 4.0 x16
Video Interfaces	DisplayPort
Video Memory	20 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 512 GB
Features	HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)
Interface Type	PCI Express 4.0
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Keyboard Name	HP 125
Localization & Layout	US
Miscellaneous
Compliant Standards	RoHS, WEEE, Common Criteria EAL4+, CECP, FEMP
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop
Monitor
Monitor Type	None.
Mouse
Mouse Name	HP 128
Technology	Laser
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), Intel Active Management Technology (AMT), PXE 2.1 support
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, Kingsoft Office, HP Client Catalog, HP BIOS Config Utility, HP Image Assistant, HP Documentation, HP System Software Manager, HP Notifications, HP Sure Run, HP BIOSphere Gen6, HP Desktop Support Utility, myHP, HP Client Security Manager Gen7, HP Easy Clean, HP Manageability Integration Kit (free download), Microsoft Defender, HP PC Hardware Diagnostics Windows, HP Anyware, HP Smart Health, HP Driver Packs (free download)
Optical Storage
Type	No optical drive
Power
Device Type	Power supply
Efficiency	90%
Power Factor Correction	Yes (active)
Power Provided	1125 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W790
Clock Speed	2 GHz
CPU	Intel Xeon W W5-3433
CPU Qty	1
CPU Socket	LGA4677 Socket-E
CPU Upgradability	Upgradable
Max CPU Qty	1
Max Turbo Speed	4.2 GHz
Number of Cores	16-core
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0, 220W TDP
RAM
Configuration Features	2 x 32 GB
Features	Registered
Form Factor	DIMM 288-pin
Installed Size	64 GB (installed) / 1 TB (max)
Rated Memory Speed	4800 MHz
Slots	8 (total) / 6 (empty)
Technology	DDR5 SDRAM - ECC
Storage Controller
Controller Interface Type	SATA 6Gb/s / PCIe 4.0 x4 (NVMe)
RAID Level	RAID 0, RAID 1
Type	SATA/NVMe
Sustainability Information
ENERGY STAR Certified	Yes
EPEAT Compliant	EPEAT Gold
TCO Certified	TCO Certified Desktops 9
