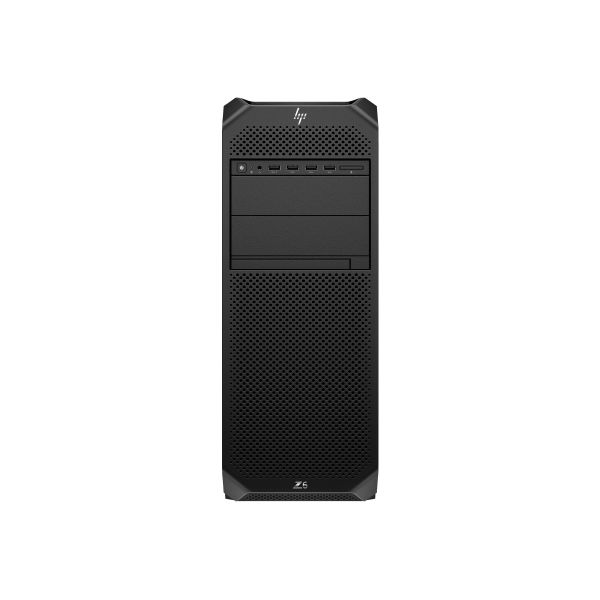

HP Workstation Z6 G5 A

Be the first to review this product

Availability: Out of stock

SKU

AL0H4UP#ABA

UPC Code

198701271574

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

HP Workstation Z6 G5 A - AI Workstation - tower 4U - 1 x Ryzen ThreadRipper PRO 7965WX / up to 5.3 GHz - RAM 32 GB - SSD 1 TB - NVMe, TLC - DVD-Writer - RTX A4000 - Gigabit Ethernet - Win 11 Pro - monitor: none - black

Specifications

General Information
Category	Desktop computers
Description	HP Workstation Z6 G5 A - AI Workstation - tower 4U - 1 x Ryzen ThreadRipper PRO 7965WX / up to 5.3 GHz - RAM 32 GB - SSD 1 TB - NVMe, TLC - DVD-Writer - RTX A4000 - Gigabit Ethernet - Win 11 Pro - monitor: none - black
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	46.5 cm
Dimensions & Weight / Height	44.5 cm
Dimensions & Weight / Weight	13.2 kg
Dimensions & Weight / Width	16.9 cm
Display / Type	None.
Hard Drive / Capacity	1 TB
Hard Drive / Interface	PCI Express 4.0
Hard Drive / Interface Type	PCI Express 4.0
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	AMD PRO 695
Mainboard / Processor Socket	Socket SP6
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	DVD-Writer
Optical Storage / Type	DVD-Writer
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	4.2 GHz
Processor / Manufacturer	AMD
Processor / Number of Cores	24-core
Processor / Processor Number	7965WX
Processor / Type	Ryzen ThreadRipper PRO
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	2600 MHz
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	1 TB
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX A4000
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	128 MB
Installed Size	L3 cache - 128 MB
Dimensions & Weight
Depth	46.5 cm
Height	44.5 cm
Weight	13.2 kg
Width	16.9 cm
Environmental Parameters
Humidity Range Operating	8 - 85% RH (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Bays	1 (total) / 0 (free) x external 5.25" 1 (total) / 1 (free) x internal 5.25"
Interfaces	1 x headphones/microphone (1 in front) (CTIA headset support) 4 x USB 3.2 Gen 1 - Type A (4 rear) (one of them is charging) 6 x USB 3.2 Gen 1 - Type A (6 rear) 1 x audio line-out/line-in (1 rear) 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear) 4 x Mini DisplayPort 1.4a (4 rear)
Slots	4 (total) / 3 (free) x PCIe 5.0 x16 2 (total) / 2 (free) x PCIe 5.0 x4 1 (total) / 1 (free) x PCIe 4.0 x16 3 (total) / 3 (free) x PCIe 4.0 x4 2 (total) / 2 (free) x M.2 Card (PCIe 5.0 x4 mode) 2 (total) / 1 (free) x M.2 Card (PCIe 4.0 x4 mode)
General
AI Level	AI Workstation
Color	Black
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	Tower - 4U
Sensors	HP Tamper Lock
Type	Workstation
Graphics Controller
Bandwidth	448 GBps
Graphics Processor	NVIDIA RTX A4000
Video Interfaces	DisplayPort
Video Memory	16 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 1 TB
Features	NVM Express (NVMe), triple-level cell (TLC)
Interface Type	PCI Express 4.0
Type	SSD - M.2
Input Device
Type	Mouse
Miscellaneous
Compliant Standards	RoHS, Green Mark, Common Criteria EAL4+, CECP, CEL, SEPA, low halogen, ACPI 6.0, Korea Eco-Label
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), chassis intrusion sensor
Monitor
Monitor Type	None.
Mouse
Mouse Name	HP 320M
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Features	Wake on LAN (WoL), PXE 2.1 support
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP Image Assistant, HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Services Scan, HP Data Science Stack Manager, HP Sure Start
Optical Storage
Type	DVD-Writer
Power
Device Type	Power supply
Efficiency	90%
Installed Qty	1
Power Factor Correction	Yes (active)
Power Provided	775 watt
Voltage Required	AC 90-269 V (50/60 Hz)
Processor / Chipset
Chipset Type	AMD PRO 695
Clock Speed	4.2 GHz
CPU	AMD Ryzen ThreadRipper PRO 7965WX
CPU Qty	1
CPU Socket	Socket SP6
CPU Upgradability	Upgradable
L2 cache	24 MB
Max CPU Qty	1
Max Turbo Speed	5.3 GHz
Number of Cores	24-core
RAM
Configuration Features	2 x 16 GB
Effective Memory Speed	2600 MHz
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 1 TB (max)
Rated Memory Speed	2800 MHz
Slots	8 (total) / 6 (empty)
Technology	DDR5 SDRAM - ECC
Storage Controller
Controller Interface Type	SATA-600 / NVMe
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10
Type	SATA/NVMe
Sustainability Information
EPEAT Compliant	EPEAT Gold
TCO Certified	TCO Certified Desktops 9
