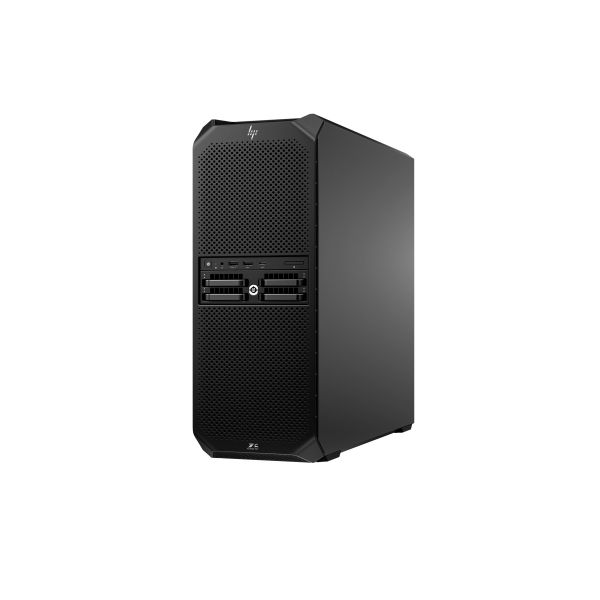

HP Workstation Z6 G5 A
The refreshed HP Z6 G5 A is a powerhouse for AI workflows, 3D rendering and virtual production. Its innovative system design, with a next-gen AMD Ryzen Threadripper PRO CPU, combines an astounding number of cores in a single CPU with up to 3 GPUs. Create and render at once on intensive projects.
- Create, render, process—all at once: Tear through rendering, simulations or 3D modeling. The system design packs up to 96 cores in a single workstation CPU1 so there’s room for up to three high-end GPUs | 1 | and eight memory channels. | 2 | And, do it all with efficient performance per watt.
- Expandable. Flexible. Whisper Quiet: Designed to pack all the power and components you need now with room to grow. Get maximum expandability with large storage and memory configurations. Conquer intense projects with a device designed to run quiet and cool.
- Your AI powerhouse, in-house: Accelerate AI development and inferencing with space for up to 3 NVIDIA RTX | ™ | GPUs | 2 | , delivering incredible TOPS for advanced AI workflows. Process proprietary data securely on a local workstation for fast insights.
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | HP Workstation Z6 G5 A - AI Workstation - tower 4U - 1 x Ryzen ThreadRipper PRO 7945WX / up to 5.3 GHz - RAM 32 GB - SSD 1 TB - HP Z Turbo Drive, NVMe, TLC - DVD-Writer - no graphics - Gigabit Ethernet - Win 11 Pro - monitor: none - black - with HP 3 years Onsite Care Hardware Support for Workstations |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Tower |
| Dimensions & Weight / Depth | 46.5 cm |
| Dimensions & Weight / Height | 44.5 cm |
| Dimensions & Weight / Weight | 13.2 kg |
| Dimensions & Weight / Width | 16.9 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 1 TB |
| Hard Drive / Interface | PCI Express 4.0 |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | AMD PRO 695 |
| Mainboard / Processor Socket | Socket SP6 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | DVD-Writer |
| Optical Storage / Type | DVD-Writer |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 4.7 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | 12-core |
| Processor / Processor Number | 7945WX |
| Processor / Type | Ryzen ThreadRipper PRO |
| RAM / Data Integrity Check | ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 5600 MHz |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 1 TB |
| System / Type | Workstation |
| Video Output / Graphics Processor | No graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 64 MB |
| Installed Size | L3 cache - 64 MB |
| Dimensions & Weight | |
| Depth | 46.5 cm |
| Height | 44.5 cm |
| Weight | 13.2 kg |
| Width | 16.9 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 59.3 cm |
| JTFpping Height | 63 cm |
| JTFpping Width | 31.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 85% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| AI Level | AI Workstation |
| Bundled Services | HP 3 years Onsite Care Hardware Support for Workstations |
| Color | Black |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | Tower - 4U |
| Sensors | HP Tamper Lock |
| Type | Workstation |
| Graphics Controller | |
| Graphics Processor | No graphics |
| Hard Drive | |
| Capacity | 1 x 1 TB |
| Features | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Interface Type | PCI Express 4.0 |
| Type | SSD - M.2 |
| Input Device | |
| Type | No keyboard, no mouse |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | RoHS, Green Mark, Common Criteria EAL4+, CECP, CEL, SEPA, low halogen, ACPI 6.0, Korea Eco-Label |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | DASH |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Realtek RTL8111EPP |
| Features | Wake on LAN (WoL), PXE 2.1 support |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Image Assistant, HP Documentation, HP Notifications, HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Privacy Settings, HP Sure Sense, HP Sure Admin, myHP, HP Easy Clean, HP Smart Support, HP PC Hardware Diagnostics Windows, HP Anyware, HP Services Scan, HP Data Science Stack Manager, HP Sure Start |
| Optical Storage | |
| Type | DVD-Writer |
| Power | |
| Device Type | Power supply |
| Efficiency | 90% |
| Installed Qty | 1 |
| Power Factor Correction | Yes (active) |
| Power Provided | 775 watt |
| Processor / Chipset | |
| Chipset Type | AMD PRO 695 |
| Clock Speed | 4.7 GHz |
| CPU | AMD Ryzen ThreadRipper PRO 7945WX |
| CPU Qty | 1 |
| CPU Socket | Socket SP6 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.3 GHz |
| Number of Cores | 12-core |
| RAM | |
| Configuration Features | 2 x 16 GB |
| Effective Memory Speed | 5600 MHz |
| Form Factor | DIMM 288-pin |
| Installed Size | 32 GB (installed) / 1 TB (max) |
| Rated Memory Speed | 5600 MHz |
| Slots | 8 (total) / 6 (empty) |
| Technology | DDR5 SDRAM - ECC |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Type | SATA |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EOL (kg CO2e) | 4 |
| EPEAT Compliant | EPEAT Gold |
| Logistics (kg CO2e) | 3 |
| Manufacturing (kg CO2e) | 304 |
| TCO Certified | TCO Certified Desktops 9 |
| Total Carbon w/o Use Phase (kg CO2e) | 1150 |
| Total CF/unit Standard Deviation (kg CO2e) | 1150 |
| Use (kg CO2e) | 840 |
