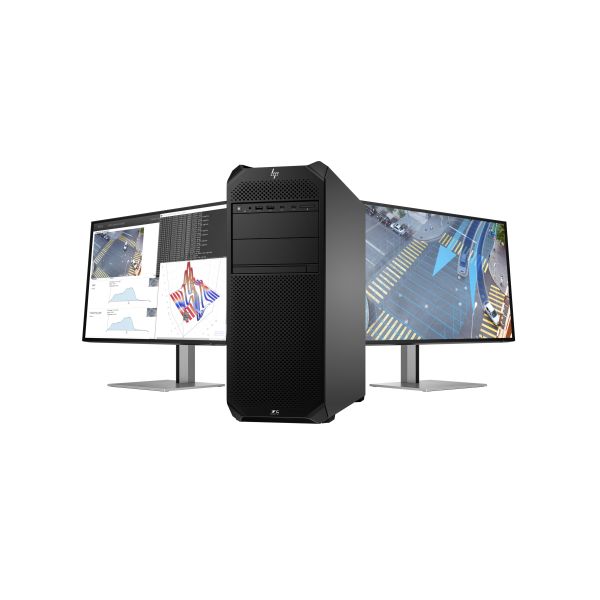

HP Workstation Z6 G5
Accelerate AI and graphics-heavy projects-from data visualization and machine learning to real-time ray tracing and advanced visual effects. With powerful single socket technology and up to 3 high-end GPUs, the Z6 AI workstation is ideal for demanding workflows, with plenty of room to expand.
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | HP Workstation Z6 G5 - AI Workstation - tower 4U - 1 x Xeon W W5-3423 / up to 4.2 GHz - RAM 64 GB - SSD 1 TB - NVMe, TLC, SSD 1 TB - RTX 5000 Ada - Gigabit Ethernet, 10 Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211507 |
| Main Specifications | |
| A/V Interface Type | PCI Express 4.0 x16 |
| Chassis / Form Factor | Tower |
| Dimensions & Weight / Depth | 47.8 cm |
| Dimensions & Weight / Height | 44.45 cm |
| Dimensions & Weight / Weight | 12.8 kg |
| Dimensions & Weight / Width | 16.9 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 1 TB |
| Hard Drive / Interface | PCI Express 4.0 |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel W790 |
| Mainboard / Processor Socket | FCLGA4677 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.1 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 12-core |
| Processor / Processor Number | W5-3423 |
| Processor / Type | Xeon W |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 4400 MHz |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 1-year warranty |
| System / Hard Drive Capacity | 2 TB |
| System / Type | Workstation |
| Video Memory / Technology | GDDR6 SDRAM |
| Video Output / Graphics Processor | NVIDIA RTX 5000 Ada |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 30 MB |
| Installed Size | L3 cache - 30 MB |
| Dimensions & Weight | |
| Depth | 47.8 cm |
| Height | 44.45 cm |
| Weight | 12.8 kg |
| Width | 16.9 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 59.3 cm |
| JTFpping Height | 61 cm |
| JTFpping Weight | 17.25 kg |
| JTFpping Width | 31.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| AI Level | AI Workstation |
| Color | Black |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | Tower - 4U |
| Type | Workstation |
| Graphics Controller | |
| Bandwidth | 576 GBps |
| Graphics Processor | NVIDIA RTX 5000 Ada |
| Interface Type | PCIe 4.0 x16 |
| Video Interfaces | DisplayPort |
| Video Memory | 32 GB GDDR6 SDRAM |
| Hard Drive | |
| Capacity | 1 x 1 TB |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Interface Type | PCI Express 4.0 |
| Type | SSD - M.2 |
| Hard Drive (2nd) | |
| Capacity | 1 x 1 TB |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Interface Class | PCI Express |
| Type | SSD - M.2 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | HP 320K |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - on-site |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE, Common Criteria EAL4+, CECP, FEMP |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Mouse Name | HP 320M |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), Intel Active Management Technology (AMT), PXE 2.1 support |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, Kingsoft Office, HP Client Catalog, HP BIOS Config Utility, HP Image Assistant, HP Documentation, HP System Software Manager, HP Notifications, HP Sure Run, HP BIOSphere Gen6, HP Desktop Support Utility, myHP, HP Client Security Manager Gen7, HP Easy Clean, HP Manageability Integration Kit (free download), Microsoft Defender, HP PC Hardware Diagnostics Windows, HP Anyware, HP Smart Health, HP Driver Packs (free download) |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power supply |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Voltage Required | AC 90-269 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel W790 |
| Clock Speed | 2.1 GHz |
| CPU | Intel Xeon W W5-3423 |
| CPU Qty | 1 |
| CPU Socket | FCLGA4677 Socket |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.2 GHz |
| Number of Cores | 12-core |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Max 3.0 |
| RAM | |
| Configuration Features | 4 x 16 GB |
| Effective Memory Speed | 4400 MHz |
| Form Factor | DIMM 288-pin |
| Installed Size | 64 GB (installed) / 1 TB (max) |
| Rated Memory Speed | 4800 MHz |
| Slots | 8 (total) / 4 (empty) |
| Technology | DDR5 SDRAM - non-ECC |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| RAID Level | RAID 0, RAID 1 |
| Type | SATA/NVMe |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| TCO Certified | TCO Certified Desktops 9 |
