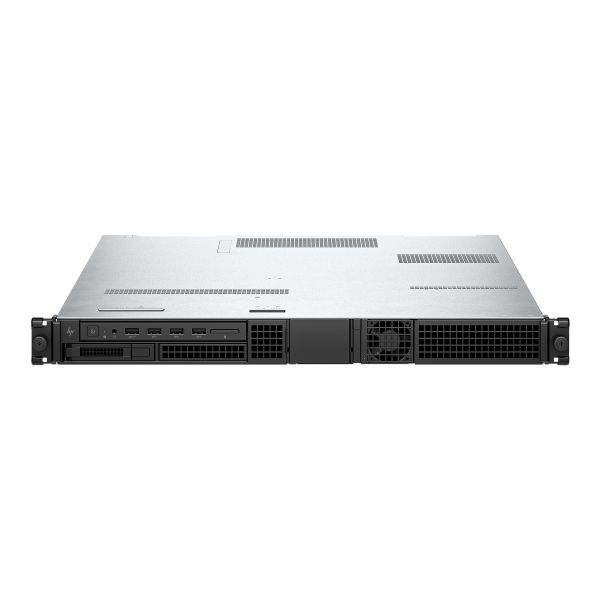

HP Workstation Z4 Rack G5
The HP Workstation Z4 Rack G5 is intended for professional environments that require high performance and reliability. This rack-mountable workstation features robust Intel Xeon W processors, allowing for powerful processing capabilities suitable for demanding applications. With a compact design, it fits into existing infrastructure while offering advanced security features, such as HP Tamper Lock and a chassis intrusion sensor, ensuring protection against unauthorized access. Equipped with Intel W790 chipset and supporting up to four DDR5 SDRAM memory slots, the Z4 Rack G5 accommodates various workloads efficiently. The integration of HP Z Turbo Drive, using PCI Express 4.0 interface, provides fast storage solutions, while multiple expansion bays and slots ensure versatility for future upgrades. This workstation is suitable for tasks from data analysis to 3D modeling, providing the performance and reliability expected in a workstation setup.
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | HP Workstation Z4 Rack G5 - AI Workstation - rack-mountable 1U - 1 x Xeon W W3-2425 / up to 4.4 GHz - RAM 16 GB - SSD 512 GB - HP Z Turbo Drive, TLC - Quadro T400 - Gigabit Ethernet - Win 11 Pro - monitor: none |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211507 |
| Main Specifications | |
| A/V Interface Type | PCI Express 3.0 x16 |
| Chassis / Form Factor | Rack-mountable |
| Dimensions & Weight / Depth | 43.8 cm |
| Dimensions & Weight / Height | 65.5 cm |
| Dimensions & Weight / Weight | 9.5 kg |
| Dimensions & Weight / Width | 4.3 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Interface | PCI Express 4.0 |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel W790 |
| Mainboard / Processor Socket | LGA4677 Socket-E |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 6-core |
| Processor / Processor Number | W3-2425 |
| Processor / Type | Xeon W |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 2400 MHz |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 1-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Type | Workstation |
| Video Memory / Technology | GDDR6 SDRAM |
| Video Output / Graphics Processor | NVIDIA Quadro T400 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 15 MB |
| Installed Size | L3 cache - 15 MB |
| Dimensions & Weight | |
| Depth | 43.8 cm |
| Height | 65.5 cm |
| Weight | 9.5 kg |
| Width | 4.3 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 90 cm |
| JTFpping Height | 22 cm |
| JTFpping Width | 59 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| AI Level | AI Workstation |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | Rack-mountable - 1U |
| Sensors | HP Tamper Lock |
| Type | Workstation |
| Graphics Controller | |
| Bandwidth | 80 GBps |
| Graphics Processor | NVIDIA Quadro T400 |
| Interface Type | PCIe 3.0 x16 |
| Video Interfaces | DisplayPort |
| Video Memory | 4 GB GDDR6 SDRAM |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | HP Z Turbo Drive, triple-level cell (TLC) |
| Interface Type | PCI Express 4.0 |
| Type | SSD - M.2 |
| Input Device | |
| Type | Mouse, no keyboard |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |
| Compliant Standards | RoHS, FIPS 140-2, Common Criteria EAL4+, ERP, CECP, CEL, WEEE 2002/96/EC, IT ECO Declaration, JEDEC JESD 300-5, DASH 1.2 |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Mouse Name | HP 320M |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), Intel Active Management Technology (AMT), PXE 2.1 support |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Anywhere, HP Driver Packs, HP Image Assistant, HP Manageability Integration Kit, HP Cloud Recovery, HP Client Management Script Library (free download), HP Image Assistant Gen5 (free download), HP Client Security Manager Gen7, HP Sure Recover Gen4, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Sure Start Gen7 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-269 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel W790 |
| Clock Speed | 3 GHz |
| CPU | Intel Xeon W W3-2425 |
| CPU Qty | 1 |
| CPU Socket | LGA4677 Socket-E |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.4 GHz |
| Number of Cores | 6-core |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0 |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 2400 MHz |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 256 GB (max) |
| Rated Memory Speed | 2400 MHz |
| Slots | 4 (total) / 3 (empty) |
| Technology | DDR5 SDRAM |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Gold |
