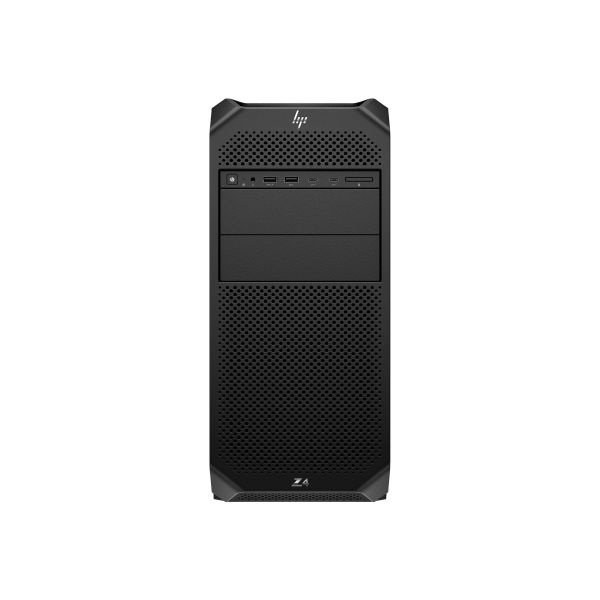

HP Workstation Z4 G5

Be the first to review this product

Availability: Out of stock

SKU

AB2G4UC#ABA

UPC Code

198701037422

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The HP Z4 G5 Workstation is engineered for high-performance computing, making it an ideal choice for professionals who need reliability and speed. With an Intel Xeon W processor and 32 GB of DDR5 ECC RAM, this workstation ensures seamless multitasking and enhanced data integrity. Equipped with a 1 TB PCI Express 4.0 SSD, users benefit from rapid data access and storage capabilities. The robust thermal performance allows for a wide operating temperature range from 5 °C to 40 °C, providing stability in various environments. The product also features comprehensive security measures, including TPM 2.0 and various lock protections, ensuring data safety and system integrity.

Specifications

General Information
Category	Desktop computers
Description	HP Workstation Z4 G5 - Tower 4U - 1 x Xeon W W3-2435 / up to 4.5 GHz - RAM 32 GB 512 GB - DVD-Writer - RTX A4000 - Gigabit Ethernet - Win 11 Pro - monitor: none - black
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
A/V Interface Type	PCI Express 4.0 x16
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	44.45 cm
Dimensions & Weight / Height	38.61 cm
Dimensions & Weight / Weight	10.5 kg
Dimensions & Weight / Width	16.89 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W790
Mainboard / Processor Socket	LGA4677 Socket-E
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	DVD-Writer
Optical Storage / Type	DVD-Writer
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	3.1 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	8-core
Processor / Processor Number	W3-2435
Processor / Type	Xeon W
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	4800 MHz
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	512 GB
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX A4000
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	22.5 MB
Installed Size	L3 cache - 22.5 MB
Dimensions & Weight
Depth	44.45 cm
Height	38.61 cm
Weight	10.5 kg
Width	16.89 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	57.2 cm
JTFpping Height	56.3 cm
JTFpping Weight	14.35 kg
JTFpping Width	31.4 cm
Environmental Parameters
Humidity Range Operating	10 - 85% RH (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Bays	2 (total) / 1 (free) x external 5.25" 2 (total) / 2 (free) x internal 3.5"
Interfaces	1 x headphones/microphone 1 x audio line-out/line-in (1 rear) 1 x LAN (Gigabit Ethernet) 10 x USB 3.2 Gen 1 (4 front, 6 rear) (one of them is Battery Charging 1.2) 4 x DisplayPort 1.4a
Slots	1 (total) / 0 (free) x PCIe 5.0 x16 2 (total) / 2 (free) x PCIe 4.0 x4 2 (total) / 2 (free) x PCIe 4.0 x16 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode (for internal storage))
General
Color	Black
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	Tower - 4U
Sensors	HP Tamper Lock
Type	Workstation
Graphics Controller
Bandwidth	448 GBps
Graphics Processor	NVIDIA RTX A4000
Interface Type	PCIe 4.0 x16
Video Interfaces	DisplayPort
Video Memory	16 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 512 GB
Input Device
Type	Mouse, no keyboard
Miscellaneous
Compliant Standards	RoHS, FIPS 140-2, Common Criteria EAL4+, ERP, CECP, CEL, WEEE 2002/96/EC, IT ECO Declaration, JEDEC JESD 300-5, DASH 1.2
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor
Monitor
Monitor Type	None.
Mouse
Mouse Name	HP 320M
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), PXE 2.1 support, Intel Active Management Technology (AMT) 16.10
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Driver Packs, HP Image Assistant, HP System Software Manager (free download), HP Sure Click, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Tamper Lock, HP Client Security Manager Gen7, HP Sure Recover Gen4, HP Smart Support, HP Sure Run Gen5, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Sure Start Gen7
Optical Storage
Type	DVD-Writer
Power
Device Type	Power supply
Efficiency	90%
Power Factor Correction	Yes (active)
Power Provided	775 watt
Voltage Required	AC 90-269 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W790
Clock Speed	3.1 GHz
CPU	Intel Xeon W W3-2435
CPU Qty	1
CPU Socket	LGA4677 Socket-E
CPU Upgradability	Upgradable
Max CPU Qty	1
Max Turbo Speed	4.5 GHz
Number of Cores	8-core
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology
RAM
Configuration Features	2 x 16 GB
Effective Memory Speed	4800 MHz
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 512 GB (max)
Rated Memory Speed	4800 MHz
Slots	8 (total) / 6 (empty)
Technology	DDR5 SDRAM - ECC
Storage Controller
Channel Qty	5
Controller Interface Type	SATA 6Gb/s
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10
Type	1 x SATA
Sustainability Information
EPEAT Compliant	EPEAT Gold
TCO Certified	TCO Certified Desktops 9
