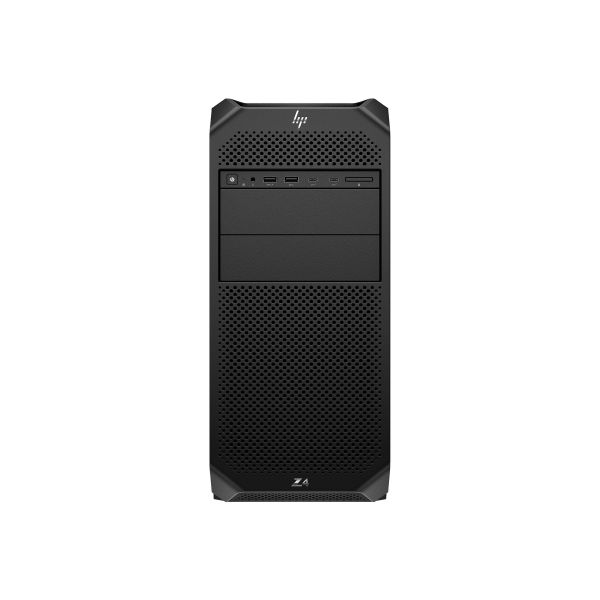

HP Workstation Z4 G5

Be the first to review this product

Availability: Out of stock

SKU

A85FGUC#ABA

UPC Code

198415744036

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The HP Z4 G5 Workstation is engineered for high-performance computing, making it an ideal choice for professionals who need reliability and speed. With an Intel Xeon W processor and 32 GB of DDR5 ECC RAM, this workstation ensures seamless multitasking and enhanced data integrity. Equipped with a 1 TB PCI Express 4.0 SSD, users benefit from rapid data access and storage capabilities. The robust thermal performance allows for a wide operating temperature range from 5 °C to 40 °C, providing stability in various environments. The product also features comprehensive security measures, including TPM 2.0 and various lock protections, ensuring data safety and system integrity.

Specifications

General Information
Category	Desktop computers
Description	HP Workstation Z4 G5 - AI Workstation - rack-mountable 1U - 1 x Xeon W W7-2495X / up to 4.8 GHz - RAM 128 GB - SSD 1 TB - HP Z Turbo Drive, TLC, SSD 1 TB - Quadro T400 - Gigabit Ethernet - Win 11 Pro - monitor: none
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Rack-mountable
Dimensions & Weight / Depth	65.4 cm
Dimensions & Weight / Height	4.3 cm
Dimensions & Weight / Weight	9.5 kg
Dimensions & Weight / Width	43.8 cm
Display / Type	None.
Hard Drive / Capacity	1 TB
Hard Drive / Interface	PCI Express 4.0
Hard Drive / Interface Type	PCI Express 4.0
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W790
Mainboard / Processor Socket	FCLGA4677 Socket
Miscellaneous / Product Color	Black Silver
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.5 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	24-core
Processor / Processor Number	W7-2495X
Processor / Type	Xeon W
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	2400 MHz
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	2 TB
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA Quadro T400
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	45 MB
Installed Size	L3 cache - 45 MB
Dimensions & Weight
Depth	65.4 cm
Height	4.3 cm
Weight	9.5 kg
Width	43.8 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	90 cm
JTFpping Height	22 cm
JTFpping Width	59 cm
Environmental Parameters
Humidity Range Operating	8 - 85% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Bays	2 (total) / 2 (free) x external 2.5" / 2xM.2 shared 2 (total) / 2 (free) x internal 2.5" / 2xM.2 shared / 1x3.5"
Interfaces	6 x USB 3.2 Gen 1 (4 front, 2 rear) (one of them is Battery Charging 1.2) 1 x headphones/microphone (1 in front) 1 x LAN (Gigabit Ethernet) (1 rear)
Slots	1 (total) / 0 (free) x PCIe 5.0 x16 (x8 mode) 1 (total) / 1 (free) x PCIe 5.0 x16 1 (total) / 1 (free) x PCIe 5.0 x8 2 (total) / 0 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode (for internal storage))
General
AI Level	AI Workstation
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	Rack-mountable - 1U
Sensors	HP Tamper Lock
Type	Workstation
Graphics Controller
Graphics Processor	NVIDIA Quadro T400
Video Memory	4 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 1 TB
Features	HP Z Turbo Drive, triple-level cell (TLC)
Interface Type	PCI Express 4.0
Type	SSD - M.2
Hard Drive (2nd)
Capacity	1 x 1 TB
Features	HP Z Turbo Drive
Interface Class	PCI Express
Type	SSD - M.2
Input Device
Type	Mouse, no keyboard
Miscellaneous
Compliant Standards	RoHS, FIPS 140-2, Common Criteria EAL4+, ERP, CECP, CEL, WEEE 2002/96/EC, IT ECO Declaration, JEDEC JESD 300-5, DASH 1.2
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor
Monitor
Monitor Type	None.
Mouse
Mouse Name	HP 320M
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), PXE 2.1 support, Intel Active Management Technology (AMT) 16.10
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Anywhere, HP Driver Packs, HP Image Assistant, HP Manageability Integration Kit, HP Cloud Recovery, HP Client Management Script Library (free download), HP Image Assistant Gen5 (free download), HP Client Security Manager Gen7, HP Sure Recover Gen4, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Sure Start Gen7
Optical Storage
Type	No optical drive
Power
Device Type	Power supply
Voltage Required	AC 90-269 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W790
Clock Speed	2.5 GHz
CPU	Intel Xeon W W7-2495X
CPU Qty	1
CPU Socket	FCLGA4677 Socket
CPU Upgradability	Upgradable
Max CPU Qty	1
Max Turbo Speed	4.8 GHz
Number of Cores	24-core
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology 3, Intel Turbo Boost Max 3.0
RAM
Configuration Features	4 x 32 GB
Effective Memory Speed	2400 MHz
Form Factor	DIMM 288-pin
Installed Size	128 GB (installed) / 256 GB (max)
Rated Memory Speed	2400 MHz
Slots	4 (total) / 0 (empty)
Technology	DDR5 SDRAM - ECC
Sustainability Information
EPEAT Compliant	EPEAT Gold
TCO Certified	TCO Certified Desktops 9
