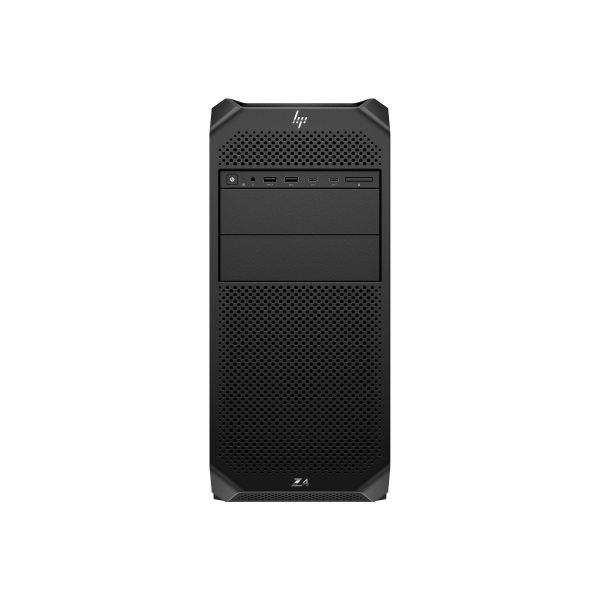

HP Workstation Z4 G5

Be the first to review this product

Availability: Out of stock

SKU

9T856UP#ABA

UPC Code

198122151912

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The HP Z4 G5 Workstation is engineered for high-performance computing, making it an ideal choice for professionals who need reliability and speed. With an Intel Xeon W processor and 32 GB of DDR5 ECC RAM, this workstation ensures seamless multitasking and enhanced data integrity. Equipped with a 1 TB PCI Express 4.0 SSD, users benefit from rapid data access and storage capabilities. The robust thermal performance allows for a wide operating temperature range from 5 °C to 40 °C, providing stability in various environments. The product also features comprehensive security measures, including TPM 2.0 and various lock protections, ensuring data safety and system integrity.

Specifications

General Information
Category	Desktop computers
Description	HP Workstation Z4 G5 - AI Workstation - tower 4U - 1 x Xeon W W5-2465X / up to 4.7 GHz - RAM 64 GB - SSD 2 TB - HP Z Turbo Drive, NVMe, TLC - RTX A5000 - Gigabit Ethernet - Win 11 Pro - monitor: none - black
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
A/V Interface Type	PCI Express 4.0 x16
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	44.45 cm
Dimensions & Weight / Height	38.61 cm
Dimensions & Weight / Weight	10.5 kg
Dimensions & Weight / Width	16.89 cm
Display / Type	None.
Hard Drive / Capacity	2 TB
Hard Drive / Interface	PCI Express 4.0
Hard Drive / Interface Type	PCI Express 4.0
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W790
Mainboard / Processor Socket	LGA4677 Socket-E
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	3.1 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	16-core
Processor / Processor Number	W5-2465X
Processor / Type	Xeon W
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	2400 MHz
RAM / Technology	DDR5 SDRAM
Service & Support / Type	1-year warranty
System / Hard Drive Capacity	2 TB
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX A5000
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	33.75 MB
Installed Size	L3 cache - 33.75 MB
Dimensions & Weight
Depth	44.45 cm
Height	38.61 cm
Weight	10.5 kg
Width	16.89 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	57.2 cm
JTFpping Height	56.3 cm
JTFpping Weight	14.35 kg
JTFpping Width	31.4 cm
Environmental Parameters
Humidity Range Operating	8 - 85% RH (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Bays	2 (total) / 2 (free) x external 5.25" 2 (total) / 2 (free) x internal 3.5"
Interfaces	1 x headphones/microphone (1 front) 10 x USB 3.2 Gen 1 - Type A (4 front, 6 rear) (one of them is Battery Charging 1.2) 1 x audio line-out/line-in (1 rear) 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear) 4 x DisplayPort 1.4a
Slots	1 (total) / 0 (free) x PCIe 5.0 x16 2 (total) / 2 (free) x PCIe 4.0 x4 2 (total) / 2 (free) x PCIe 4.0 x16 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode (for internal storage))
General
AI Level	AI Workstation
Color	Black
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	Tower - 4U
Sensors	HP Tamper Lock
Type	Workstation
Graphics Controller
Bandwidth	768 GBps
Graphics Processor	NVIDIA RTX A5000
Interface Type	PCIe 4.0 x16
Video Interfaces	DisplayPort
Video Memory	24 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 2 TB
Features	HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)
Interface Type	PCI Express 4.0
Type	SSD - M.2
Input Device
Type	Mouse
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 1 year - on-site
Miscellaneous
Compliant Standards	RoHS, FIPS 140-2, Common Criteria EAL4+, ERP, CECP, CEL, WEEE 2002/96/EC, IT ECO Declaration, JEDEC JESD 300-5, DASH 1.2
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), chassis intrusion sensor
Monitor
Monitor Type	None.
Mouse
Mouse Name	HP 128
Technology	Laser
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), Intel Active Management Technology (AMT), PXE 2.1 support
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP Image Assistant, HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Services Scan, HP Sure Start
Optical Storage
Type	No optical drive
Power
Device Type	Power supply
Efficiency	90%
Power Factor Correction	Yes (active)
Voltage Required	AC 90-269 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W790
Clock Speed	3.1 GHz
CPU	Intel Xeon W W5-2465X
CPU Qty	1
CPU Socket	LGA4677 Socket-E
CPU Upgradability	Upgradable
Max CPU Qty	1
Max Turbo Speed	4.7 GHz
Number of Cores	16-core
Processor Main Features	Intel Turbo Boost Technology
RAM
Configuration Features	2 x 32 GB
Effective Memory Speed	2400 MHz
Form Factor	DIMM 288-pin
Installed Size	64 GB (installed) / 512 GB (max)
Rated Memory Speed	2400 MHz
Slots	8 (total) / 6 (empty)
Technology	DDR5 SDRAM
Storage Controller
Channel Qty	5
Controller Interface Type	SATA 6Gb/s
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10
Type	1 x SATA
Sustainability Information
TCO Certified	TCO Certified Desktops 9
