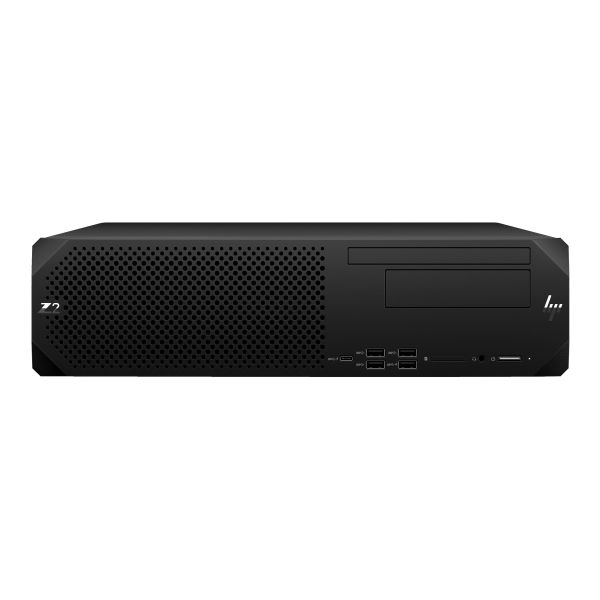

HP Workstation Z2 G9

Be the first to review this product

Availability: Out of stock

SKU

AG0X3EC#ABA

UPC Code

198701136989

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Experience a new level of performance for your professional workflow. The Z2 Tower seamlessly runs multi-threaded apps for fast rendering, simulation, and real-time ray tracing. And when demands change, you have impressive expandability to upgrade.

Specifications

General Information
Category	Desktop computers
Description	HP Workstation Z2 G9 - SFF 1 x Core i7 12700 / up to 4.9 GHz - RAM 32 GB - SSD 512 GB - NVMe - T1000 - Gigabit Ethernet - Win 11 Pro - monitor: none - black
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
A/V Interface Type	PCI Express 3.0 x16
Chassis / Form Factor	Small form factor
Dimensions & Weight / Depth	30.8 cm
Dimensions & Weight / Height	10 cm
Dimensions & Weight / Weight	5 kg
Dimensions & Weight / Width	38.4 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Hard Drive / Interface	PCI Express 4.0
Hard Drive / Interface Type	PCI Express 4.0
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W680
Mainboard / Processor Socket	LGA1700 Socket
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.1 GHz
Processor / Generation	12
Processor / Manufacturer	Intel
Processor / Number of Cores	12-core
Processor / Processor Number	I7-12700
Processor / Type	Core i7
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	2400 MHz
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	512 GB
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA T1000 / Intel UHD Graphics 770
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	25 MB
Installed Size	L3 cache - 25 MB
Dimensions & Weight
Depth	30.8 cm
Height	10 cm
Weight	5 kg
Width	38.4 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	49 cm
JTFpping Height	51.4 cm
JTFpping Weight	5.9 kg
JTFpping Width	19.9 cm
Environmental Parameters
Humidity Range Operating	10 - 85% RH (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Bays	1 (total) / 1 (free) x external 3.5" 1 (total) / 1 (free) x external 5.25" Slim Line 1 (total) / 1 (free) x internal 3.5"
Interfaces	1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) 4 x USB 3.2 Gen 2 (4 in front) (one of them is charging) 1 x USB-C 3.2 Gen 2x2 (1 in front) (charging) 1 x audio line-out (1 rear) 2 x DisplayPort 1.4 (2 rear) 3 x USB 2.0 (3 rear) 3 x USB 3.2 Gen 1 (3 rear) 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear) 4 x Mini DisplayPort
Slots	1 (total) / 0 (free) x PCIe 4.0 x16 1 (total) / 1 (free) x PCIe 3.0 x4 1 (total) / 1 (free) x PCIe 3.0 x16 (PCIe 3.0 x4 mode) 1 (total) / 1 (free) x PCIe 3.0 x1 3 (total) / 2 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) 1 (total) / 1 (free) x M.2 Card - 2230 (PCIe 3.0 x1 mode and Intel CNVi wireless module)
General
Color	Black
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	SFF
Sensors	HP Tamper Lock
Type	Workstation
Graphics Controller
Graphics Processor	NVIDIA T1000 / Intel UHD Graphics 770
Interface Type	PCIe 3.0 x16
Multi-GPU Configuration	1 single GPU card / integrated GPU
Video Interfaces	DisplayPort
Video Memory	8 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 512 GB
Features	NVM Express (NVMe)
Interface Type	PCI Express 4.0
Type	SSD - M.2 2280
Input Device
Type	Mouse, no keyboard
Miscellaneous
Compliant Standards	UL, CB, CCC, FCC, RoHS, FIPS 140-2, WEEE, ICES, CEC, ERP, CECP, CEL, BIS, low halogen
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor
Monitor
Monitor Type	None.
Mouse
Mouse Name	HP 125
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Features	Wake on LAN (WoL), auto-uplink (auto MDI/MDI-X), PXE 2.1 support
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP Image Assistant, HP PC Hardware Diagnostics, HP ZCentral Remote Boost, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Performance Advisor 3.0
Optical Storage
Type	No optical drive
Power
Device Type	Power supply
Efficiency	92%
Power Factor Correction	Yes (active)
Power Provided	550 watt
Processor / Chipset
Chipset Type	Intel W680
Clock Speed	2.1 GHz (P-core) / 1.6 GHz (E-core)
CPU	Intel Core i7 (12th Gen) 12700
CPU Qty	1
CPU Socket	LGA1700 Socket
CPU Upgradability	Upgradable
L2 cache	12 MB
Max CPU Qty	1
Max Turbo Speed	4.9 GHz (P-core) / 3.6 GHz (E-core)
Number of Cores	12-core
Processor Main Features	Intel Turbo Boost Technology
RAM
Configuration Features	2 x 16 GB
Effective Memory Speed	2400 MHz
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 128 GB (max)
Rated Memory Speed	2400 MHz
Slots	4 (total) / 2 (empty)
Technology	DDR5 SDRAM
Storage Controller
Channel Qty	4
Controller Interface Type	SATA 6Gb/s / PCIe 4.0 x4 (NVMe)
RAID Level	RAID 0, RAID 1
Type	1 x SATA/NVMe
